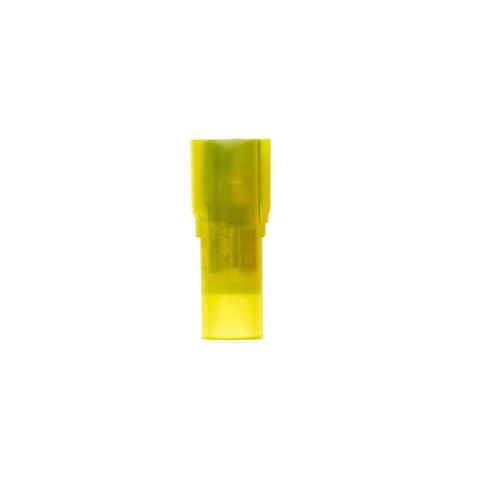

3M Scotchlok Female Disconnect Terminal 12-10 AWG Vinyl Insulated Wire Connector

3M Scotchlok Female Disconnect Terminal 12-10 AWG Vinyl Insulated Wire Connector

Professional Quick-Disconnect Wire Connection Solution

The 3M Scotchlok Female Disconnect Terminal delivers reliable wire connection and disconnection for 12-10 AWG conductors. Featuring yellow vinyl insulation with an interlocking barrel design and funnel-shaped polyvinyl chloride sleeve, this professional-grade terminal ensures secure connections with 0.25-inch wide male tabs. The ETP copper construction with butted seam design provides excellent conductivity and holding force for demanding electrical applications.

Professional Features & Benefits

• 12-10 AWG Wire Compatibility: Accommodates standard wire gauges for versatile electrical connection applications
• 600V Maximum Voltage Rating: Supports high-voltage applications with reliable insulation protection
• Interlocking Barrel Design: Provides secure mechanical connection with excellent holding force through dents and rolled edges
• Yellow Vinyl Insulation: Offers clear visual identification and protection up to 221�F operating temperature
• 0.25-inch Tab Compatibility: Mates precisely with standard male tab widths for consistent connections
• ETP Copper Construction: Ensures excellent electrical conductivity and corrosion resistance
• Funnel-Designed Sleeve: Facilitates easy wire insertion and professional installation

Technical Specifications

• Barrel Inside Diameter: 0.128 Inch
• Barrel Length Imperial: 0.25 Inch
• Barrel Style: Interlocking Barrel
• Color Family Incorporate Product Color: Yellow
• Conductor Size: 12 - 10 AWG
• Connection Type: Wire
• Connection Width Imperial: 0.25 in
• Connection Width Metric: 6.35 mm
• Connector Connector Tool: Connector
• Connector Style: Insulation Displacement
• Diameter D: 0.23 Inch
• Disconnect Type: Female
• Fastener Orientation: Female
• Flame Retardant: No
• Fork Type: Standard Fork
• Grease Filling Against Corrosion: No
• Insulation Color: Yellow
• Insulation Material: Vinyl
• Insulation Outer Diameter Metric: 3.68 mm
• Interrupt Free Shifting: No
• Manufacturer Catalog Number: 7000133403
• Manufacturing Origin: USA
• Mates With Female Width: 0.250 Inch
• Mates With Male Tab Width W: 0.25 Inch
• Maximum Conductor Size: 10 AWG
• Maximum Insulation Outer Diameter Imperial: 0.250 Inch
• Maximum Insulation Outer Diameter Metric: 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature Celsius: 105 Degree Celsius
• Maximum Operating Temperature Fahrenheit: 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Wire Gauge: 10 AWG
• Minimum Conductor Size: 12 AWG
• Minimum Wire Gauge: 12 AWG
• Overall Diameter Imperial: 0.23 in
• Overall Length Imperial: 0.95 in
• Overall Length Metric: 24.13 mm
• Overall Width Imperial: 0.37 in
• Package Height: 4.37500 in
• Package Length: 1.62500 in
• Package Weight: 0.2500 LBS
• Pad Width: 0.25 in
• Product Material: ETP Copper
• Terminal Style: Standard
• Terminal Type: Standard

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Control Circuit Wiring
• Equipment Disconnect Applications
• Maintenance and Service Connections
• Industrial Control Systems
• Commercial Electrical Installations
• Automotive and Marine Wiring

Why Choose 3M Quality?

3M Scotchlok terminals deliver proven reliability with USA manufacturing quality and ETP copper construction. The vinyl insulation system provides dependable protection up to 221�F operating temperature, while the interlocking barrel design ensures secure connections for professional electrical applications requiring quick disconnect capability.
