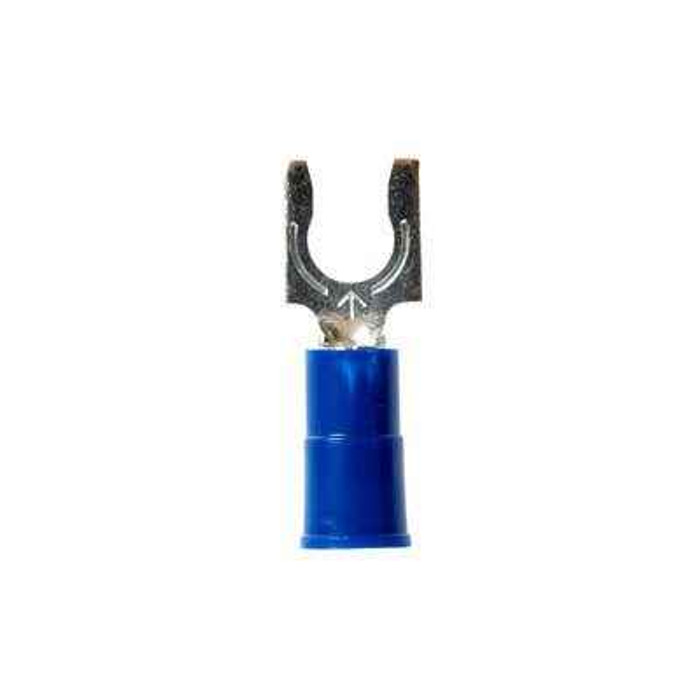

Scotchlok MV14-10FX 3M Fork Vinyl Insulated, 100/bottle, MV14-10FX

Scotchlok Fork Terminal 16-14 AWG Blue Vinyl Insulated #10 Stud 100-Pack

(No reviews yet) Write a Review

Model: MV14-10FX
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.46
$46.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Scotchlok Fork Terminal 16-14 AWG Blue Vinyl Insulated #10 Stud 100-Pack

Professional Color-Coded Electrical Connection Terminal

The Scotchlok Fork Terminal delivers reliable electrical connections for 16-14 AWG wire applications with its blue vinyl-insulated, brazed-seam barrel construction. This professional-grade terminal features electrolytic copper construction with tin-plated finish for superior conductivity and corrosion resistance, accommodating #10 stud connections with a wider tongue design for free-standing stud applications.

Professional Features & Benefits

  • 16-14 AWG Wire Compatibility: Accommodates standard building wire sizes with secure crimped connections for versatile electrical applications.
  • 600V Rating: Provides reliable voltage handling for building wire applications with additional 1000V rating for signs and fixtures.
  • Blue Color Coding: Enables quick wire gauge identification and reduces installation errors in complex wiring projects.
  • Brazed-Seam Barrel: Ensures secure mechanical connection and long-term reliability in demanding electrical environments.
  • Temperature Range -40�F to 221�F: Withstands extreme temperature conditions for indoor and outdoor electrical installations.
  • UL Listed & CSA Certified: Meets rigorous safety standards for professional electrical work and code compliance.
  • ETP Copper Construction: Delivers excellent electrical conductivity with tin-plated finish for enhanced corrosion resistance.

Technical Specifications

  • 3m Id: 80611458870
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Clearance C : 0.29 Inch
  • Conductor Size: 16 - 14 AWG
  • Conductor Sizes: 16 - 14 AWG
  • Csa File Number: LR22190
  • Dimension E: 0.74 Inch
  • Insulation Material: Vinyl
  • Length Metric : 22.86 mm
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • Maximum Operating Temperature Celsius : 105 Degree Celsius
  • Maximum Operating Temperature Fahrenheit : 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Wire Gauge: 16 AWG
  • Packaging: 100 per bottle
  • Product Brand: Scotchlok�
  • Product Color: Blue
  • Product Length: 0.9 Inch
  • Product Material: ETP Copper
  • Product Width: 0.34 Inch
  • Rohs 2011 65 Eu Compliant: Yes
  • Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
  • Solution For: Wireless Network: Infrastructure Accessories
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Fork
  • Thickness: 0.03 Inch
  • Thickness Metric : 0.76 mm
  • Trademark: Scotchlok
  • Ul File Number: E23438
  • Width Metric : 8.6 mm

Professional Applications

  • Residential Electrical Installations
  • Commercial Building Wiring
  • Industrial Control Panels
  • Electrical Panel Connections
  • Sign and Fixture Wiring
  • Wireless Network Infrastructure
  • Maintenance and Repair Projects

Why Choose Scotchlok Quality?

Scotchlok terminals deliver proven reliability with UL Listed and CSA Certified safety approvals, ensuring code compliance and professional performance. The RoHS 2011/65/EU compliant construction and temperature range of -40�F to 221�F provide dependable service in demanding electrical applications, backed by the trusted Scotchlok brand quality.

Manufacturer Resources

Product Specs

3m Id:
80611458870
Agency Approvals:
UL and CSA
Barrel Style:
Brazed
Clearance C :
0.29 Inch
Conductor Size:
16 - 14 AWG
Conductor Sizes:
16 - 14 AWG
Csa File Number:
LR22190
Dimension E:
0.74 Inch
Insulation Material:
Vinyl
Length Metric :
22.86 mm
Maximum Insulation Outer Diameter:
0.170 Inch
Maximum Operating Temperature Celsius :
105 Degree Celsius
Maximum Operating Temperature Fahrenheit :
221 Degree Fahrenheit
Maximum Recommended Voltage Rating:
600 V
Maximum Wire Gauge:
14 AWG
Minimum Wire Gauge:
16 AWG
Packaging:
100 per bottle
Product Brand:
Scotchlok™
Product Color:
Blue
Product Length:
0.9 Inch
Product Material:
ETP Copper
Product Width:
0.34 Inch
Rohs 2011 65 Eu Compliant:
Yes
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Solution For:
Wireless Network: Infrastructure Accessories
Stud Size:
#10
Terminal Style:
Standard
Terminal Type:
Fork
Thickness:
0.03 Inch
Thickness Metric :
0.76 mm
Trademark:
Scotchlok
Ul File Number:
E23438
Width Metric :
8.6 mm

Scotchlok MV14-10FX – Frequently Asked Questions

1) What wire sizes does the blue Scotchlok fork terminal crimp onto?
16 to 14 AWG. The blue vinyl barrel is color coded for that range, and it accepts conductor insulation up to 0.170 inch outside diameter, so heavily jacketed or double insulated wire in that gauge may not seat in the barrel.
2) Is this terminal rated for 600V building wire, and can I use it on sign and fixture wiring?
Maximum recommended voltage is 600V, which covers normal building wire and control panel work. The description also gives a 1000V rating for signs and fixtures. UL Listed under file E23438 and CSA certified under LR22190.
3) Should I use a fork terminal or a ring terminal on a panel stud?
A fork (spade) terminal like the MV14-10FX goes on and comes off without backing the nut all the way out, which is why it is the common choice on free standing studs and screw terminal strips you expect to service. A ring terminal is captive and will not shake loose if the nut backs off, so it is the better pick on vibration prone equipment or where a code or spec calls for a closed loop. Both land on the same #10 hardware.
4) Can these blue vinyl terminals go in a hot control panel or an outdoor enclosure?
Maximum operating temperature is 105 C (221 F), and the vinyl insulation is rated down to -40 F per the product description, so unheated outdoor enclosures and typical control panel interiors are within range. Anything running above 105 C at the terminal needs a nylon or heat shrink insulated terminal instead.
5) Do I need a special crimper for these vinyl insulated fork terminals?
Use an insulated terminal crimper set to the blue 16-14 AWG nest. The vinyl insulated barrel is crimped through the insulation, so a non-insulated (open barrel) die will cut the sleeve and leave the crimp unsupported. Strip to suit the 0.9 inch overall terminal and seat the conductor fully into the barrel before crimping.
6) What is the Scotchlok fork terminal barrel made of, and will it hold up in a damp location?
The barrel is ETP (electrolytic tough pitch) copper with a tin plated finish, and the seam is brazed rather than butted. Tin plating over copper resists corrosion and keeps contact resistance stable, which is why these are used in damp commercial and industrial enclosures. The construction is RoHS 2011/65/EU compliant without exemption.
7) How many Scotchlok MV14-10FX terminals come in a pack?
100 per bottle. For MRO stockrooms running multiple gauges, note the blue barrel is the 16-14 AWG size only; 22-16 AWG and 12-10 AWG runs need the red and yellow equivalents, so standardizing a panel shop means stocking the color per gauge rather than one bottle for everything.
