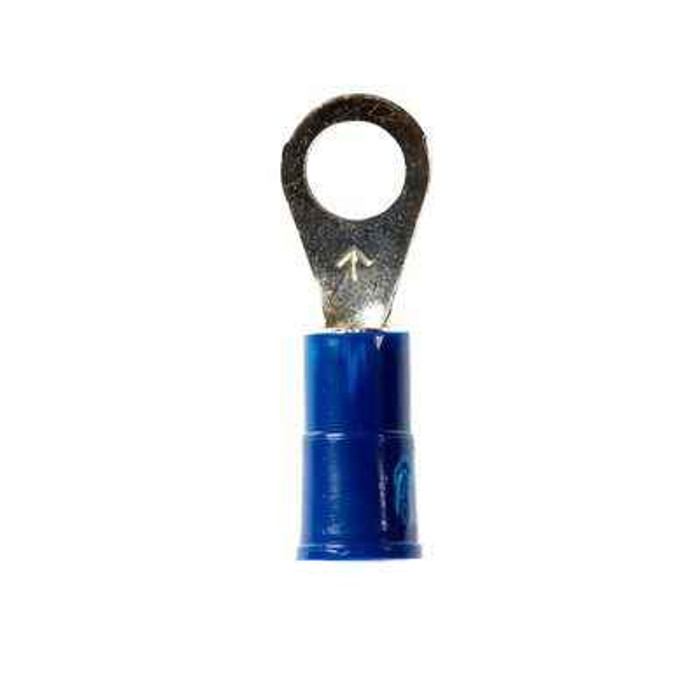

Scotchlok MV14-10R/LX 3M Ring Vinyl Insulated, 100/bottle, MV14-10R/LX

Scotchlok Ring Terminal Vinyl Insulated 16-14 AWG #10 Stud Blue 600V Professional Grade, 100 Pack

(No reviews yet) Write a Review

Model: MV14-10R/LX
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.39
$40.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Scotchlok Ring Terminal Vinyl Insulated 16-14 AWG #10 Stud Blue 600V Professional Grade

Professional-grade vinyl insulated ring terminals for reliable electrical connections

Scotchlok Ring Terminal Vinyl Insulated delivers professional performance for electrical connections with 16-14 AWG wire compatibility and #10 stud size. The blue vinyl-insulated terminal features a brazed-seam barrel construction with electrolytic copper for excellent conductivity and tin-plated finish for corrosion resistance. Operating reliably from -40�F to 221�F with 600V rating, these UL Listed and CSA Certified terminals provide secure connections for building wire applications.

Professional Features & Benefits

  • 16-14 AWG Wire Compatibility: Accommodates standard building wire sizes with secure connection for versatile electrical applications.
  • 600V Rating: Provides reliable performance for building wire applications with professional voltage capacity.
  • Brazed-Seam Barrel Construction: Ensures secure wire connection and long-term reliability in demanding electrical environments.
  • Electrolytic Copper with Tin Plating: Delivers excellent conductivity while resisting corrosion for extended service life.
  • Wide Temperature Range: Operates reliably from -40�F to 221�F for diverse environmental conditions.
  • UL Listed and CSA Certified: Meets rigorous safety standards for professional electrical installations.
  • Funnel-Designed Sleeve: Polyvinyl chloride sleeve enables easy wire insertion for efficient installation.

Technical Specifications

  • 3m Id: 80611458946
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Clearance C : 0.33 Inch
  • Conductor Size: 16 - 14 AWG
  • Conductor Sizes: 16 - 14 AWG
  • Csa File Number: LR22190
  • Dimension E: 0.78 Inch
  • Insulation Material: Vinyl
  • Length Metric : 23.62 mm
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • Maximum Operating Temperature Celsius : 105 Degree Celsius
  • Maximum Operating Temperature Fahrenheit : 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Wire Gauge: 16 AWG
  • Operating Temperature Range Celsius : -40 �C to 105 �C
  • Operating Temperature Range Fahrenheit : -40 �F to 221 �F
  • Packaging: 100 per bottle
  • Product Brand: Scotchlok�
  • Product Color: Blue
  • Product Length: 0.93 Inch
  • Product Material: Plastic
  • Product Type: Standard
  • Product Width: 0.31 Inch
  • Rohs 2011 65 Eu Compliant: Yes
  • Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
  • Solution For: Wireless Network: Infrastructure Accessories
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.03 Inch
  • Thickness Metric : 0.76 mm
  • Trademark: Scotchlok
  • Ul File Number: E23438
  • Width Metric : 7.87 mm

Professional Applications

  • Residential Electrical Systems
  • Commercial Building Wiring
  • Industrial Control Panels
  • Electrical Equipment Connections
  • Motor Control Centers
  • Distribution Panel Connections
  • Maintenance and Repair Applications

Why Choose Scotchlok Quality?

Scotchlok terminals deliver proven reliability with UL Listed and CSA Certified performance standards. The electrolytic copper construction with tin-plated finish ensures long-term durability and corrosion resistance, while the wide operating temperature range from -40�F to 221�F provides dependable performance across diverse environmental conditions.

Manufacturer Resources

Product Specs

3m Id:
80611458946
Agency Approvals:
UL and CSA
Barrel Style:
Brazed
Clearance C :
0.33 Inch
Conductor Size:
16 - 14 AWG
Conductor Sizes:
16 - 14 AWG
Csa File Number:
LR22190
Dimension E:
0.78 Inch
Insulation Material:
Vinyl
Length Metric :
23.62 mm
Maximum Insulation Outer Diameter:
0.170 Inch
Maximum Operating Temperature Celsius :
105 Degree Celsius
Maximum Operating Temperature Fahrenheit :
221 Degree Fahrenheit
Maximum Recommended Voltage Rating:
600 V
Maximum Wire Gauge:
14 AWG
Minimum Wire Gauge:
16 AWG
Operating Temperature Range Celsius :
-40 °C to 105 °C
Operating Temperature Range Fahrenheit :
-40 °F to 221 °F
Packaging:
100 per bottle
Product Brand:
Scotchlok™
Product Color:
Blue
Product Length:
0.93 Inch
Product Material:
Plastic
Product Type:
Standard
Product Width:
0.31 Inch
Rohs 2011 65 Eu Compliant:
Yes
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Solution For:
Wireless Network: Infrastructure Accessories
Stud Size:
#10
Terminal Style:
Standard
Terminal Type:
Ring
Thickness:
0.03 Inch
Thickness Metric :
0.76 mm
Trademark:
Scotchlok
Ul File Number:
E23438
Width Metric :
7.87 mm

Scotchlok MV14-10R/LX – Frequently Asked Questions

1) What wire size does the blue Scotchlok vinyl insulated ring terminal take?
16 to 14 AWG. Blue is the standard color code for that range, which is why the barrel is blue vinyl. The insulation sleeve accepts wire with an outer diameter up to 0.170 inch, so THHN and standard building wire in 16 and 14 AWG feeds in without stripping back the jacket further than normal. Run 12 AWG into it and the barrel will not crimp down properly.
2) Are these ring terminals UL Listed for an inspected commercial job?
UL and CSA both. The Scotchlok MV14-10R carries UL file E23438 and CSA file LR22190, which is what an inspector or a spec writer wants to see cited on a commercial or institutional install. They are also RoHS 2011/65/EU compliant without exemption.
3) Can I use these Scotchlok ring terminals in a 480V motor control center?
No. The MV14-10R carries a maximum recommended voltage rating of 600 V, which covers 120, 208, 240, and 480 V circuits, so a 480 V MCC is within rating. The limit to watch is the wire size, not the voltage: at 16-14 AWG this is a control wiring terminal, not a power feeder lug. Use it on control circuits, interlocks, and instrument leads inside the MCC.
4) Will these terminals hold up in an unheated warehouse or a rooftop unit?
The operating range on the MV14-10R runs -40 to 221 degrees F (-40 to 105 degrees C), so an unconditioned warehouse, a rooftop RTU control cabinet, or a walk-in cooler are all inside the envelope. The vinyl sleeve is the temperature-limiting part; the barrel underneath is brazed seam.
5) Do I need a special crimper for vinyl insulated ring terminals like these?
Yes, an insulated terminal crimper. Vinyl insulated terminals are crimped through the sleeve with a color-coded insulated-barrel die, not with the bare-terminal nest on an uninsulated crimper. Use the blue die position, which matches the 16-14 AWG range on the MV14-10R. A bare-terminal die will cut the sleeve and leave the copper exposed at the stud.
6) Should I use a ring terminal or a spade terminal on a control panel screw?
Use a ring where the connection must not back off, which is most panel and equipment work. A ring terminal is a closed loop, so it cannot slide off a loosening screw the way a fork or spade can. A spade is faster to service because you can slack the screw and pull the wire without removing the nut, which is why some techs prefer it on frequently changed test points. The MV14-10R is the closed ring version, sized for a #10 stud.
7) What does a brazed seam barrel get me over a plain rolled ring terminal?
A brazed seam means the barrel is closed and joined rather than left as an open butt seam. Under crimp pressure the barrel cannot spring open along the seam, which is what causes intermittent connections on vibrating equipment like motor starters and panel doors. On the MV14-10R the barrel is electrolytic copper with tin plating for corrosion resistance.
8) How many Scotchlok MV14-10R ring terminals come in a pack?
100 per bottle. The bottle packaging is the point for a van or a panel shop, since the terminals stay sorted by size instead of loose in a drawer. Order by MPN MV14-10R/LX.
9) Will the ring on this terminal clear a #10 nut and washer without shorting to the next lug?
The ring measures 0.33 inch across the barrel clearance and the tongue is 0.31 inch wide, with a 0.03 inch (0.76 mm) thickness at the ring. That is a thin, compact tongue, so it stacks under a #10 nut without adding much height and does not overhang far onto adjacent terminals on tight-pitch blocks. Total terminal length is 0.93 inch, which is the reach you need behind the lug for the wire.
