3M Scotchlok Fork Terminal Vinyl Insulated 12-10 AWG #8 Stud with Wider-Tongue Design

3M Scotchlok Fork Terminal Vinyl Insulated 12-10 AWG #8 Stud with Wider-Tongue Design

Professional electrical connections with enhanced stud compatibility

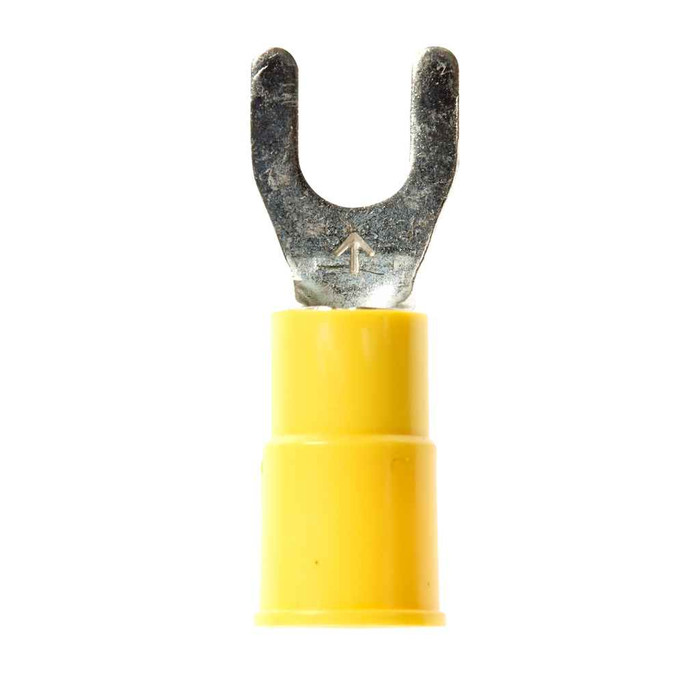

The 3M Scotchlok Fork Terminal delivers reliable electrical connections for 12-10 AWG conductors with #8 stud compatibility. Featuring yellow vinyl insulation and a brazed-seam barrel construction, this terminal provides secure connections for professional electrical applications. The wider-tongue design enhances compatibility with free-standing studs, while the funnel-designed polyvinyl chloride sleeve facilitates easy wire insertion.

Professional Features & Benefits

• 12-10 AWG Conductor Range: Accommodates standard wire sizes for versatile electrical connection applications
• #8 Stud Compatibility: Designed for secure attachment to #8 studs with wider-tongue design for enhanced fit
• Brazed-Seam Barrel: Ensures secure conductor grip and reliable long-term electrical performance
• Yellow Vinyl Insulation: Provides electrical isolation and easy visual identification in electrical panels
• Funnel-Designed Sleeve: Polyvinyl chloride construction offers easy wire insertion and secure connection
• USA Manufacturing: Manufactured in USA ensuring consistent quality and reliable performance standards

Technical Specifications

• Barrel Inside Diameter: 0.135 Inch
• Barrel Style: Brazed
• Clearance C : 0.29 Inch
• Conductor Size: 12 - 10 AWG
• Dimension E: 0.84 Inch
• Fork Type: Standard
• Insulation Material: Vinyl
• Manufacturer Catalog Number: 7010351173
• Manufacturing Origin: USA
• Maximum Conductor Size: 10 AWG
• Maximum Insulation Outer Diameter Imperial : 0.250 Inch
• Minimum Conductor Size: 12 AWG
• Overall Length Imperial : 1.03 in
• Overall Width Imperial : 0.38 in
• Package Height: 4.37500 in
• Package Length: 1.62500 in
• Package Weight: 0.2700 LBS
• Stud Size: #8
• Terminal Style: Standard
• Terminal Type: Fork

Installation & Operation

1. Strip conductor insulation to appropriate length ensuring clean copper exposure for optimal connection.
2. Insert stripped conductor into the funnel-designed sleeve until fully seated in the brazed barrel.
3. Crimp the terminal using appropriate crimping tool to manufacturer specifications for secure connection.
4. Position the fork terminal over the #8 stud ensuring proper alignment with the wider-tongue design.
5. Secure the terminal to the stud using appropriate fastener torque specifications for the application.
6. Verify connection integrity and ensure proper electrical continuity before energizing the circuit.

Professional Applications

• Electrical Panel Connections
• Control Cabinet Wiring
• Industrial Equipment Terminations
• Commercial Electrical Systems
• Maintenance and Repair Operations
• Electrical Distribution Systems

Why Choose 3M Quality?

3M Scotchlok terminals provide proven reliability with USA manufacturing standards and consistent quality control. The brazed-seam barrel construction and vinyl insulation deliver long-term performance in professional electrical applications, backed by 3M's commitment to electrical connection excellence.
