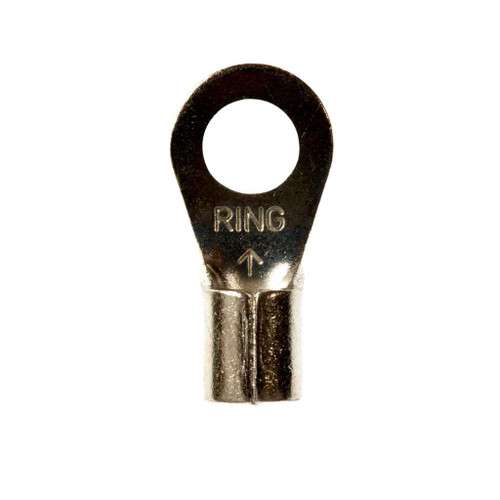

Scotchlok High Temperature Ring Terminal 6 AWG 3/8 Inch Stud Non-Insulated Steel Construction

Scotchlok High Temperature Ring Terminal 6 AWG 3/8 Inch Stud Non-Insulated Steel Construction

Professional high-temperature electrical connections for demanding applications

Scotchlok High Temperature Ring Terminal delivers reliable electrical connections in extreme temperature environments up to 900�F (482�C). This professional-grade terminal features non-insulated butted-seam barrel construction with steel material and nickel-plated finish for superior durability and corrosion resistance. Designed for 6 AWG conductors with 3/8 inch stud compatibility, this terminal ensures secure connections in ovens, motors, light fixtures and other high-temperature applications.

Professional Features & Benefits

• 900�F Temperature Rating: Withstands extreme heat conditions for reliable performance in high-temperature applications like ovens and industrial equipment.
• Steel Construction with Nickel Plating: Provides exceptional durability and corrosion resistance for long-lasting electrical connections.
• Non-Insulated Butted-Seam Barrel: Ensures secure wire fit and reliable electrical contact with beveled mouth for easy wire insertion.
• 6 AWG Conductor Compatibility: Precisely engineered for 6 AWG wire size with 3/8 inch stud mounting capability.
• 600V/1000V Rating: Rated for 600V building wire applications and 1000V for signs, fixtures, and luminaires.
• RoHS Compliant: Meets RoHS 2011/65/EU compliance standards without exemption for environmental responsibility.

Technical Specifications

• 3m Id: 80610051783
• Barrel Length: 0.39 Inch
• Barrel Style: Butted
• Clearance C : 0.52 Inch
• Conductor Size: 6 AWG
• Dimension E: 0.91 Inch
• Insulation Material: Non-Insulated
• Packaging: 200 per bulk box
• Product Brand: Scotchlok
• Product Length: 1.22 Inch
• Product Material: Steel
• Product Width: 0.63 Inch
• Rohs 2011 65 Eu Compliant: Yes
• Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
• Solution For: Wireless Network: Infrastructure Accessories
• Stud Size: 3/8 Inch
• Terminal Style: High Temp
• Terminal Type: High Temperature, Ring
• Thickness: 0.05 Inch
• Trademark: Scotchlok

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Ovens and High-Temperature Equipment
• Motor Control and Power Distribution
• Light Fixtures and Luminaire Connections
• Commercial Kitchen Equipment
• HVAC System Connections
• Wireless Network Infrastructure
• Sign and Display Electrical Systems

Why Choose Scotchlok Quality?

Scotchlok terminals deliver proven reliability with steel construction and nickel-plated finish ensuring long-term performance. RoHS compliance and USA manufacturing origin demonstrate commitment to quality standards. The 200-piece bulk packaging provides cost-effective solutions for professional electrical installations requiring high-temperature performance.
