Scotchlok Ring Terminal Non-Insulated 12-10 AWG #8 Stud Brazed Barrel

Scotchlok Ring Terminal Non-Insulated 12-10 AWG #8 Stud Brazed Barrel

Professional electrical connections with reliable brazed-seam construction

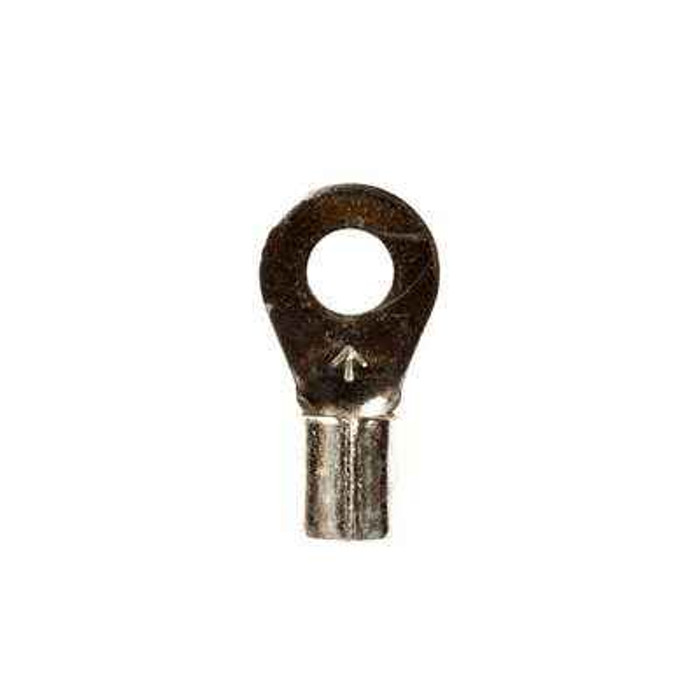

Scotchlok Ring Terminal Non-Insulated delivers secure electrical connections for 12-10 AWG conductors with #8 stud compatibility. The brazed-seam barrel construction ensures reliable performance, while the beveled mouth design guides wire insertion for professional installations. Built with electrolytic copper and tin plating for optimal conductivity and corrosion resistance.

Professional Features & Benefits

• 12-10 AWG Conductor Range: Accommodates standard building wire sizes for versatile electrical connections and broad application compatibility.
• #8 Stud Size: Standard ring tongue design fits securely around #8 studs for reliable mechanical and electrical connection.
• Brazed-Seam Barrel: Non-insulated brazed construction provides secure wire grip and consistent electrical performance over time.
• Electrolytic Copper with Tin Plating: Superior conductivity with corrosion-resistant finish ensures long-term reliability in various environments.
• 347�F Temperature Rating: Withstands high operating temperatures for demanding electrical applications and safety compliance.
• UL Listed and CSA Certified: Meets rigorous safety standards for professional electrical installations and code compliance.
• Beveled Mouth Design: Guides wire insertion for easier installation and consistent crimping results.

Technical Specifications

• 3m Id: 80611458599
• Agency Approvals: UL and CSA
• Barrel Style: Brazed
• Clearance C : 0.29 Inch
• Conductor Size: 12 - 10 AWG
• Csa File Number: LR22190
• Dimension E: 0.54 Inch
• Insulation Material: Non-Insulated
• Packaging: 50 per bottle
• Product Length: 0.73 Inch
• Product Width: 0.38 Inch
• Rohs 2011 65 Eu Compliant: Yes
• Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
• Stud Size: #8
• Terminal Style: Standard
• Terminal Type: Ring
• Thickness: 0.04 Inch
• Trademark: Scotchlok
• Ul File Number: E23438

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical panels and distribution systems
• Commercial building electrical connections
• Industrial control panel wiring
• Motor control and power distribution
• Electrical equipment grounding connections
• Sign and fixture installations rated up to 1000V
• Building wire applications rated up to 600V

Why Choose Scotchlok Quality?

Scotchlok terminals deliver proven reliability with UL Listed and CSA Certified safety compliance. The electrolytic copper construction with tin plating ensures optimal conductivity and corrosion resistance, while the 347�F temperature rating provides performance confidence in demanding applications. RoHS 2011/65/EU compliance supports environmental responsibility in professional electrical installations.
