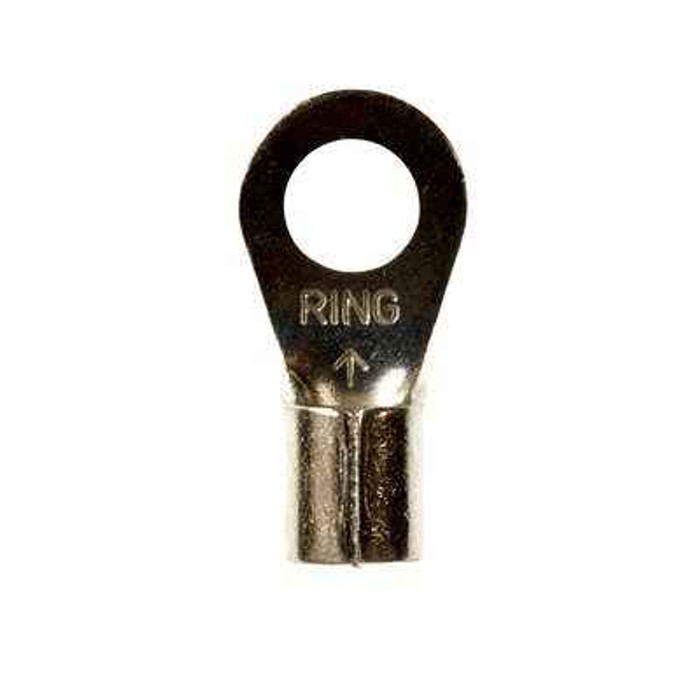

Scotchlok Ring Terminal Non-Insulated Brazed Seam 8 AWG 3/8 Inch Stud Professional Electrical Connector

Scotchlok Ring Terminal Non-Insulated Brazed Seam 8 AWG 3/8 Inch Stud Professional Electrical Connector

Professional-grade electrical connection solution with UL Listed reliability

The Scotchlok Ring Terminal delivers secure electrical connections for professional applications requiring 8 AWG wire capacity and 3/8 inch stud compatibility. Featuring electrolytic copper construction with tin plating for superior conductivity and corrosion resistance, this non-insulated brazed seam terminal ensures reliable performance in demanding electrical installations. The beveled mouth design facilitates easy wire insertion while the ring configuration provides the safest connection method that cannot be removed without screw removal.

Professional Features & Benefits

• 8 AWG Conductor Capacity: Accommodates standard 8 AWG wire for versatile electrical connection applications
• 3/8 Inch Stud Size: Standard stud compatibility ensures broad application versatility across electrical systems
• Brazed Seam Construction: Non-insulated brazed barrel design provides secure fit and reliable long-term performance
• Electrolytic Copper with Tin Plating: Superior conductivity with corrosion-resistant finish for extended service life
• UL Listed & CSA Certified: Professional agency approvals ensure code compliance and safety standards
• High Temperature Rating: Withstands maximum temperature of 347�F (175�C) for demanding applications
• Beveled Mouth Design: Guides wire into position for easier installation and secure connection

Technical Specifications

• 3m Id: 80610051288
• Agency Approvals: UL and CSA
• Barrel Length: 0.31 Inch
• Barrel Style: Brazed
• Clearance C : 0.45 Inch
• Conductor Size: 8 AWG
• Csa File Number: LR22190
• Dimension E: 0.77 Inch
• Insulation Material: Non-Insulated
• Packaging: 200 per bulk box
• Product Brand: Scotchlok
• Product Length: 1.06 Inch
• Product Width: 0.59 Inch
• Rohs 2011 65 Eu Compliant: Yes
• Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
• Stud Size: 3/8 Inch
• Terminal Style: Standard
• Terminal Type: Ring
• Thickness: 0.05 Inch
• Trademark: Scotchlok
• Ul File Number: E23438

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Motor Control Centers
• Industrial Equipment Wiring
• Commercial Building Systems
• Control Circuit Applications
• Grounding and Bonding Connections
• Maintenance and Repair Operations

Why Choose Scotchlok Quality?

Scotchlok terminals provide professional-grade reliability backed by UL Listed and CSA Certified approvals, ensuring code compliance and safety standards. The electrolytic copper construction with tin plating delivers superior conductivity and corrosion resistance, while the 347�F temperature rating and RoHS compliance demonstrate commitment to performance and environmental responsibility in demanding electrical applications.
