3M Temflex Rubber Splicing Tap...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$8.48

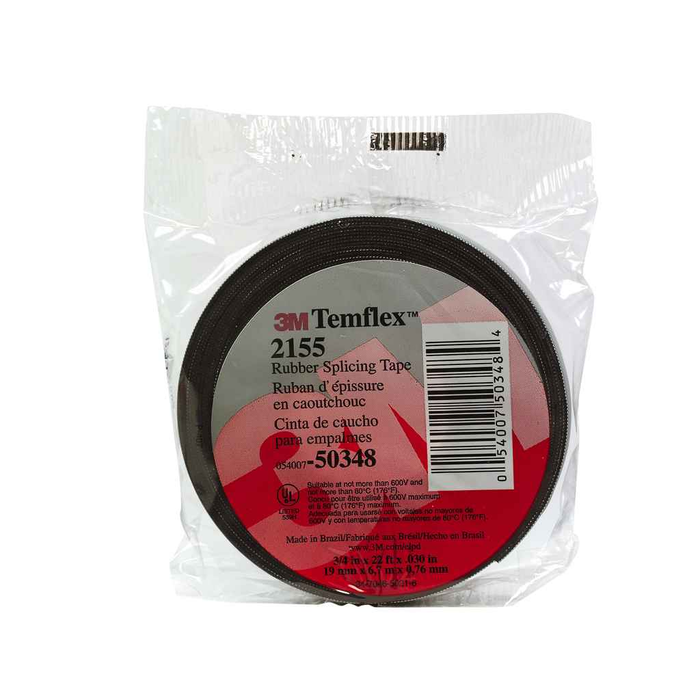

3M Temflex Rubber Splicing Tape 2155, 22 ft

3M Temflex Rubber Splicing Tape 2155, 22 ft

(No reviews yet) Write a Review

Model: 7000089970

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M, Temflex, Rubber Splicing Tape 2155, 1-1/2 in x 22 ft, Black, 45 rolls/Case

  • Features

    • Withstands temperatures up to 176 °F (80 °C)
    • Rubber resin provides excellent adherence
    • Self-fusing rubber backing offers durability and resists tears as well as abrasion
    • UL Listed and RoHS 2011/65/EU Compliant


7000090115 - spec sheet

Manufacturer Resources

Product Specs

Adhesive Type:
Non-adhesive
Dielectric Strength:
600.0 V/mil
Etim Class 8 0:
EC000128
Voltage Rating:
600V
Total Tape Thickness Without Liner Imperial:
30.0 mil
Overall Length Imperial:
22.0 ft
Backing Carrier Material:
Rubber
Total Tape Thickness Without Liner Metric:
0.76 mm
Elongation At Break:
700.00%
Tensile Strength Imperial:
300.0 lb/in
Maximum Operating Temperature Celsius:
80.0 Degree
Maximum Operating Temperature Fahrenheit:
176.0 Degree
Etim Class 7 0:
EC000128
Department:
Electrical
Tensile Strength Metric:
2068.4 kPa
Country Of Origin:
Brazil
Product Type:
Rubber Splicing Tape
Product Group:
Cable Management & Identification
Product Subgroup:
Electrical Tape

3M 7000089970 – Frequently Asked Questions

1) Why does Temflex 2155 splicing tape have no adhesive on it?
It is a self-fusing rubber tape, listed as non-adhesive with a rubber backing. You stretch it as you wrap and the layers fuse into a single solid rubber mass over the splice. That is what makes the moisture seal. It is not a substitute for vinyl electrical tape, which is what you overwrap it with for mechanical and abrasion protection.
2) How hot can 3M 2155 rubber splicing tape get before it fails?
80 degrees C (176 degrees F) is the maximum operating temperature. That suits conduit runs, junction boxes and motor terminations at normal loads, but it is under-rated for high-temperature motor leads or anything sitting against a heat source above that.
3) What widths does 3M Temflex 2155 come in and which should I use?
Two widths: 3/4 inch (MPN 7000089970) and 1-1/2 inch (MPN 7000090115), both 22 ft per roll. Use 3/4 inch for small conductor splices and irregular shapes where you need to conform tightly; the 1-1/2 inch covers larger cable splices and bus work in fewer passes.
4) Will rubber splicing tape stretch enough to pad out an irregular connector?
It will. Temflex 2155 has 700 percent elongation at break and 300 lb/in tensile strength, so you can stretch it hard over lugs, split bolts and connector edges to build up a smooth void-free layer without tearing. Standard practice is to stretch to roughly half its width while wrapping.
5) Is 3M Temflex 2155 UL Listed and RoHS compliant for a spec job?
Yes, it is UL Listed and compliant with RoHS 2011/65/EU. Useful where a submittal requires listed insulating materials on splices.
6) Can I use rubber splicing tape by itself, or do I need vinyl tape over it?
Overwrap it. The 2155 supplies the insulation and the moisture seal, but the rubber surface stays tacky and has no abrasion resistance built for handling, so a vinyl electrical tape jacket goes over the top on any splice that gets pulled into conduit or handled. The 600V rating applies to the rubber layer itself.
