3M Scotch 130C Linerless Rubbe...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$38.24

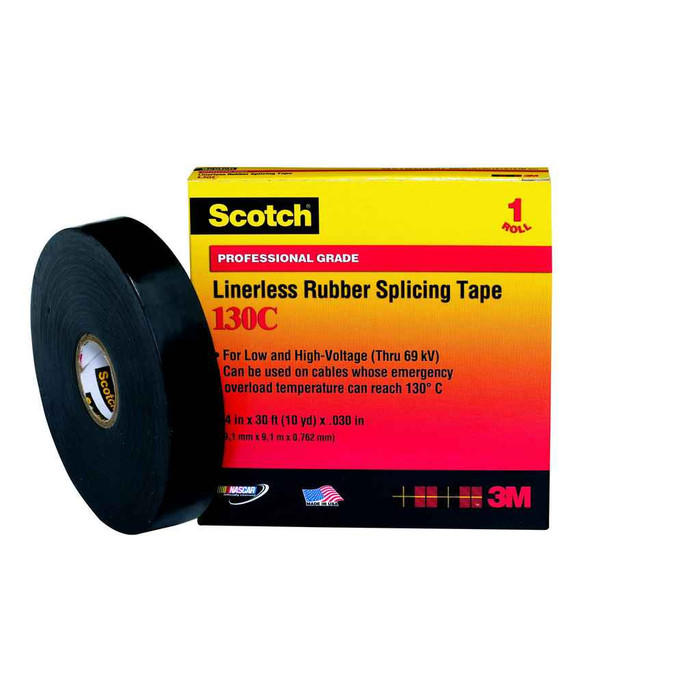

3M Scotch 130C Linerless Rubber Splicing Tape 30 ft

3M Scotch 130C Linerless Rubber Splicing Tape 30 ft

(No reviews yet) Write a Review

Model: 130C-3/4X30FT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$38.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

3M Scotch 130C Linerless Rubber Splicing Tape 1-1/2 in x 30 ft Premium Grade Electrical Insulation

Professional Grade Electrical Insulation & Cable Protection

The 3M Scotch 130C Linerless Rubber Splicing Tape delivers professional-grade electrical insulation and mechanical protection for cable splicing and termination applications. This premium-grade rubber tape features a highly conformable design with aggressive rubber-resin adhesive and self-fusing ethylene propylene backing, providing reliable moisture seal protection and void-free buildups for solid dielectric insulated cables rated through 69 kV. Manufactured in the USA with a 30-mil thickness and black color for professional visibility.

Professional Features & Benefits

  • 750 V/mil Dielectric Strength: Provides superior electrical insulation performance for high-voltage applications up to 69 kV cable systems.
  • 194�F Operating Temperature: Withstands continuous operation up to 90�C with emergency overload capability to 266�F (130�C) for demanding environments.
  • 850% Elongation: Highly conformable design ensures complete coverage around irregular surfaces and tight bends without cracking or separation.
  • Linerless Self-Fusing Design: Eliminates waste and provides immediate adhesion with rubber-resin adhesive system for reliable long-term bonds.
  • ASTM Approved Construction: Meets ASTM D-4325 and D-4388 Type 1, 2 & 3 standards plus RoHS 2011/65/EU compliance for professional installations.
  • UV Resistant Backing: Ethylene propylene rubber backing provides sunlight resistance for outdoor applications and long-term durability.
  • 5-Year Shelf Life: Extended storage capability ensures material readiness for planned maintenance and emergency repair applications.

Technical Specifications

  • 3m Id: 80610833412
  • Adhesive Material: Rubber Resin
  • Agency Approvals: ASTM D-4325, ASTM D-4388 Type 1, 2 & 3, HH-I-553C
  • Applications: Insulation
  • Backing Material: Ethylene Rubber
  • Backing Thickness Metric : 0.76 mm
  • Breaking Strength: 7.5 lb/in
  • Case Quantity: 100 Rolls
  • Compatible With: All Dome Closures
  • Dielectric Strength: 750 V/mil
  • Dielectric Strength V Mil : 750
  • Elongation: 850%
  • Elongation At Break: 850%
  • Emergency Overload Temperature Celsius : 130�C
  • Emergency Overload Temperature Fahrenheit : 266�F
  • Family: Scotch� Linerless Rubber Splicing Tape 130C
  • High Temperature Rating: 194�F (90�C)
  • Insulated: RoHS 2011/65/EU Compliant, Yes
  • Insulation Resistance: >10^15 megohms
  • Length Metric : 9.1 m
  • Liner Linerless: Linerless
  • Maximum Operating Temperature Celsius : 90 Degree Celsius
  • Maximum Operating Temperature Fahrenheit : 194 Degree Fahrenheit
  • National Stock Number: 5.97001E+12
  • Operating Temperature Celsius : Up to 90 �C
  • Operating Temperature Fahrenheit : Up to 194 �F
  • Product Color: Black
  • Product Length: 30 Linear Foot
  • Product Markets: Electrical Construction, Electrical MRO, Power Distribution
  • Product Material: Linerless EPR
  • Product Type: Rubber and Splicing Tapes
  • Product Width: 1.5 Inch
  • Rohs 2011 65 Eu Compliant: RoHS 2011/65/EU Compliant, Yes
  • Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls Per Carton: 1
  • Rolls Per Case: 12
  • Self Extinguishing: No, Sunlight Resistant
  • Self Sticking Amalgamating: RoHS 2011/65/EU Compliant, Yes
  • Shelf Life: 5 Year
  • Solution For: Access Network: FTTH/FTTB/CATV, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Infrastruc
  • Specifications: ASTM D-4388 Type 1, 2 & 3, HH-I- 553C
  • Suitable For High Voltage: RoHS 2011/65/EU Compliant, Yes
  • Tape Color: Black
  • Tape Grade: Premium
  • Tape Type: Professional Grade Rubber Tape
  • Tape Width Metric : 38.1 mm
  • Tensile Strength: 250 psi
  • Tensile Strength Lb In N 100 Mm : 7.5 (131)
  • Tensile Strength Metric : 1723 kPa
  • Thickness: 30 mil
  • Thickness Metric : 0.76 mm
  • Total Thickness: 0.76 mm
  • Trademark: Scotch�
  • Uv Resistant: RoHS 2011/65/EU Compliant, Yes
  • Voltage Application: High Voltage
  • Vulcanizing: RoHS 2011/65/EU Compliant, Yes
  • Width Metric : 38.1 mm

Professional Applications

  • Electrical Construction Projects
  • Power Distribution Systems
  • High-Voltage Cable Splicing
  • Cable Termination & Repair
  • Bus Bar Insulation
  • Electrical MRO Operations
  • Telecommunications Infrastructure
  • Industrial Maintenance

Why Choose 3M Quality?

3M Scotch 130C tape represents proven reliability with ASTM approvals, RoHS compliance, and USA manufacturing. The 5-year shelf life and premium-grade construction ensure dependable performance for critical electrical applications, backed by 3M's commitment to professional-grade electrical solutions.

Product Specs

Liner Linerless:
Linerless
Tape Color:
Black
Operating Temperature Fahrenheit:
Up to 194 °F
Adhesive Material:
Rubber Resin
Voltage Application:
High Voltage
Operating Temperature Celsius:
Up to 90 °C
Department:
Electrical
Elongation At Break:
850%
Dielectric Strength V Mil:
750
Tape Grade:
Premium
Application:
Insulation
Tape Type:
Professional Grade Rubber Tape
Backing Material:
Ethylene Rubber
Product Material:
Linerless EPR
Product Type:
Rubber Splicing Tape
Product Group:
Cable Management & Identification
Product Subgroup:
Electrical Tape

3M 130C-3/4X30FT – Frequently Asked Questions

1) What widths does the 3M Scotch 130C rubber splicing tape come in?
Four widths, all on 30 foot rolls: 3/4 inch (130C-3/4X30FT), 1 inch (130C-1X30FT), 1-1/2 inch (130C-1-1/2X30FT) and 2 inch (130C-2X30FT). Splicers generally pick width off conductor size, narrower rolls for small terminations and control wiring, 1-1/2 and 2 inch for building up over medium and high voltage cable splices where fewer wraps means fewer chances of a void.
2) What voltage can Scotch 130C splicing tape be used on?
The 130C is a high voltage rubber splicing tape rated for solid dielectric insulated cables through 69 kV, with a dielectric strength of 750 volts per mil. At 30 mil thickness per layer, half-lapping gives you 60 mil of built-up insulation per pass, which is how splicers hit the required wall on a given cable.
3) How hot can Scotch 130C tape run continuously?
Continuous operation up to 90 degrees C (194 degrees F), with emergency overload capability to 130 degrees C (266 degrees F). That matches the conductor rating on most 90 C rated solid dielectric cable, so the tape is not the limiting element in a typical medium voltage splice.
4) Can I use rubber splicing tape instead of regular black electrical tape?
They do different jobs. Vinyl electrical tape is a jacketing and color-coding tape. The 130C is a self-fusing EPR splicing tape rated at 750 V/mil that amalgamates into one continuous rubber mass to insulate and moisture-seal a splice. For a low voltage repair on a cord or a wire nut, vinyl alone is normally what gets used. For splicing or terminating insulated cable, you build with the rubber tape first and jacket with vinyl over it.
5) Does 130C tape need vinyl tape over it?
Yes, for most outdoor and abrasion-exposed work. The 130C is an ethylene propylene rubber backing with a rubber resin adhesive, self-fusing so it amalgamates into a solid moisture seal, but the rubber itself is soft. Standard splicing practice is to overwrap the finished rubber buildup with a vinyl electrical tape jacket for mechanical and abrasion protection. The 130C backing is sunlight resistant on its own, so UV is not the reason for the jacket.
6) Is there a liner to peel off this 3M splicing tape?
No. The 130C is linerless, so you pull and wrap straight off the roll with no backing film to strip and throw away. That speeds up work in a bucket or a manhole where handling a liner one-handed is a nuisance, but it also means the roll will fuse to itself if it sits unwrapped in heat, so keep partial rolls bagged.
7) Will 130C tape conform around an irregular splice or a tight bend?
It will. Elongation at break is 850 percent, so you can stretch it thin and pull it down into the contours of a connector, a bus bar corner, or a stepped cable buildup without it cracking or pulling back off. Stretching it as you wrap is what drives out voids and gets a void-free buildup, which is the whole point of a rubber splicing tape.
8) What standards does 3M 130C splicing tape meet?
The 130C is listed to ASTM D-4325 and ASTM D-4388 Type 1, 2 and 3, plus federal spec HH-I-553C, and it is RoHS 2011/65/EU compliant without exemption. Those are the specs utility and government MRO buyers usually write rubber splicing tape against.
9) Is 3M 130C tape flame retardant?
No, the 130C is not self-extinguishing. It is sunlight resistant, so it holds up outdoors, but if your spec calls for a flame retardant rubber splicing tape this is not the one to use. Black is the only color it comes in.
10) How long can 3M rubber splicing tape sit on the shelf before it goes bad?
Five years shelf life on the 130C, which is why it gets stocked in storerooms and line trucks for unplanned outage work rather than bought per job. Keep it in the original carton and out of heat, since a linerless rubber tape will block to itself if it bakes.
