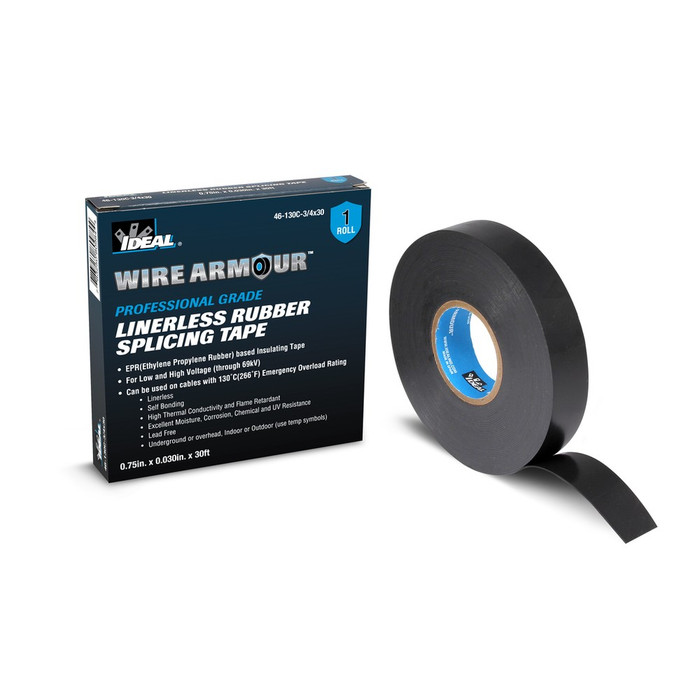

Ideal Industries 46-130C Linerless Rubber Splicing Tape, 3/4"
The Ideal Industries 46-130C Linerless Rubber Splicing Tape is a 3/4" wide self-fusing rubber tape designed for electrical splicing and insulating applications where a liner-free, easy-application product is preferred. Because the tape is linerless, there is no paper or plastic backing to remove and discard during application, which speeds up the wrapping process and reduces job-site waste. As a rubber splicing tape, it is built to conform tightly around irregular shapes such as connectors, splices, and cable joints, forming a continuous rubber layer once wrapped and fused to itself.
Key Features
- Trade Size: 3/4" wide tape sized for common electrical splicing and wrapping tasks.
- Linerless Design: No release liner to remove, allowing for faster, cleaner application directly from the roll.
- Rubber Construction: Rubber tape material self-fuses to itself when stretched and wrapped, forming a solid, seamless insulating layer over splices and connections.
- Conformable Application: Stretches and molds around irregular surfaces, connectors, and splice points for a tight, protective wrap.
- Ideal Industries Quality: Manufactured by Ideal Industries, a recognized supplier of electrical tapes and splicing products for professional and industrial use.
Technical Specifications
- Product Type: Linerless Rubber Splicing Tape
- Width: 3/4"
- Material: Rubber
Typical Applications
- Electrical Splicing and Insulation
- Cable and Connector Wrapping
- Commercial and Industrial Electrical Work
- General Electrical Maintenance and Repair
Why Ideal Industries?
Ideal Industries is a well-known name in electrical tape and splicing products, and this linerless rubber tape reflects that focus with a self-fusing rubber construction designed to simplify application on the job. Choosing a linerless format helps reduce application time and eliminates liner waste, making it a practical choice for electricians and maintenance professionals handling routine splicing and insulation tasks.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- IDL-20260924
- Product Type:
- Rubber Splicing Tape
- Department:
- Electrical
- Product Subgroup:
- Electrical Tape
- Product Material:
- Rubber
- Product Size:
- 3/4"
- Product Group:
- Cable Management & Identification
Ideal Industries 46-130C-3/4X30 – Frequently Asked Questions
1) Does Ideal 46-130C rubber splicing tape need to be covered with vinyl electrical tape?
Yes, in normal practice. The 46-130C is a self-fusing rubber splicing tape, so once stretched and wrapped it fuses into a continuous rubber insulating layer over the splice. That rubber layer is the insulation, not the mechanical or abrasion protection, so electricians overwrap it with a vinyl electrical tape to protect it and seal the ends. Order the vinyl separately; the roll of 46-130C is rubber tape only.
2) Can I use Ideal 46-130C rubber tape instead of vinyl tape to insulate a splice?
They do different jobs. Vinyl electrical tape is a thin backed tape used for insulating terminations and for jacketing. The 46-130C is a rubber splicing tape: it fuses to itself into one seamless rubber mass with no seams or edges for moisture to track into, which is what you want on an actual splice or cable joint. Use the rubber tape as the insulating body of the splice, vinyl over the top.
3) What does linerless mean on Ideal 46-130C splicing tape, and does it change how I wrap a splice?
Linerless means there is no paper or plastic backing to peel off as you wrap. You pull straight from the roll, stretch, and wrap, so there is no liner to strip and discard on a bucket or in a manhole. The wrapping technique itself is unchanged: stretch the rubber tape as you go so it fuses to itself and builds a solid layer around the connector.
4) Is 3/4 inch wide rubber tape the right size for wrapping wire nuts and inline connectors?
The 46-130C is 3/4 inch wide, which is the common trade width for splices, connectors and cable joints on building wire and smaller feeders. On bulky irregular shapes the tape stretches and molds around the connector, so 3/4 inch handles most connector wrapping without constant cutting. For large-diameter cable terminations many electricians prefer a wider rubber tape to cut wrap passes.
5) Will Ideal 46-130C rubber tape seal around an irregular shape like a split bolt or a cable joint?
That is what it is built for. Stretching the rubber tape lets it conform tightly to irregular surfaces, so it beds down over split bolts, crimp connectors and cable joints rather than tenting over the high spots. Keep tension even and overlap each pass so the layers fuse into one continuous body.
6) What is the Ideal part number to order for the 3/4 inch linerless rubber splicing tape?
Ideal Industries 46-130C, ordered as 46-130C-3/4X30 for the 3/4 inch wide roll. If your spec sheet or takeoff lists a different width in the 46-130 family, the suffix is what identifies the width, so match it exactly.
7) Is linerless rubber tape worth it for an MRO crew doing repeat splicing work?
The practical gain is time and cleanup. With no release liner there is nothing to peel and nothing to drop in a panel, trench or ceiling, which matters when a crew is doing many splices in a shift and when loose liner debris is a housekeeping issue in a plant or healthcare facility. The tape performs the same splicing and insulating role as lined rubber tape.
