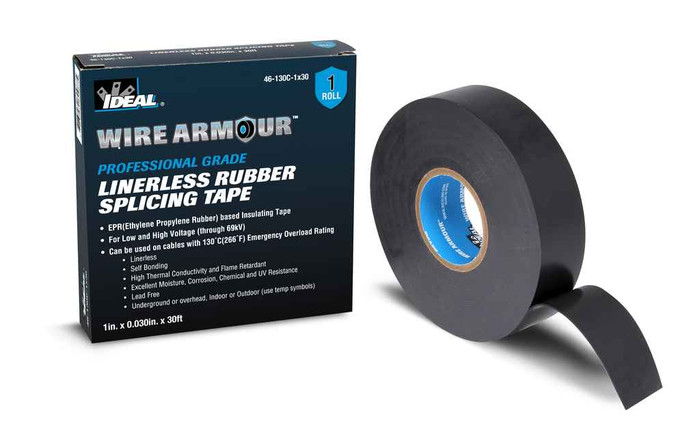

Ideal Industries Electrical Tape Linerless Rubber 1 Inch 69kV Primary Insulation
Professional-Grade Linerless Ethylene Rubber Electrical Insulation Tape
The Ideal Industries Electrical Tape Linerless Rubber delivers professional-grade electrical insulation performance for high-voltage applications up to 69kV. This linerless ethylene rubber electrical tape features advanced moisture and corrosion resistance designed for electricians, utility professionals, and electrical contractors, providing the reliable performance and industry-leading quality that electrical professionals demand for critical power distribution and transmission applications.
Professional Features & Benefits
Superior Insulation Performance
- Primary Insulation Rating up to 69kV - Provides exceptional dielectric strength for high-voltage electrical applications with reliable long-term performance
- Linerless Ethylene Rubber Construction - Eliminates backing removal step while delivering superior conformability and adhesion to irregular surfaces
- High Thermal Conductivity Design - Allows heat dissipation from electrical joints preventing overheating and extending connection life
- Excellent Conformability - Adapts to complex shapes and contours ensuring complete coverage and professional installation results
Environmental Protection & Safety
- Moisture and Corrosion Resistant - Protects electrical connections from environmental damage ensuring long-term reliability and safety compliance
- Chemical Resistant Formula - Withstands exposure to oils, acids, and industrial chemicals maintaining insulation integrity in harsh environments
- Temperature Stability - Performs reliably across wide temperature ranges maintaining flexibility and adhesion properties
Technical Specifications
1-inch width linerless ethylene rubber tape with primary insulation rating up to 69kV, overload temperature rating of 266°F, elongation capacity of 8.9%, moisture and chemical resistant construction, high thermal conductivity for heat dissipation, excellent conformability to complex shapes, and professional-grade adhesion properties for permanent electrical installations.
Installation & Setup
- Clean and prepare electrical connection surfaces removing dirt, moisture, and oxidation for optimal tape adhesion
- Begin wrapping at lowest voltage point working toward highest voltage maintaining 50% overlap for complete coverage
- Apply tape with firm, consistent pressure ensuring complete contact and eliminating air pockets or voids
- Stretch tape slightly during application to activate adhesive properties and ensure conformability to irregular surfaces
- Complete wrapping with sufficient layers to meet voltage rating requirements and safety code compliance
- Inspect final installation ensuring complete coverage with no exposed conductor or connection points
Professional Applications
Ideal for:
- High-Voltage Electrical Installations - Primary insulation for power distribution systems, transmission lines, and substation connections up to 69kV
- Utility Power Systems - Underground cable splicing, overhead line connections, and transformer installations requiring moisture protection
- Industrial Electrical Applications - Motor connections, control panel wiring, and heavy-duty electrical equipment installations in harsh environments
- Commercial Power Distribution - Building electrical systems, panel connections, and commercial equipment installations requiring chemical resistance
- Telecommunications Infrastructure - Power supply connections for communication equipment and data center electrical installations
- Marine and Outdoor Applications - Electrical connections exposed to moisture, salt spray, and environmental contaminants
- Emergency Electrical Repairs - Field repairs of damaged insulation on high-voltage cables and connections
- Maintenance and Retrofitting - Upgrading existing electrical installations with improved insulation and environmental protection
Linerless Rubber Technology Advantage
Ideal Industries linerless ethylene rubber technology eliminates the backing removal step while providing superior conformability and adhesion compared to traditional electrical tapes. The high thermal conductivity design allows heat dissipation from electrical joints preventing connection overheating, while the moisture and chemical resistant formula ensures long-term reliability in demanding electrical applications.
Why Choose Ideal Industries Quality?
Ideal Industries commitment to electrical safety and professional performance delivers linerless rubber tape engineered for high-voltage applications up to 69kV. With superior moisture and corrosion resistance, excellent conformability to complex shapes, and reliable thermal conductivity for heat dissipation, this professional-grade electrical tape meets the demanding requirements of utility professionals and electrical contractors for critical power system installations.
Manufacturer Resources
Spec Sheet
Product Specs
- Elongation:
- 890%
- Overload Temperature:
- 266°F
- Product Type:
- Rubber Splicing Tape
- Product Group:
- Cable Management & Identification
- Department:
- Electrical
- Product Subgroup:
- Electrical Tape
- parent sku:
- IDL-46-130C-1X30
Ideal Industries 46-130C-1X30 – Frequently Asked Questions
1) What voltage can Ideal linerless rubber tape be used on as primary insulation?
The Ideal Industries linerless ethylene rubber tape, model 46-130C-1X30, is rated for primary insulation up to 69kV. That covers splices and terminations on distribution and transmission work, substation connections, and underground cable splicing. Build enough half-lapped layers to meet the insulation thickness your voltage class calls for; the rating is the material's capability, not a single-wrap figure.
2) Is linerless rubber tape the same thing as regular black vinyl electrical tape?
Different jobs. Vinyl tape is a thin jacketing and identification tape for low-voltage work. This Ideal product is an ethylene rubber splicing tape that builds actual dielectric thickness and is rated for primary insulation to 69kV. If you are just covering a wire nut or color-coding conductors in a panel, vinyl is the right choice. If you are insulating a splice or termination on medium or high voltage cable, you need rubber tape like this and then a vinyl overwrap.
3) Do I have to peel a liner off this rubber splicing tape while I'm up on a pole?
No liner to strip. The 46-130C-1X30 is linerless ethylene rubber, so it comes off the roll ready to wrap, which is why crews reach for it on aerial and confined splices where dropping a paper backing is a nuisance.
4) How far does Ideal 46-130C rubber tape stretch when wrapping an irregular splice?
Elongation is 890 percent, so the tape stretches many times its relaxed length before it lets go. That is what lets it conform tightly around connector shoulders, lugs, and odd-shaped joints without voids. Stretch it as you wrap, since the stretch is what fuses the ethylene rubber to itself.
5) How hot can this rubber electrical tape get before it fails?
Overload temperature rating is 266 degrees F. That is the short-term overload condition the ethylene rubber tolerates, which matters on motor leads and heavily loaded connections that spike above normal operating temperature. The material also carries high thermal conductivity so heat moves out of the joint rather than building up under the wrap.
6) Can I use rubber splicing tape outdoors or in a wet vault without an overwrap?
The ethylene rubber is moisture and corrosion resistant and holds up to oils, acids, and industrial chemicals, which is why it is used on underground splices, transformer connections, and marine and salt-spray exposures. Standard field practice is still to jacket it with a vinyl electrical tape for mechanical and UV protection, since this tape is the insulating layer, not the armor.
7) Which way should I wrap this tape on a cable splice?
Start at the lowest voltage point and work toward the highest, keeping a 50 percent overlap the whole way. Clean off dirt, moisture, and oxidation first, press firmly to drive out air pockets, and keep tension on the tape so the rubber fuses. Finish with enough layers to meet the insulation requirement for the voltage you are on, then inspect for any exposed conductor.
