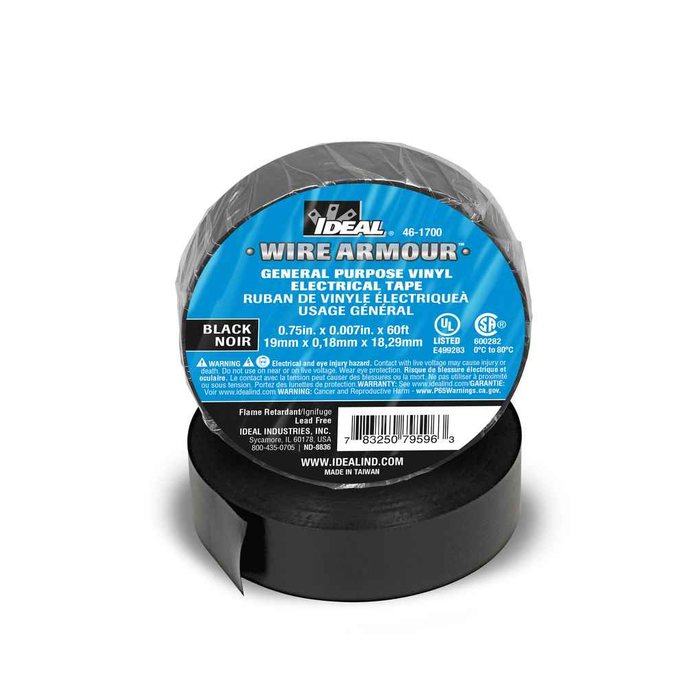

Ideal Industries Electrical Vinyl Tape 3/4 Inch x 66 Feet 600V Primary Insulation

Ideal Industries Electrical Vinyl Tape 3/4 Inch x 66 Feet 600V Primary Insulation

(No reviews yet) Write a Review

Model: 46-1700

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ideal Industries General Purpose Electrical Vinyl Tape

Professional-Grade 600V Primary Insulation Tape

The Ideal Industries General Purpose Electrical Vinyl Tape delivers professional-grade electrical insulation performance for primary insulation applications up to 600V. This flame-retardant vinyl tape features excellent elasticity and adhesion properties designed for electricians, telecommunications professionals, and electrical contractors, providing the reliable performance and industry-leading quality that electrical professionals demand for safe wire splicing and insulation.

Professional Features & Benefits

Primary Insulation Performance

  • 600V Primary Insulation Rating - Provides reliable electrical insulation for residential and commercial wiring applications with temperature rating up to 80°C
  • Excellent Elasticity - Conforms to irregular surfaces and wire connections for complete coverage and long-lasting adhesion
  • Superior Adhesion Properties - Bonds securely to wire insulation, conduit, and electrical components without leaving residue
  • 3/4 Inch x 66 Foot Roll - Standard width provides optimal coverage for most electrical connections with generous length for multiple applications

Safety & Code Compliance

  • Flame Retardant Construction - Meets electrical safety standards for fire resistance in electrical installations and wire management applications
  • 80°C Temperature Rating - Maintains insulation properties and adhesion in standard electrical operating temperatures for reliable long-term performance
  • UL Listed Quality - Manufactured to meet electrical code requirements for primary insulation applications in residential and commercial installations

Technical Specifications

Dimensions: 3/4 inch width x 0.007 inch thickness x 66 feet length, Voltage Rating: 600V primary insulation, Operating Temperature: Up to 80°C (176°F), Construction: Flame-retardant vinyl with pressure-sensitive adhesive, Color: Blue for easy identification, Compliance: UL Listed for electrical insulation applications, Adhesion: High-tack adhesive for permanent bonding to wire and electrical components.

Installation & Setup

  1. Clean wire connection or splice area to remove dirt, moisture, and oxidation for optimal adhesion and electrical performance
  2. Begin wrapping tape at least 1/2 inch beyond the splice or connection point, overlapping each wrap by 50% for complete coverage
  3. Apply firm, consistent pressure while wrapping to ensure proper adhesion and eliminate air bubbles that could compromise insulation
  4. Extend tape wrapping at least 1/2 inch beyond the opposite end of the splice for complete electrical isolation
  5. Press final wrap firmly to secure tape end and prevent unwinding in electrical installations
  6. Verify complete coverage with no exposed conductor or connection points for safe electrical operation

Professional Applications

Ideal for:

  • Residential Electrical Installation - Wire splicing, junction box connections, and branch circuit wiring in homes and apartments
  • Commercial Electrical Systems - Office building wiring, retail electrical installations, and commercial lighting circuit connections
  • Industrial Wiring Applications - Motor connections, control panel wiring, and industrial equipment electrical connections up to 600V
  • Telecommunications Wiring - Low voltage cable splicing, telephone system connections, and data cable management applications
  • Automotive Electrical Repair - Vehicle wiring harness repair, trailer wiring connections, and automotive electrical system maintenance
  • HVAC System Wiring - Heating and cooling system electrical connections, thermostat wiring, and equipment control circuits
  • Electrical Maintenance - Wire repair, connection reinforcement, and temporary electrical insulation during troubleshooting
  • Code Compliance Projects - Meeting NEC requirements for wire splicing and electrical connection insulation in permitted installations

Vinyl Tape Technology Advantage

Ideal Industries vinyl electrical tape technology provides superior electrical insulation through advanced polymer construction that maintains flexibility and adhesion across temperature ranges. The flame-retardant formulation ensures safety compliance while the pressure-sensitive adhesive creates permanent bonds that resist moisture, chemicals, and environmental conditions common in electrical installations.

Why Choose Ideal Industries Quality?

Ideal Industries commitment to electrical safety and code compliance ensures this vinyl tape meets UL listing requirements and NEC standards for primary insulation applications. Professional electricians trust Ideal Industries tape for reliable performance, consistent quality, and the safety certifications required for permitted electrical work and professional installations.

Product Specs

Product Type:
Electrical Tape
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Energy Monitoring

Ideal Industries 46-1700 – Frequently Asked Questions

1) Can Ideal 46-1700 vinyl tape be used as primary insulation on a 480V motor connection?
Yes. The Ideal Industries 46-1700 general purpose vinyl tape is rated 600V for primary insulation, so a 480V motor lead or control panel connection is within rating. Temperature rating is 80C (176F), which covers standard motor and panel operating conditions. Half-lap each wrap and carry the tape at least 1/2 inch past each end of the splice.
2) What colors does Ideal 46-1700C electrical tape come in for phase color coding?
Ten colors: black, blue, brown, green, gray, orange, red, violet, white and yellow. Black is part number 46-1700; the colors carry a suffix, for example 46-1700C-RED for red and 46-1700C-BLU for blue. That range covers 120/208 and 277/480 phase identification plus ground and neutral marking, all on the same 3/4 inch x 66 foot roll.
3) Is the colored Ideal vinyl tape the same rating as the black, or is it identification-only?
Same tape. Every color in the 46-1700 line is the same 0.007 inch flame retardant vinyl rated 600V to 80C, so a red or blue roll insulates a splice exactly like the black does. That is different from a dedicated color-coding tape such as the 3M Scotch 35, which comes in a 1/2 inch x 20 foot roll intended for marking rather than long splice runs.
4) Can I use 3M Scotch 70 instead of Ideal 46-1700 vinyl tape on a splice?
They are not interchangeable. Scotch 70 is a self-fusing silicone rubber tape, 1 inch wide by 30 feet, in sky blue and gray, and it bonds to itself to build a void-free layer rather than relying on adhesive. The Ideal 46-1700 is a flame-retardant vinyl tape with a pressure-sensitive adhesive rated for 600V primary insulation up to 80 degrees C. Self-fusing rubber tapes are typically used as a body layer and then overwrapped with a vinyl tape like the 46-1700 for the jacket, so most splice buildups use both rather than one instead of the other.
5) How does Ideal 46-1700 compare to 3M Super 33+ or Temflex 1776?
All three are 3/4 inch PVC electrical tapes. The Ideal 46-1700 roll runs 66 feet at 0.007 inch thick with a 600V, 80C rating. The 3M 33+ comes as a 3/4 inch x 76 foot roll, and 3M Temflex 1776 is a 3/4 inch x 60 foot premium grade roll with black PVC backing. If you need the widest color selection for phase marking, the Ideal line runs ten colors.
6) I need to insulate a high-temperature or irregular splice that vinyl tape won't hold on. What should I use instead?
Vinyl tape like the Ideal 46-1700 tops out at 80C and relies on adhesive, so it is the wrong choice for hot connections or bulky irregular shapes. For those, a self-fusing tape is the better answer: 3M Scotch 70 self-fusing silicone rubber tape, 1 inch x 30 ft, bonds to itself rather than to the substrate and builds a solid mass over odd shapes. Many electricians still overwrap the fused layer with vinyl for mechanical protection.
7) Is Ideal 46-1700 vinyl tape flame retardant and UL listed for permitted electrical work?
The tape is flame retardant vinyl and UL Listed for electrical insulation applications, which is what inspectors look for on taped splices in permitted residential and commercial installations.
8) What is a general purpose alternative to the Ideal 46-1700 for everyday taping?
The 3M Temflex 1776 is a 0.75 inch by 60 foot black PVC-backed electrical tape, matching the Ideal 46-1700 on width with a slightly shorter 60 foot roll against 66 feet. The Temflex 1776 is offered in black, while the Ideal 46-1700 runs a ten-color range including brown, orange, violet and white, which matters if you are standardizing phase identification across a facility.
9) Will 3/4 inch x 66 foot vinyl tape work for low voltage and thermostat wiring, or is it overkill?
It works. The 46-1700 tape is fine on Class 2 thermostat runs, HVAC control circuits, and telecom or data cable splices; a 600V rating simply means you are well under it. The 3/4 inch width is the standard trade size and one 66 foot roll covers a lot of small connections.
10) How much overlap should I use when wrapping a splice with this tape?
Half-lap it: overlap each wrap by 50 percent, starting at least 1/2 inch before the splice and finishing at least 1/2 inch past the far end. Clean off dirt, moisture and oxidation first, keep firm tension so no air pockets form under the 0.007 inch vinyl, and press the tail down so it does not unwind in the box.
