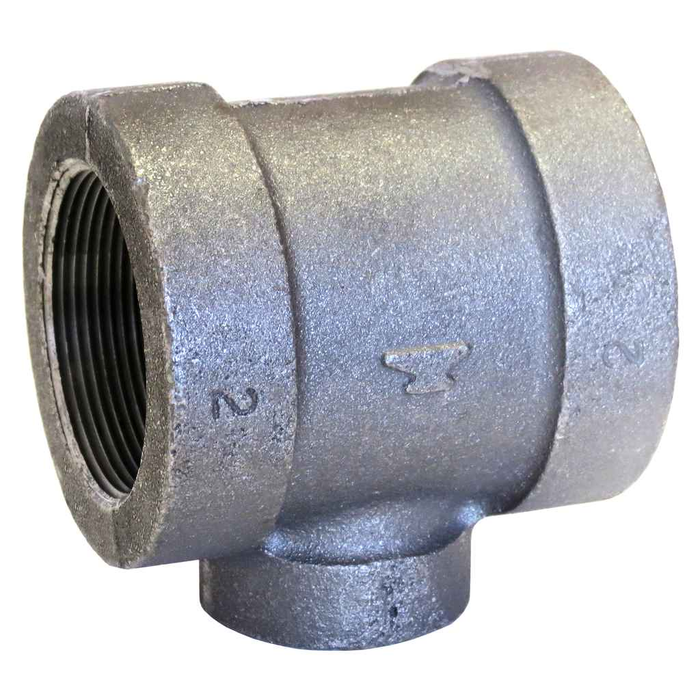

3X3X2 XH BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 3
- Size 2:
- 3
- Size 3:
- 2
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 9.6 lbs
ASC Engineered Solutions 310527205 – Frequently Asked Questions
1) What size pipe does the ASC Engineered Solutions 3x3x2 black malleable iron tee take on each opening?
Run openings are both 3 inch and the branch is 2 inch, so it carries a 3 inch line straight through and drops a reduced 2 inch takeoff. All three ends are female pipe thread (FPT), cut to ASME B1.20.1 NPT, so they thread onto standard threaded steel or iron pipe of those sizes.
2) Is this black malleable iron tee approved for fire sprinkler piping?
It carries UL/FM approval, so it can be used on fire protection piping where the designer calls for a listed threaded fitting. Material is malleable iron to ASTM A-197 with a black (uncoated) finish, which is the usual choice for wet sprinkler and black steel systems rather than galvanized service.
3) What does the XH rating on a malleable iron tee actually mean for pressure?
XH is extra heavy, a thicker wall class than standard 150 fittings, and this tee's pressure rating follows ASME B16.3. Dimensions are to the same standard, so it interchanges with other B16.3 extra heavy 300 class fittings in the same sizes rather than with 150 class parts.
4) Can I use a black malleable iron tee on a potable water line?
Black malleable iron is uncoated and is meant for black steel systems: fire protection, gas, steam, compressed air and closed loop hydronic work. For potable water you want a galvanized fitting instead, since black iron will rust in open water service.
5) Is this the same as a 3x3x2 reducing tee or do I need a reducing bushing?
It is a reducing tee cast in one piece, with 3 inch on both run ends and 2 inch on the branch. No bushing is needed to get from 3 to 2 inch, and that keeps one less joint in the line.
6) What is the manufacturer part number for the ASC Engineered Solutions 3x3x2 XH black tee?
The part number is 310527205, an ASC Engineered Solutions extra heavy black malleable iron reducing tee. Use that number when matching fittings across a job so you stay in the same class and pattern.
