Metallics JRMB69 4-40 x 3/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.56
$0.56

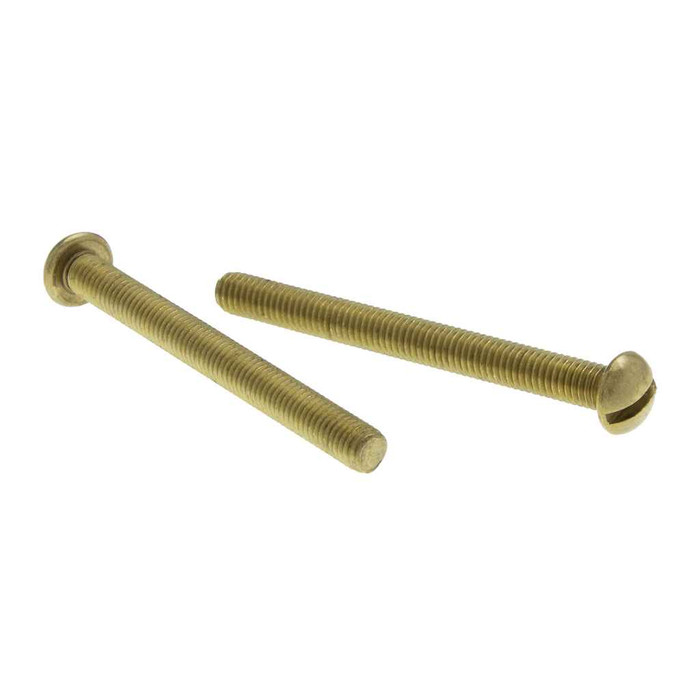

Metallics JRMB69 4-40 x 3/4 in. Round Head Slotted Machine Screws - Brass - 100qty

Metallics JRMB69 4-40 x 3/4 in. Round Head Slotted Machine Screws - Brass - Each

(No reviews yet) Write a Review

Model: JRMB69
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.56
$0.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4-40 x 3/4 in. Round Head Slotted Machine Screws - Brass - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Round head with slotted Drive
    • 4-40 Diameter, 3/4" Length
    • Brass Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.075 - 0.086 in.
Fastener Head Type:
Round
Fastener Head Width:
0.193 - 0.211 in.
Fastener Length:
4-Mar
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.29 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.046 - 0.065
Slot Depth:
0.044 - 0.058
Slot Width:
0.031 - 0.039
Sub Division:
Electrical-E H2
Thread Per Inch:
40
Thread Standard:
ANSI/ASME B1.1
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRMB
Product Details:
Machine Screw
Product Material:
Brass

Metallics JRMB69 – Frequently Asked Questions

1) How much room does the round head take up above the surface?
Round head, sitting 0.075 to 0.086 inch proud with a head width of 0.193 to 0.211 inch. That head sits entirely on top of the material, so you need that clearance above the mounting surface. If you need the head flush, a round head is the wrong choice and you want a flat head screw in a countersunk hole instead.
2) Do these brass screws meet Buy American and ARRA requirements for a public job?
The JRMB69 is flagged compliant for both Buy American and ARRA. Country of origin is China. On a federally funded project, give your specifying authority both of those facts, since the compliance path for a given contract may hinge on origin.
3) Are these machine screws made to a dimensional spec, or are they generic imports?
Head and slot geometry is held to ASME B18.6.3, the dimensional standard for slotted and recessed head machine screws, and the thread is to ANSI/ASME B1.1. That is why the head width, head height and slot dimensions are published as ranges rather than single numbers, and it is what lets you substitute them for any other B18.6.3 round head slotted 4-40 screw of the same length.
4) How are the Metallics JRMB69 brass machine screws packaged and what is the minimum order?
They ship in a jar, with a minimum of 100 count. Shipping weight on the jar is 0.29 lbs, and the container measures 3 x 2.15 x 3 inches, so it stores easily on a van shelf or in a parts drawer.
5) Can I use the JRMB69 brass screws as structural or load bearing fasteners?
No. These are 4-40 brass machine screws for light assembly, device and small component mounting. Brass has no published tensile rating here, and even the stainless equivalents in this family carry only approximate tensile values because there is no single performance standard for stainless machine screws. For anything carrying a load, use a rated steel fastener.
