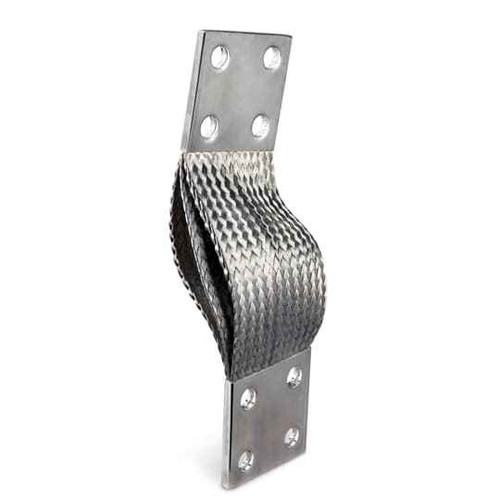

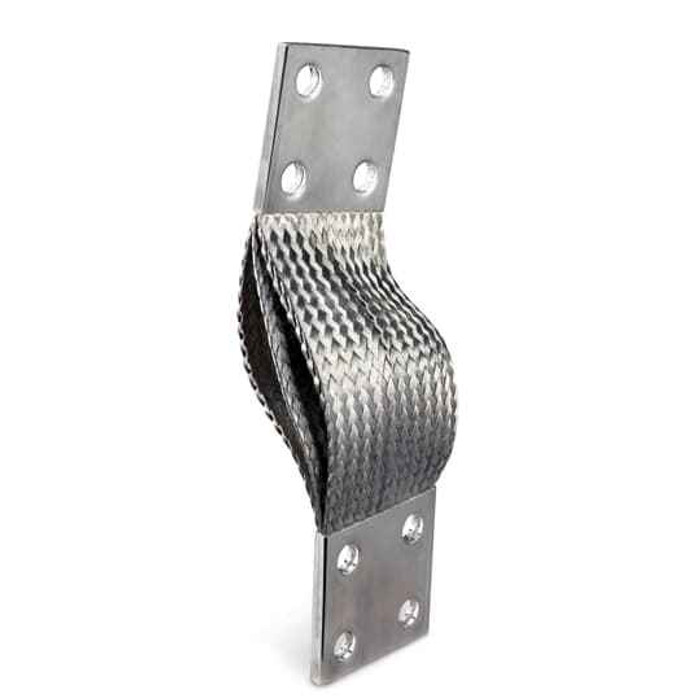

4H JMPR BRD ASY30 3400 H9/16 L18
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 18 in457.2 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE4H340A1-18 – Frequently Asked Questions
1) How long is the Blackburn FBE4H340A1-18 jumper braid?
The FBE4H340A1-18 braid assembly is 18 inches long (457.2 mm). That length is fixed, so measure the span between your two bonding points before ordering. It is sold individually, one braid per unit.
2) Does the Blackburn FBE4H340A1-18 come with terminals already attached?
Yes, it is supplied as a finished braid assembly with terminals, not as loose braid you cut and crimp yourself. The terminal hole is 9/16 inch, so it lands on a 1/2 inch bolt or stud without drilling. Confirm your pad or lug hardware matches that hole before you set the job up.
3) Is the Blackburn FBE4H340A1-18 bonding braid insulated?
No. It is a bare, non-insulated braid. That is normal for a flexible bonding jumper, but it means you have to keep the run clear of live parts and other conductive surfaces it should not be touching, since nothing on the braid itself provides separation.
4) What is a flexible jumper braid like the Blackburn FBE4H340A1-18 actually used for?
It is an extra-flexible grounding and bonding jumper, used to keep a continuity path across a joint that moves or is electrically discontinuous: equipment on vibration isolators, hinged enclosure doors, expansion joints in raceway, transformer or motor mounts. The braid construction flexes repeatedly without work-hardening the way a solid or stranded conductor would in the same spot.
5) Does the Blackburn FBE4H340A1-18 meet a recognized standard?
The braid assembly is built to NEMA standards. It is also made in the United States, which matters on federal, military, and Buy American funded work where domestic origin has to be documented.
6) Can I cut a Blackburn jumper braid down to a shorter length?
Not without losing the assembly. The FBE4H340A1-18 is a factory-made 18 inch braid with terminals on both ends; cutting it removes one termination and leaves you with a bare braid end that still has to be attached properly. If you need a shorter span, order the braid built to that length instead.
