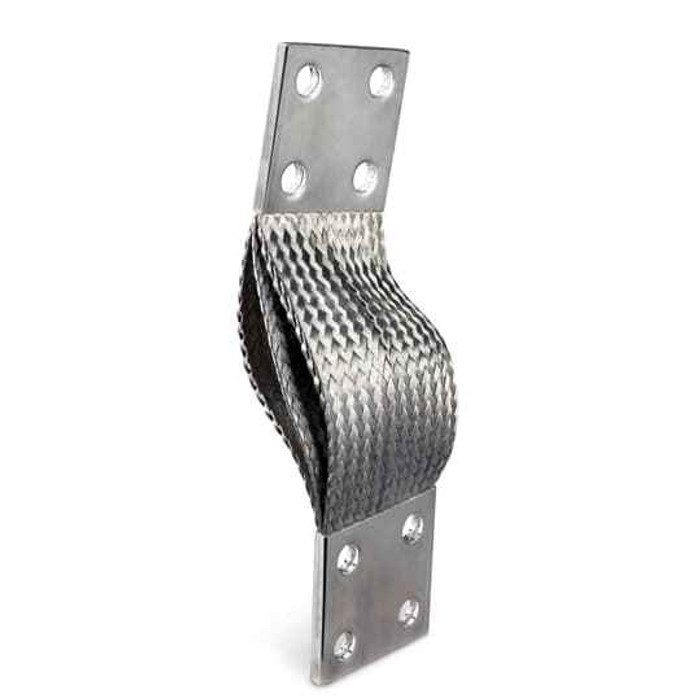

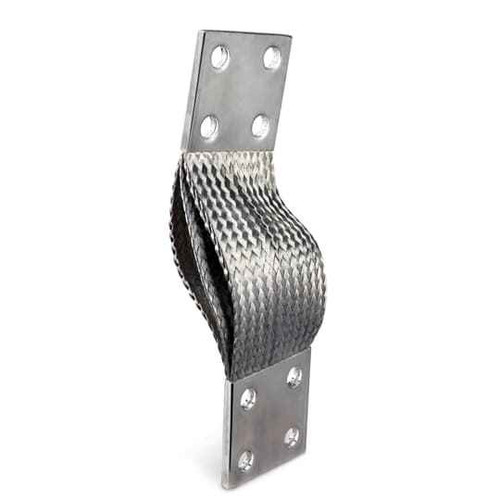

4H JMPR BRD ASY30 3400 H9/16 L36
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 36 in914.4 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE4H340A1-36 – Frequently Asked Questions
1) How long is the Blackburn FBE4H340A1-36 jumper braid?
The braid assembly measures 36 inches (914.4 mm) overall, which is what the -36 suffix in FBE4H340A1-36 designates. That length gives you enough slack to bond across an expansion joint, a vibration-isolated enclosure, or a hinged door on a switchboard without the braid going taut through the swing.
2) Is this Blackburn bonding braid insulated?
No. The FBE4H340A1-36 is a non-insulated braid, so the conductor is bare over its full length. Plan the routing so it cannot contact an ungrounded live part or a moving edge, and use a standoff or sleeve if the run passes anything energized.
3) Why use a flexible braid instead of a solid bonding jumper or bare copper wire?
An extra-flexible jumper braid is what you reach for when the two points being bonded move relative to each other: equipment on vibration isolators, a transformer enclosure, a hinged or sliding panel, a bus joint that grows and shrinks with load. A solid or stranded jumper work-hardens and eventually cracks at the terminal under that cycling. Where both ends are rigid and static, an ordinary bonding jumper conductor is the simpler and cheaper choice.
4) Does the Blackburn FBE4H340A1-36 come as a complete assembly with lugs attached, and how is it sold?
It ships as a finished jumper braid assembly, braid plus terminals, not as bulk braid you cut and crimp yourself. Selling unit is each, so one part number gets you one ready-to-bolt jumper. Mounting bolts, nuts, and washers are not part of the assembly, so pull those from your own hardware or order them separately.
5) Is this bonding braid made in the USA, and does it meet a recognized standard for a government or institutional spec?
Country of origin is the United States, which is what a federal, municipal, or Buy American funded job will ask for on the submittal. The braid is built to NEMA, so cite that on the spec sheet. If your specification calls out a particular UL listing or ampacity rating, get that confirmed against the manufacturer's data before you submit, since the ordering record here carries the NEMA reference.
6) What is the correct Blackburn part number to order and reorder this 36 inch braid?
Order it as Blackburn FBE4H340A1-36. That is the manufacturer part number and the only configuration under it, so there is no length, finish, or hole-size option to select at the order line. Distributors standardizing a shelf item can file it under that number directly; the -36 fixes the length at 36 inches and the H9/16 fixes the terminal hole.
