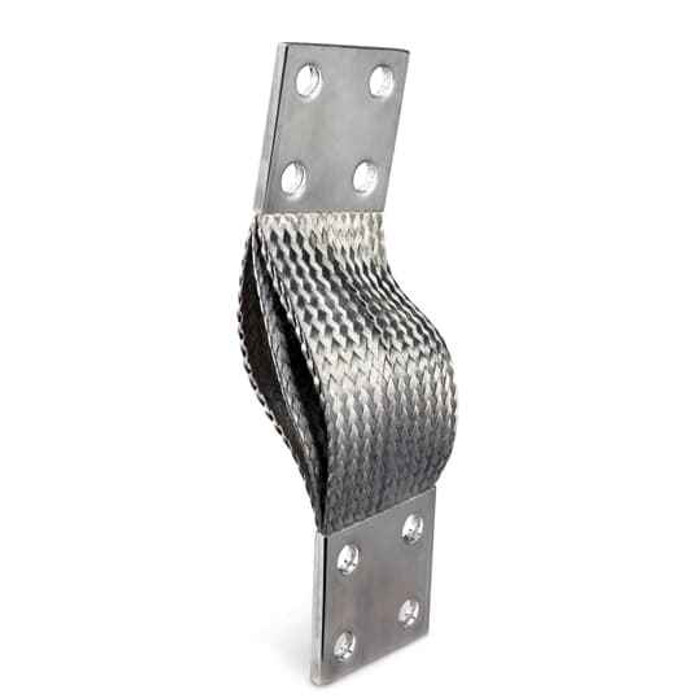

4H JMPR BRD ASY30 3400 H9/16 L26
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 26 in660.4 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE4H340A1-26 – Frequently Asked Questions
1) How long is the Blackburn FBE4H340A1-26 jumper braid?
The braid assembly measures 26 inches (660.4 mm) in length. That length is fixed for the FBE4H340A1-26; it is sold as a made-up assembly, one each, rather than cut to order.
2) What hole size are the terminals on the Blackburn FBE4H340A1-26?
The terminal pads are punched for 9/16 inch hardware, which is the common pad hole for 1/2 inch bolts on bus and equipment grounding pads. Confirm your pad or lug drilling matches before ordering, since the holes are factory punched on the assembly and not field-adjustable.
3) What is a flexible jumper braid used for versus a solid bonding jumper?
An extra-flexible braid like the FBE4H340A1-26 is for bonding across joints that move or vibrate: expansion fittings, hinged enclosure doors, equipment on isolators, rail and bus connections. A rigid bar or solid conductor jumper is the better choice on a fixed, non-moving connection where mechanical strength matters more than flex. The braid's value is that it keeps the ground path continuous while the two ends shift relative to each other.
4) Are there other lengths of this Blackburn braid besides 26 inches?
The FBE4H340A1-26 is a single fixed configuration: one model, 26 inch length, 9/16 inch terminal holes. If your span needs a different length, you order a different part number in the Blackburn flexible braid series rather than modifying this one, since the terminals are factory attached.
5) Does the Blackburn FBE4H340A1-26 meet NEMA requirements?
The assembly is built to NEMA standards. Beyond that, no UL file, ampacity rating or fire rating is carried for this braid, so specify it on the NEMA reference when it goes on a submittal.
6) Is the FBE4H340A1-26 sold individually or in a pack?
Individually. Each order line is one 26 inch braid assembly, so if you are bonding a run of expansion joints or a row of enclosure doors, order one per connection point.
