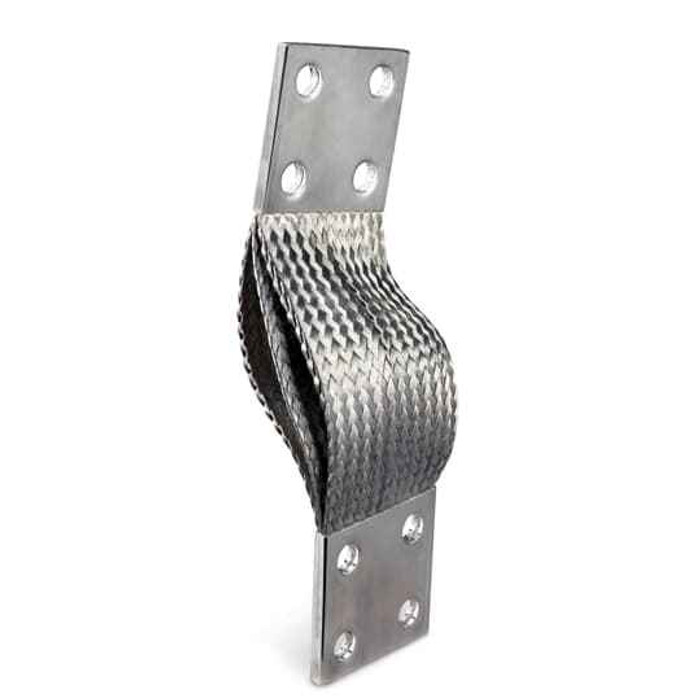

4H JMPR BRD ASY4 1400 H9/16 L13
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 13 in330.2 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE4H140A1-13 – Frequently Asked Questions
1) How long is the Blackburn FBE4H140A1-13 jumper braid?
The FBE4H140A1-13 bonding braid is 13 inches long (330.2 mm). That length is the whole reason to spec this part over a shorter braid: it gives you enough slack to bond across an expansion joint, a vibrating motor base, or a hinged enclosure door without putting tension on the terminations.
2) What size bolt hole do the terminals on the FBE4H140A1-13 take?
The terminals are drilled 9/16 inch, per the H9/16 in the part designation. Check the bolt or stud at your bonding point before ordering, a 9/16 hole will not seat on a larger stud and will float on a smaller one unless you add a washer.
3) What is a flexible jumper braid used for instead of solid ground wire?
A braid like the Blackburn FBE4H140A1-13 is used anywhere the two bonded points move relative to each other. Solid or stranded ground wire work-hardens and eventually cracks at the lug when it is flexed repeatedly; an extra-flexible braid absorbs that motion. Typical spots are motor and generator frames, transformer pads, enclosure doors, bus duct joints, and conduit expansion fittings.
4) Does the Blackburn FBE4H140A1-13 come with terminals already attached, or do I crimp my own?
It ships as a complete assembly, braid with the terminations already made up, so you are bolting it in rather than crimping in the field. It is sold each, so quantity is per braid, not per foot or per pair.
5) Does this Blackburn bonding braid meet a recognized standard for spec work?
The FBE4H140A1-13 is built to NEMA. It is also made in the United States, which matters if your job carries a domestic-content or Buy American requirement on electrical materials.
