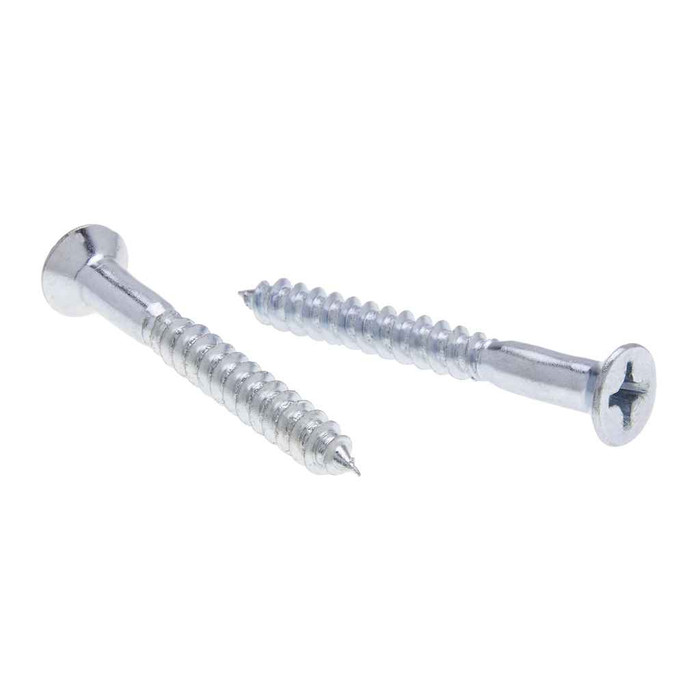

Metallics JFWP69 5 x 3/4 in. Flat Head Phillips Wood Screws - Steel Zinc - 100qty

Metallics JFWP69 5 x 3/4 in. Flat Head Phillips Wood Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFWP69
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.30
$0.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
5 x 3/4 in. Flat Head Phillips Wood Screws - Steel Zinc - 100qty

  • Features

    • Screws of nominal lengths too short to accomodate the minimum thread length shall have threads extending as close to the underside of the head as practicable.
    • 5 Diameter, 3/4" Length
    • Steel Zinc Material
    • Flat Head with Phillips Drive

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.075 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.22 - 0.252 in.
Fastener Length:
4-Mar
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Steel_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.063 - 0.086
Phillips Recess Diameter:
0.141 - 0.154
Phillips Recess Width:
0.027
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.25 lbs
Product Width:
3 in
Screw Point Type:
Tapered Point
Sub Division:
Electrical-E H2
Thread Per Inch:
20
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWP
Product Finish:
Zinc
Product Details:
Wood Screw
Product Material:
Steel Zinc

Metallics JFWP69 – Frequently Asked Questions

1) Do these Metallics screws meet Buy American requirements for a government or institutional job?
The JFWP69 wood screw is flagged as both Buy American compliant and ARRA compliant in the manufacturer data, which is what procurement on federally funded work normally asks for. Country of origin is listed as multiple, so if your spec requires a single named origin, confirm that separately with the submittal.
2) What standard are these wood screws made to, and will they match an existing spec?
Both the dimensions and the threads follow ASME B18.6.1 (thread standard cited as ASME B18.6.1-1997). If the drawing or spec calls for an ASME B18.6.1 flat head Phillips wood screw at #5 diameter, the JFWP69 answers it directly.
3) What size Phillips driver bit do I need for a #5 x 3/4 in. flat head wood screw?
A #2 Phillips bit. The JFWP69 screw uses a Phillips recess 0.141 to 0.154 inch in diameter and 0.063 to 0.086 inch deep, which is what a #2 tip seats into. A #1 will cam out, a #3 won't bottom in the recess.
4) Will a #5 flat head wood screw sit flush in a countersunk hole?
Yes, it is built to. The JFWP69 has a flat head measuring 0.22 to 0.252 inch across and 0.075 inch high, so an 82 degree countersink of that diameter brings the head level with the surface. If you are driving into softwood without a countersink, the flat head will usually pull itself in; in hardwood, countersink first.
5) Are Metallics JFWP wood screws rated for outdoor or damp locations?
These are steel with a zinc finish. Zinc plating handles indoor and protected work fine, but it is not a stainless or hot dip galvanized screw, so for sustained exterior exposure, pressure treated lumber, or wet locations you want a stainless or galvanized fastener instead.
6) Is a 3/4 inch wood screw threaded all the way to the head?
Effectively yes on this one. At 3/4 inch long the screw is too short to carry the normal minimum thread length, so the thread runs as close under the head as it practically can. The partial-thread rule (two thirds threaded) only kicks in once length reaches an inch. Thread pitch is 20 per inch with a tapered point.
7) Do I need to pre-drill for these, or will they self-start in wood?
The JFWP69 has a tapered point, not a self-drilling or type-17 auger tip. It will start in softwood or plywood with firm pressure, but in hardwood or near an edge, drill a pilot hole to avoid splitting. It is a traditional wood screw, so it needs the wood to form around the thread.
8) What is a #5 x 3/4 in. wood screw typically used for on electrical work?
Small, light-duty fastening into wood: securing device plates, low voltage brackets, small boxes, cable clips and plastic covers to studs, joists or wood backing. A #5 shank with a 3/4 inch length holds in thin stock without punching through, and the flat head sits flush under a plate or cover.
9) Can I get the JFWP series in other lengths or diameters than #5 x 3/4 in.?
The Metallics JFWP flat head Phillips wood screw line runs in other sizes and jar counts by request; JFWP69 is the #5 diameter, 3/4 inch length in the series. If you are standardizing a building on one screw family, you can keep the same flat head Phillips steel zinc pattern across sizes.
