Klein Tools 516PNDHC 5/16-Inch Hollow Magnetic Color-Coded Power Nut Driver

Klein Tools 516PNDHC 5/16-Inch Hollow Magnetic Color-Coded Power Nut Driver

(No reviews yet) Write a Review

Model: 516PNDHC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$69.49
$19.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
5/16-Inch Hollow Magnetic Color-Coded Power Nut Driver

  • Features

    • 5-Inch sturdy shaft for extended reach and access
    • Durable finish for corrosion resistance
    • Impact-rated nut driver for the toughest driving applications

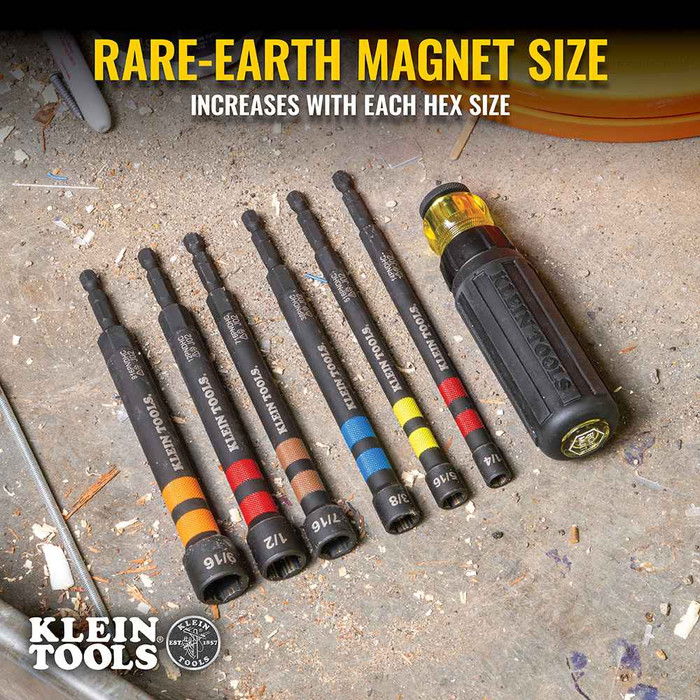

    • Magnet size designed for the specific hex size to hold screws and nuts more securely
    • 3-3/4-Inch (9.5 cm) hollow core facilitates work on threaded rod
    • Rare-Earth Magnet, Impact Rated, Color Coded, Extended Length
    • 5/16-Inch Power Nut Driver with a Rare-Earth magnet to retain fasteners for one-handed driving
    • Color-coded double line for easy size identification
    • Replacement part for the Magnetic Color-Coded Power Nut Setter Set (Cat. No. 32950)

  • Warnings

    • Do NOT use to pry or chisel.
    • Always wear approved eye protection.
    • NOT insulated. Will NOT protect against electrical shock.


516PNDHC - spec sheet

Manufacturer Resources

Product Specs

Color Code:
Yellow
Insulated:
No
Magnetic:
Yes
Measurement Standard:
SAE
Nut Driver Sizes:
5/16"
Overall Height:
0.49" (1.2 cm)
Overall Length:
6.3" (16 cm)
Overall Width:
0.49" (1.2 cm)
Shaft Length:
5'' (12.7 cm)
Department:
Electrical
Product Group:
Hand Tools
Product Subgroup:
Screwdrivers & Drivers
Product Type:
Hollow Nut Setter
Product Details:
Hollow Nut Setter
Product Height:
0.4900 in
Product Material:
Steel Alloy
Product Weight:
0.1300 lbs
Product Width:
0.5900 in
Product Depth:
6.3160 in

Klein Tools 516PNDHC – Frequently Asked Questions

1) Is the Klein 516PNDHC safe to use on live electrical work?
No. The 516PNDHC is not insulated and will not protect against electrical shock. Klein is explicit about it in the product warnings. If you're working energized, you need a tool rated and marked for insulated use, not this one. It's also not for prying or chiseling, and eye protection is called for.
2) I lost the 5/16 driver out of my Klein 32950 set. Is this the right replacement?
Yes. Klein lists the 516PNDHC as the replacement piece for the 5/16 inch position in the Magnetic Color-Coded Power Nut Setter Set, Cat. No. 32950. Ordering it individually gets you the same yellow-coded, hollow, impact-rated driver rather than repurchasing the whole set.
3) Will this 5/16 nut setter hold up in an impact driver?
Yes, the 516PNDHC is impact rated, so it's built for use in an impact driver rather than just a drill. It's steel alloy with a corrosion resistant finish. Standard practice still applies: don't use it to pry, and wear eye protection.
4) Does this nut driver hold the screw by itself so I can work one-handed?
It does. A rare-earth magnet sized specifically to the 5/16 inch hex holds the fastener in the socket, so you can start a self-drilling screw or hex-head sheet metal screw overhead or up a ladder without a second hand on it.
5) How long is the Klein 516PNDHC and will it reach into a deep box or channel?
Overall it's 6.3 inches with a 5 inch shaft, which is an extended length compared with a standard stubby nut setter. That gets the chuck clear of strut channel, deep junction boxes, and recessed hex heads. Shank profile is about 0.49 inches across, and the tool weighs 0.13 lbs.
6) Is a hollow nut setter better than a solid one for general electrical work?
Depends on the fastener. A hollow driver like the 516PNDHC is what you want where the screw or rod protrudes past the nut, threaded rod, long self-drillers, tek screws through thick decking, since the shaft swallows the excess. A solid magnetic setter is fine for short hex-head screws and is the simpler pick if you never run nuts on all-thread. Buying the hollow version covers both cases.
7) What does the yellow band on the Klein 516PNDHC mean?
Yellow is Klein's color code for the 5/16 inch size in the Magnetic Color-Coded Power Nut Driver line. The double line lets you grab the right size out of a pouch or a set without measuring. Sizing is SAE, not metric.
