Keystone 54W LED HID Replaceme...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$135.26
$93.29

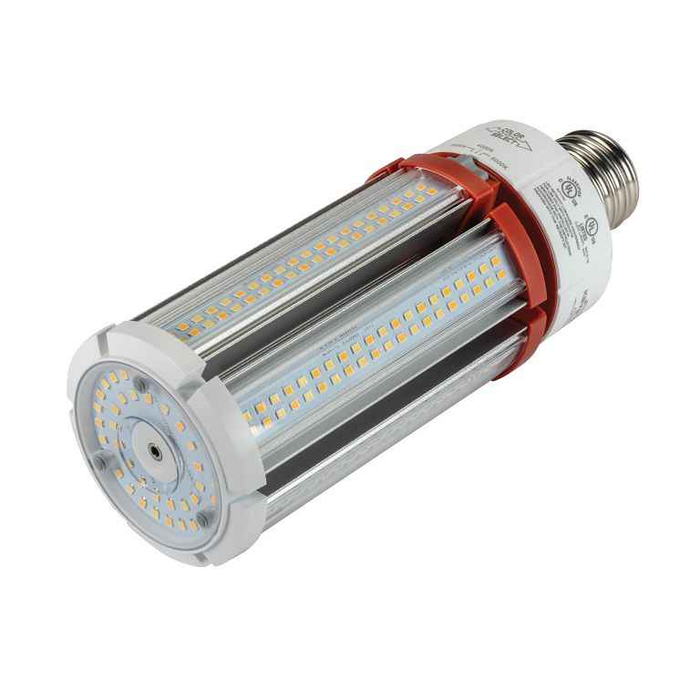

Keystone 54W LED HID Replacement Lamp with Power Select & Color Select Technology, EX39 Base, 250W MH Equivalent

Keystone 54W LED HID Replacement Lamp with Power Select & Color Select Technology, EX39 Base, 250W MH Equivalent

(No reviews yet) Write a Review

Model: KT-LED54PSHID-EX39-8CSB-D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$135.26
$93.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 54W LED HID Replacement Lamp with Power Select & Color Select Technology

Advanced LED retrofit solution with selectable power and color temperature options

The Keystone LED HID Replacement Lamp delivers professional-grade lighting performance with innovative Power Select and Color Select technology. This 54W LED lamp provides a direct replacement for traditional 250W metal halide fixtures, offering significant energy savings while maintaining superior light output. Featuring an EX39 base for easy installation and 360-degree beam angle for comprehensive coverage, this lamp combines reliability with advanced functionality for versatile commercial and industrial applications.

Professional Features & Benefits

  • Selectable Power Options (54/45/36W): Customize energy consumption and light output to match specific application requirements while maximizing efficiency.
  • Selectable Color Temperature (3000/4000/5000K): Choose the optimal color temperature for your environment, from warm white to daylight, enhancing visual comfort and productivity.
  • 250W MH Equivalent Performance: Delivers comparable light output to traditional metal halide lamps while consuming up to 78% less energy.
  • 50,000-Hour Rated Life: Provides exceptional longevity, reducing maintenance costs and lamp replacement frequency in commercial installations.
  • Step Dimmable Capability: Offers flexible lighting control for energy management and ambiance adjustment in compatible fixtures.
  • DLC Listed Quality: Meets rigorous performance standards for utility rebate eligibility and professional lighting applications.
  • 5-Year Warranty: Backed by comprehensive warranty coverage ensuring long-term reliability and peace of mind.

Technical Specifications

  • Accessory Device: No
  • Base Type: EX39
  • Beam Angle: 360
  • Cec T20: No
  • Cri: >80
  • Dimming: Step Dimmable
  • Dlc: Yes
  • Dlc Premium: No
  • Energy Star: No
  • Input Voltage: 120-277
  • Lamp Technology: B
  • Lamp Type: HID Replacement
  • Led Module Included: No
  • Legacy Equivalent: 250W MH
  • Not Suitable For Sale In California: No
  • Product Weight: 2.1 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3000/4000/5000
  • Selectable Lumens Output: 7300/7800/7500
  • Selectable Power: 54/45/36
  • T24 Ja8: No
  • Ul: No
  • Warranty Years: 5
  • Wireless Control: No

Professional Applications

  • Warehouse and Industrial Facilities
  • Retail and Commercial Spaces
  • Parking Garages and Outdoor Areas
  • Manufacturing and Production Facilities
  • Educational and Institutional Buildings
  • Healthcare and Medical Facilities
  • Municipal and Government Buildings

Power Select & Color Select Advantage

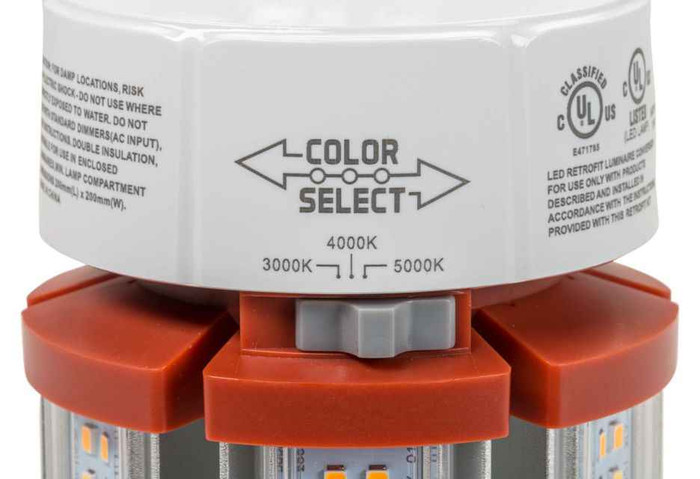

The integrated Power Select and Color Select technology provides unprecedented flexibility in a single lamp solution. Easily adjust between three power levels (54W, 45W, 36W) and three color temperatures (3000K, 4000K, 5000K) to optimize performance for specific applications, seasonal requirements, or energy management goals without requiring multiple lamp inventories.

Why Choose Keystone Quality?

Keystone delivers professional-grade LED lighting solutions backed by DLC listing and comprehensive 5-year warranty coverage. This HID replacement lamp combines proven reliability with innovative selectable technology, ensuring optimal performance and long-term value in demanding commercial and industrial environments.

Manufacturer Resources

Product Specs

Accessory Device:
No
Base Type:
EX39
Beam Angle:
360
Cec T20:
No
Cri:
>80
Dimming:
Step Dimmable
Dlc:
Yes
Dlc Premium:
No
Energy Star:
No
Input Voltage:
120-277
Lamp Technology:
B
Lamp Type:
HID Replacement
Led Module Included:
No
Legacy Equivalent:
250W MH
Not Suitable For Sale In California:
No
Product Weight:
2.1 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Selectable Lumens Output:
7300/7800/7500
Selectable Power:
54/45/36
T24 Ja8:
No
Ul:
No
Warranty Years:
5
Wireless Control:
No

Keystone KT-LED54PSHID-EX39-8CSB-D – Frequently Asked Questions

1) Will a Keystone KT-LED54PSHID-EX39 LED lamp screw into my existing 250W metal halide fixture?
The Keystone 54W LED HID replacement uses an EX39 mogul base, which is the base a 250W metal halide lamp sits in. It is rated as a 250W MH equivalent. One thing to settle before you order: this is a ballast-dependent lamp (Lamp Technology B), so it runs on line voltage at 120-277V and the existing HID ballast has to come out or be bypassed. If you leave the ballast in circuit, the lamp will not run.
2) Do I need an electrician to install a Type B ballast bypass LED HID lamp, or can maintenance staff do it?
This is line-voltage work inside the fixture, not a lamp swap. The 54W Keystone HID replacement is a Type B lamp fed 120-277V direct, so someone has to open the fixture, remove or bypass the metal halide ballast, and land the sockets on line voltage. In most commercial and institutional buildings that is licensed electrician work. If you want a change-the-bulb-and-walk-away retrofit for your in-house crew, you want a Type A (ballast-compatible) lamp instead, not this one.
3) Can I put this 54W LED HID lamp on a dimmer?
No, not on a standard dimmer. The lamp is step dimmable, meaning the output changes in fixed increments via the selectable power settings rather than smoothly on a 0-10V or phase-cut control. There is no wireless or networked control built in either. If your spec calls for continuous dimming or a lighting control system tie-in, this is the wrong lamp for that opening.
4) How many lumens does the Keystone 54W Power Select HID replacement put out at each wattage setting?
Three settings, and the output does not track wattage the way you would expect: 7300, 7800, and 7500 lumens across the 54W, 45W, and 36W steps. Color temperature is separately selectable at 3000K, 4000K, or 5000K. CRI is greater than 80 at all settings. Set the switches before the lamp goes up in the fixture, because on a high-bay or a pole head you are not getting back to it easily.
5) Can I use one LED HID lamp across a warehouse, a parking garage, and an office corridor instead of stocking three SKUs?
That's the point of the selectable build. Model KT-LED54PSHID-EX39-8CSB-D carries three power levels (54/45/36W) and three color temperatures (3000K, 4000K, 5000K) in the one lamp, so a property manager or MRO buyer can stock a single part and set it to 5000K for a garage, 4000K for a warehouse aisle, and 3000K where a warmer look is wanted. Same base, same EX39 socket, same 120-277V range everywhere.
6) Will this LED lamp light the whole fixture or leave a dark spot under it like some corn lamps?
Beam angle is a full 360 degrees, so the Keystone 54W HID replacement throws light all the way around the lamp body rather than in one direction. That suits it to open reflector fixtures, shoebox heads, wall packs, and high bays where the original metal halide lamp radiated in every direction and the fixture reflector did the aiming. In a deep enclosed or gasketed fixture, heat around the lamp is the thing to watch, not the distribution.
7) How long before I have to get the lift back out to change these lamps again?
Rated life is 50,000 hours. On a warehouse burning roughly 12 hours a day that is a bit over 11 years, against the 10,000 to 20,000 hours typical of the metal halide lamp coming out. For a facility running lifts or bucket trucks for relamping, that relamp interval is usually where the money is, not the wattage.
8) How much does a 54W EX39 LED HID replacement lamp weigh, and will my existing socket hold it?
The lamp weighs 2.1 lbs. That is well under the 250W metal halide lamp it replaces, so an EX39 mogul socket that was carrying the original HID lamp is not being asked to do more. In a pole-mounted or pendant fixture that gets vibration, the lighter lamp is easier on the socket shell.
9) What is the actual part number to order for the Keystone 54W Power Select Color Select EX39 lamp?
Order Keystone KT-LED54PSHID-EX39-8CSB-D. That single model covers all three wattages and all three color temperatures, so there is no separate part number per setting. A distributor quoting this only needs the one number.
How fast can I get the Keystone KT-LED54PSHID-EX39-8CSB-D delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Keystone KT-LED54PSHID-EX39-8CSB-D come with a warranty?
Absolutely. The Keystone KT-LED54PSHID-EX39-8CSB-D is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Keystone KT-LED54PSHID-EX39-8CSB-D?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Keystone KT-LED54PSHID-EX39-8CSB-D from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
