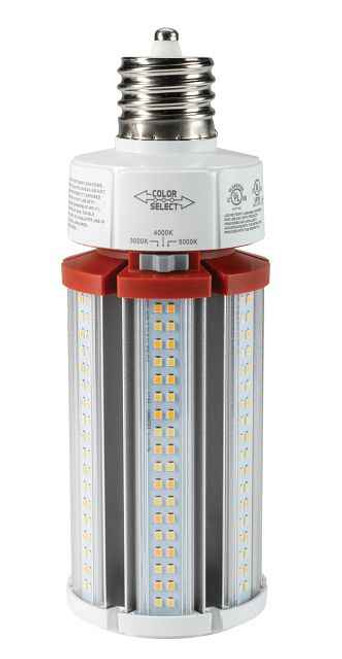

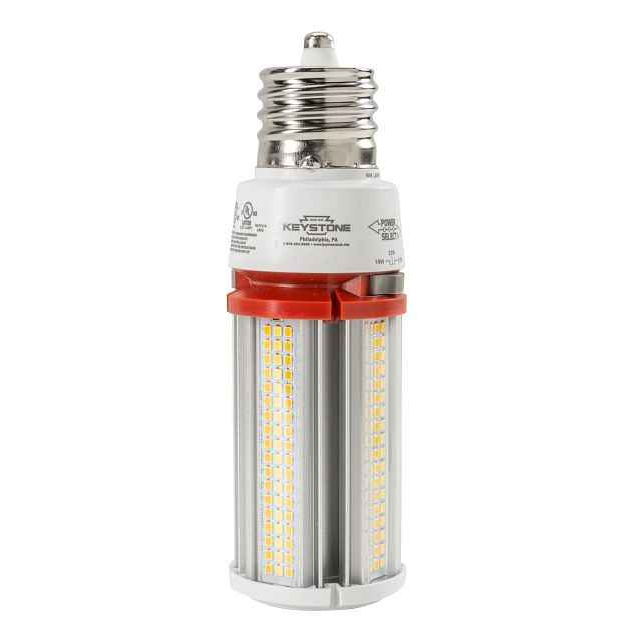

Keystone LED HID Replacement Lamp with Power Select & Color Select Technology EX39 Base 27W

Keystone LED HID Replacement Lamp with Power Select & Color Select Technology EX39 Base 27W

(No reviews yet) Write a Review

Model: KT-LED27PSHID-EX39-8CSB-D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$111.30
$65.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone LED HID Replacement Lamp with Power Select & Color Select Technology

Advanced LED retrofit solution with selectable power and color temperature options

The Keystone LED HID Replacement Lamp delivers professional-grade lighting performance with innovative Power Select and Color Select technology. This versatile EX39 base lamp provides selectable power options of 27/22/18 watts and color temperatures of 3000K/4000K/5000K, making it an ideal 100W metal halide replacement for diverse commercial and industrial applications. With 50,000-hour rated life and step dimmable functionality, this lamp offers reliable long-term performance.

Professional Features & Benefits

  • Selectable Power Options (27/22/18W): Customize wattage to match specific lighting requirements and optimize energy efficiency for your application.
  • Color Select Technology (3000K/4000K/5000K): Choose from warm, neutral, or cool white color temperatures to achieve the desired ambiance and visual comfort.
  • 100W Metal Halide Replacement: Direct retrofit solution that significantly reduces energy consumption while maintaining comparable light output.
  • 50,000-Hour Rated Life: Extended operational life reduces maintenance costs and lamp replacement frequency in commercial environments.
  • Step Dimmable Capability: Provides lighting control flexibility for various operational scenarios and energy management strategies.
  • 360-Degree Beam Angle: Omnidirectional light distribution ensures comprehensive area coverage and uniform illumination patterns.
  • DLC Listed Quality: Meets DesignLights Consortium standards for energy efficiency and performance reliability in commercial applications.

Technical Specifications

  • Accessory Device: No
  • Base Type: EX39
  • Beam Angle: 360
  • Cec T20: No
  • Cri: >80
  • Dimming: Step Dimmable
  • Dlc: Yes
  • Dlc Premium: No
  • Energy Star: No
  • Input Voltage: 120-277
  • Lamp Technology: B
  • Lamp Type: HID Replacement
  • Led Module Included: No
  • Legacy Equivalent: 100W MH
  • Not Suitable For Sale In California: No
  • Product Weight: 0.84 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3000/4000/5000
  • Selectable Lumens Output: 3500/3900/3800
  • Selectable Power: 27/22/18
  • T24 Ja8: No
  • Ul: No
  • Warranty Years: 5
  • Wireless Control: No

Professional Applications

  • Warehouse and Industrial Facilities
  • Retail and Commercial Spaces
  • Parking Garages and Covered Areas
  • Manufacturing and Production Environments
  • Educational and Institutional Buildings
  • Healthcare and Medical Facilities
  • Municipal and Government Buildings

Why Choose Keystone Quality?

Keystone delivers reliable LED lighting solutions backed by a comprehensive 5-year warranty and DLC listing certification. The robust construction and 0.84-pound lightweight design ensure easy installation and long-term durability in demanding commercial environments, while the wide 120-277V input voltage range provides versatile compatibility across various electrical systems.

Manufacturer Resources

Product Specs

Accessory Device:
No
Base Type:
EX39
Beam Angle:
360
Cec T20:
No
Cri:
>80
Dimming:
Step Dimmable
Dlc:
Yes
Dlc Premium:
No
Energy Star:
No
Input Voltage:
120-277
Lamp Technology:
B
Lamp Type:
HID Replacement
Led Module Included:
No
Legacy Equivalent:
100W MH
Not Suitable For Sale In California:
No
Product Weight:
0.84 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Selectable Lumens Output:
3500/3900/3800
Selectable Power:
27/22/18
T24 Ja8:
No
Ul:
No
Warranty Years:
5
Wireless Control:
No

Keystone KT-LED27PSHID-EX39-8CSB-D – Frequently Asked Questions

1) Will the Keystone KT-LED27PSHID-EX39-8CSB-D work on my existing metal halide ballast, or do I have to bypass it?
This is a line voltage lamp, not a ballast-compatible retrofit. It runs on 120-277V input, so the existing HID ballast has to be removed or bypassed and the socket wired direct to line. Once that's done it drops into the same EX39 mogul socket and replaces a 100W metal halide lamp.
2) How much light do I actually get at each wattage setting on this Keystone Power Select lamp?
Output runs 3500/3900/3800 lumens across the 27/22/18W settings. Note the middle setting is the brightest of the three, so 22W is the efficiency sweet spot. CRI is greater than 80 at all settings.
3) Can one lamp cover multiple buildings with different color temperatures, so I stop stocking three SKUs?
That's the point of Color Select. One part number, KT-LED27PSHID-EX39-8CSB-D, covers 3000K, 4000K and 5000K plus three wattages, so a property manager or MRO stockroom can carry a single lamp and set it at install to match whatever is already in that building.
4) Does this lamp work on a dimmer?
It is step dimmable, not smooth 0-10V or phase dimming. That means fixed output levels rather than continuous control, and it will not behave correctly on a standard wall dimmer. There is no wireless or networked control built in.
5) Can I use this in a wall pack or shoebox where light needs to go one direction?
Beam distribution is 360 degrees, omnidirectional like the HID lamp it replaces. In an open fixture with a reflector that's fine, but in a fixture where you want the light thrown one way, a directional or horizontal-optic HID replacement lamp is the better choice. Vertical open-bottom fixtures, garage canopies and high bays are where the 360 degree pattern earns its keep.
6) How long before I'm back up on the lift to change these out?
Rated life is 50,000 hours. On a parking garage or warehouse running roughly 12 hours a day that's over eleven years of service, against the one to three year relamp cycle a 100W metal halide typically forces. That maintenance interval is usually the number that justifies the retrofit, not the wattage.
7) Is anything else needed to install this, like a separate LED driver or module?
No separate LED module or driver kit ships with it or is needed. The driver is integral to the lamp. At 0.84 lbs it is light enough to hang from the socket without extra support in most HID fixtures. The only labor beyond screwing it in is bypassing the old ballast.
