6-32 x 1 in. Round Head Tri-Drive Machine Screws - Steel Zinc - 1000qty
Features
- Made in the USA
- 6-32 Diameter, 1" Length
- Round head with slotted, Phillips and square Drive
- Steel Zinc Material
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 1000 units
- Division:
- Electrical H1
- Fastener Head Type:
- Round
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Material:
- Steel Zinc
Metallics TRM63M – Frequently Asked Questions

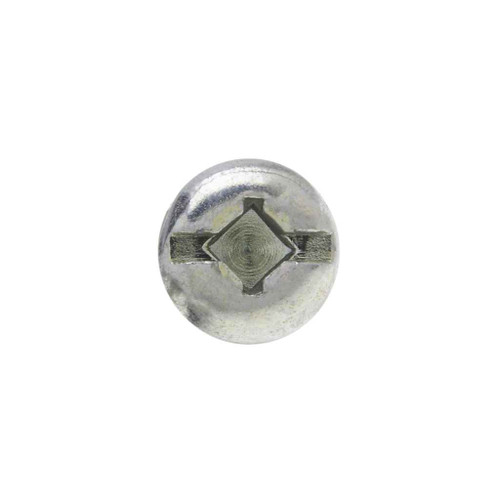

1) What does tri-drive mean on the Metallics TRM63M machine screw?
Tri-drive means one screw head accepts three drivers: a slotted bit, a Phillips bit, and a square (Robertson) bit. On the TRM63M the round head is cut for all three, so whatever is already in the pouch will turn it. Handy on service work where you are not going back to the truck for a specific bit.
2) Will a 6-32 x 1 inch machine screw thread into a standard electrical box or device ring?
Yes. 6-32 is the standard thread for electrical device mounting, including outlet and switch boxes, mud rings, and plaster rings, so the TRM63M threads straight into those tapped holes. The 1 inch length gives extra reach when you are pulling a device out through deep plaster, tile, or stacked rings rather than mounting flush.
3) Is a round head screw the right choice for mounting a device in a box?
The TRM63M has a round head, which sits proud of the surface with a domed profile rather than pulling flush. That is fine for mounting straps, brackets, clamps, and grounding hardware inside a box. If you need the head to sit flush in a countersunk hole, or flat under a cover plate, you want a flat head or oval head 6-32 instead.
4) Are zinc plated steel screws OK for outdoor or damp locations?
The TRM63M is steel with a zinc finish. Zinc plating handles indoor and dry or protected locations well, and gives limited protection in occasional damp. For sustained wet, exterior, or corrosive environments, specify stainless steel 6-32 machine screws instead of zinc plated steel.
5) Do I need to order a specific drive type for the Metallics TRM63M?
No separate drive selection. The TRM63M is a single model, ordered as TRM63M, and every screw carries the combination slotted, Phillips, and square recess. There is no Phillips-only or square-only version to choose between.
6) Do machine screws like this need a nut, or do they go into tapped holes?
Machine screws such as the 6-32 TRM63M have a uniform machine thread and no self-tapping point, so they need either a pre-tapped hole or a matching 6-32 nut. Electrical boxes, rings, and device straps come tapped 6-32 already. If you are fastening through sheet metal with no tap, you need a 6-32 nut, a tapped insert, or a self-drilling screw instead.
7) Are these machine screws made in the USA?
Yes, the Metallics TRM63M 6-32 x 1 in. round head tri-drive machine screw is made in the USA. That matters on public and institutional work carrying domestic sourcing requirements.
