Metallics JFMP83SS 6-32 x 2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JFMP83SS 6-32 x 2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFMP83SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.56
$0.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6-32 x 2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
    • 6-32 Diameter, 2" Length
    • 18-8 Stainless Material
    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.
    • Flat head with Phillips Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.069 - 0.083 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.238 - 0.262 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.22
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.094
Phillips Recess Diameter:
0.168
Phillips Recess Width:
0.029
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.69 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.021 - 0.036 Above
Sub Division:
Electrical-E H2
Tensile Strength:
550 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFMP83SS – Frequently Asked Questions

1) Will a 6-32 machine screw thread into my device yoke or wall plate ears?
The Metallics JFMP83SS is a 6-32 UNC machine screw cut to the ANSI/ASME B1.1 thread standard, 32 threads per inch, which is the standard thread used for electrical device and plate mounting hardware. At 2 inches long it is for deep boxes, mud rings, or stacked plaster rings where the standard short device screw won't reach.
2) Can I use these on a Buy American or ARRA funded project?
No. The JFMP83SS is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded job with domestic sourcing requirements you will need a domestically manufactured fastener.
3) Will the flat head sit flush, and how big is the head?
Flat head, so it seats flush into a countersunk hole. The head measures 0.238 to 0.262 in. across with a head height of 0.069 to 0.083 in., so it needs an 82 degree countersink of roughly a quarter inch diameter to finish flush. On an un-countersunk flat plate the head will stand proud.
4) What size Phillips bit do I need for these screws?
A #2 Phillips. The recess is 0.168 in. diameter, 0.094 in. deep and 0.029 in. wide, which is the standard #2 cross recess, so a #1 bit will cam out and a #3 won't seat.
5) Are stainless machine screws the right choice for a damp or washdown location instead of plated steel?
That is the reason to pick these. The 18-8 stainless body resists general atmospheric corrosion and holds strength at elevated operating temperatures better than plated steel, which is why these go into food processing machinery and refrigeration equipment as well as electrical, plumbing and HVAC work. If the location is dry interior and you only need mounting strength, plated steel is the cheaper screw.
6) How much pull can a 6-32 stainless machine screw take?
Rated at 550 lb minimum tensile, with hardness of Rockwell B85-B95. Note that Metallics states hardness and tensile figures for stainless machine screws as guides only, since there is no national performance standard for stainless machine screws. For a structural or load-bearing connection, specify a graded steel fastener instead.

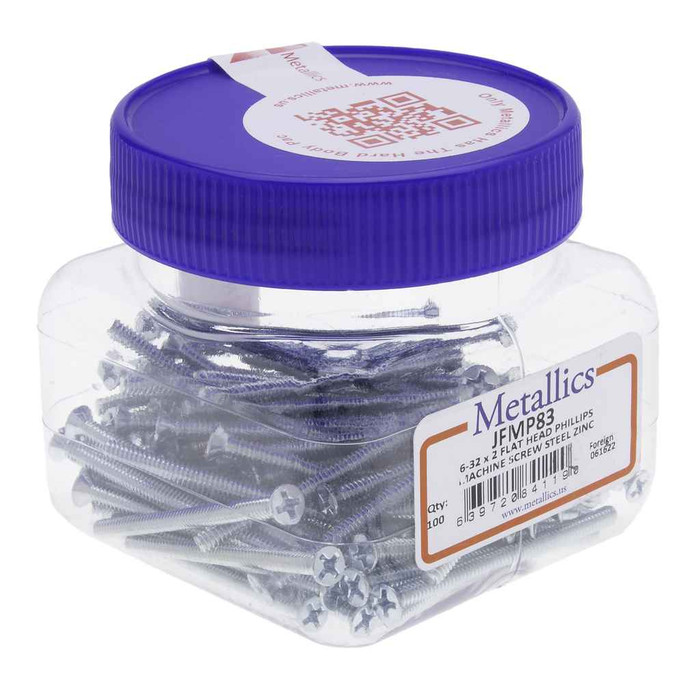

7) How many screws come in a jar of Metallics JFMP83SS?
They ship in a jar of 100, which is also the order minimum. The jar weighs 0.69 lbs.
8) Do these screws meet a dimensional spec I can put on a submittal?
Head and recess dimensions conform to ASME B18.6.3-1998, threads to ANSI/ASME B1.1, with material called out to SAE. Gaging diameter is 0.22 in. with protrusion 0.021 to 0.036 above.
