Metallics JDWS3CD 6 x 1-1/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.36
$0.36

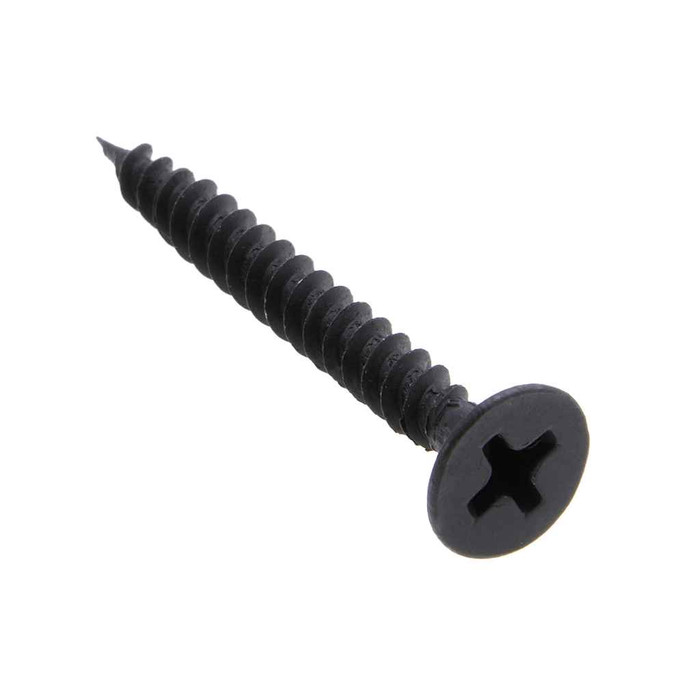

Metallics JDWS3CD 6 x 1-1/4 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 100qty

Metallics JDWS3CD 6 x 1-1/4 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - Each

(No reviews yet) Write a Review

Model: JDWS3CD
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.36
$0.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1-1/4 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide;deviations from these specifications may occur.

  • Features

    • Steel Black Phosphate Material
    • Bugle Head with Phillips Drive
    • 6 Diameter, 1-1/4" Length
    • Fine Threads
    • Made in the USA

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
United States
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.031 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.347 in.
Fastener Length:
1/1/04
Field Application:
Hardwood, Light Gauge Steel and Light Gauge Aluminum
Hardness:
Rockwell C44
Language Code:
EN
Material Standard:
AISI 1018
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Fine_Thrd_Dry_Scr_Blk_Phos.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.106
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.46 lbs
Product Width:
3 in
Screw Point Type:
Sharp Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Spacing:
Fine
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
DWS
Product Finish:
Black Phosphate
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics JDWS3CD – Frequently Asked Questions

1) Are the Metallics JDWS3CD fine thread drywall screws right for metal studs or wood framing?
Fine thread, 18 threads per inch, with a sharp point. Metallics lists the field application as hardwood, light gauge steel and light gauge aluminum, so the JDWS3CD is the screw for hanging board on light gauge steel studs or into hardwood. For soft wood framing, a coarse thread drywall screw holds better.
2) Are black phosphate drywall screws OK to use outdoors or in a damp area?
No. Black phosphate is a dry interior finish, mild corrosion resistance only. The JDWS3CD is steel with a black phosphate finish, so keep it to interior board work and use a coated or galvanized fastener where there is exposure to moisture or exterior conditions.
3) Do Metallics JDWS3CD drywall screws qualify for a Buy American or ARRA funded job?
Country of origin is the United States and the screws are made in the USA, but Metallics lists them as not Buy American compliant and not ARRA compliant. If your project carries either requirement in the contract, these will not satisfy the documentation.
4) What driver bit do I need for Metallics JDWS3CD drywall screws?
A #2 Phillips. The drive is Phillips with a recess diameter of 0.176 to 0.201 inch and a recess depth of 0.106 inch, so a standard #2 Phillips bit or a dimpler bit seats correctly.
5) Will the bugle head on these screws countersink flush without tearing the paper face?
That is what the bugle head is for. The head on the JDWS3CD measures 0.315 to 0.347 inch across with a head height of 0.020 to 0.031 inch, so the curved underside pulls the screw flush into the board face and leaves a dimple you can skim over instead of a torn edge.
6) How are Metallics JDWS3CD screws packaged and what is the minimum order?
They ship in a jar, 100 screws, and 100 is the order minimum. Jar weight is 0.46 lbs. For larger jobs, other sizes and quantities are available by request.
7) Will these screws snap when I drive them into 25 gauge steel track?
The JDWS3CD is hardened to Rockwell C44 from AISI 1018 steel, which is the normal case hardened range for drywall screws and is what lets the sharp point pierce light gauge steel without the shank twisting off. Drive at a moderate speed with a #2 Phillips and let the clutch stop at the dimple; over-driving is what breaks heads off, not the steel.
8) Are the head and thread dimensions on these drywall screws held to a published standard?
No single industry standard governs bugle head drywall screw dimensions, and Metallics states the listed values are a guide with slight deviations acceptable. The steel itself is to AISI 1018 and the thread is a fine UNF form at 18 TPI. If your submittal needs a hard dimensional standard, specify the fastener by the steel grade and thread spec rather than head geometry.
