Metallics JFWPB06 6 x 1-3/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

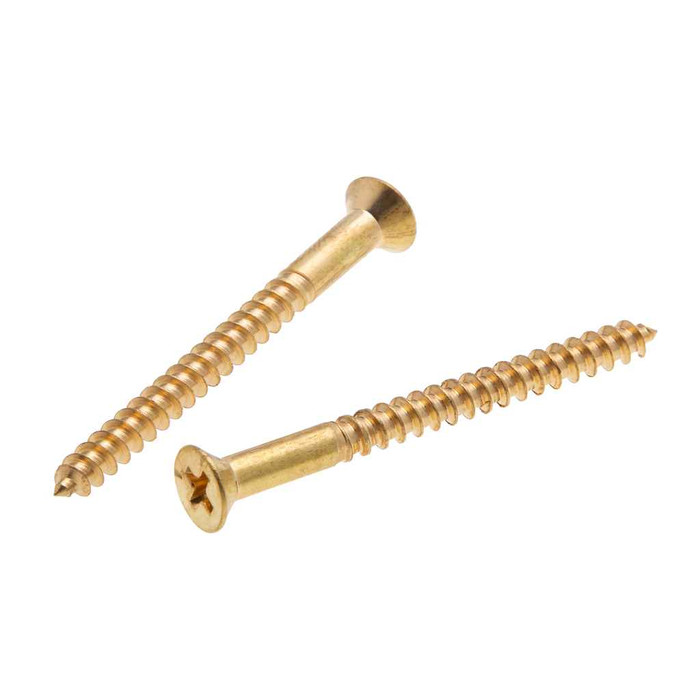

Metallics JFWPB06 6 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB06 6 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB06
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

  • Features

    • Flat Head with Phillips Drive
    • 6 Diameter, 1-3/4" Length
    • Brass Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.083 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.244 - 0.279 in.
Fastener Length:
1/3/04
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.083 - 0.106
Phillips Recess Diameter:
0.161 - 0.174
Phillips Recess Width:
0.029
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.49 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB06 – Frequently Asked Questions

1) Will a #6 x 1-3/4 in. flat head brass wood screw sit flush in a countersunk hole?
Yes, that is what the flat head is for. The JFWPB06 head measures 0.244 to 0.279 in. across with a head height of 0.083 in., so an 82 degree countersink of that diameter brings the top of the head level with the surface. Drill the countersink to the larger figure if your stock varies.
2) What driver bit do I need for the Metallics JFWPB06 brass wood screws?
A #2 Phillips bit. The JFWPB06 is a Phillips drive screw with a recess diameter of 0.161 to 0.174 in. and a recess depth of 0.083 to 0.106 in., so a #2 seats properly without camming out. Brass is soft, so stay with the correct bit size and keep torque down.
3) Why would I use brass wood screws instead of steel on an electrical or trim job?
Brass is non-magnetic, non-sparking, and corrosion resistant, which is why it shows up on panel trim, ground bonding hardware, marine and exterior millwork, and visible hardware where a yellow head is wanted. The JFWPB06 is solid brass, not plated steel. Trade-off: brass has far less shear and torsional strength than steel, so pre-drill and do not drive it with an impact.
4) Do these brass screws meet a recognized dimensional standard for spec work?
The JFWPB06 is made to ASME B18.6.1, with threads to ASME B18.6.1-1997. That is the inch-series wood screw standard, so head, recess, and thread dimensions are interchangeable with any other B18.6.1 #6 wood screw on your drawing.
5) Can I use these on a Buy American or ARRA funded project?
The JFWPB06 is flagged compliant for both ARRA and Buy American. Country of origin is China, so if your specification requires domestic melt and manufacture rather than the Buy American compliance flag, confirm which standard your contract is written to.
6) What pilot hole should I drill for a #6 brass wood screw in hardwood?
Pre-drilling is not optional with brass. A #6 screw at 18 threads per inch wants a pilot roughly matching the root diameter in hardwood (about 7/64 in.) and slightly smaller in softwood, plus a clearance hole through the top piece for the unthreaded shank. Brass heads shear easily if the screw binds, so drill full depth for all 1-3/4 inches.
7) Are the Metallics JFWPB brass wood screws sold loose or in a package, and is there a minimum?
They ship in a jar, with a minimum order of 100 count. Other sizes and quantities are available by request.
