Metallics JTEK12PV 6 x 1 in. P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.19
$0.19

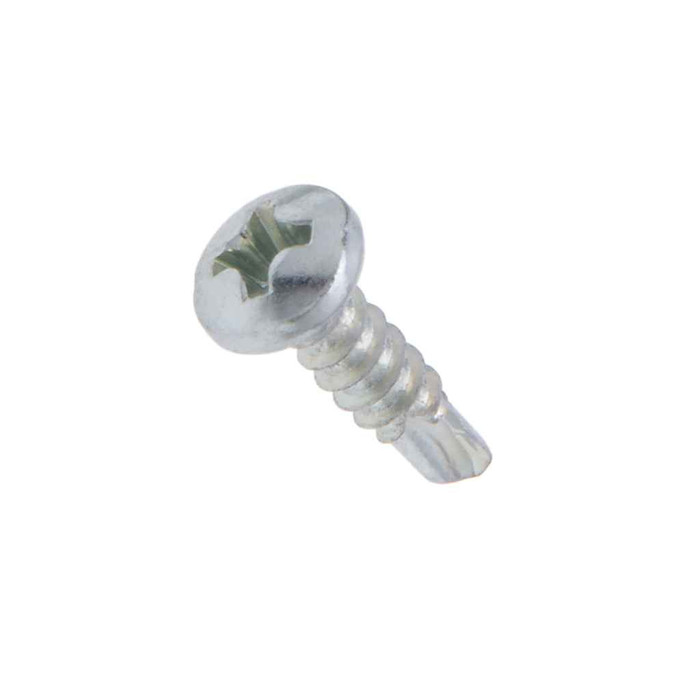

Metallics JTEK12PV 6 x 1 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - Steel Zinc - 500qty

Metallics JTEK12PV 6 x 1 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEK12PV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.19
$0.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - Steel Zinc - 500qty

  • Additional Notes

    • Other sizes and quantities available by request | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

  • Features

    • Pan Head with Phillips Drive
    • #2 Drill Point
    • Steel Zinc Material
    • 6 Diameter, 1" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Color:
Silver
Fastener Head Height:
0.087 - 0.097 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.256 - 0.27 in.
Fastener Length:
1
Hardness:
Rockwell C32-40
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Hd_Phil_Self-Drill_TS_Steel_and_SS.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.035 - 0.090 IN
Phillips Recess Diameter:
0.159
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.95 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.055 - 0.080
Screw Point Type:
Drill Point
Sub Division:
Electrical-E H2
Thread Per Inch:
20
Thread Standard:
SAE J78 - 2013
Thread Type:
UNC
Torsional Strength:
24 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEK
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEK12PV – Frequently Asked Questions

1) Will a #6 x 1 in. self-drilling screw hold in a steel stud for mounting electrical boxes and strut?
Yes, within its range. The JTEK12PV is a #6 diameter by 1 in. long Type BSD self-drilling and tapping screw with 20 threads per inch in a UNC thread form, and it drills and taps its own hole in 0.035 to 0.090 in. steel in one pass, so no pilot hole is needed in a standard steel stud or box. Minimum torsional strength is 24 lb-in, so drive it with a screwgun set to a clutch rather than an impact driver.
2) What size Phillips bit drives these Metallics JTEK screws?
A #2 Phillips bit. The recess diameter is 0.159 in. with a gaging depth of 0.055 to 0.080 in., so a worn #2 bit will cam out and strip the head before the point finishes drilling. Keep a fresh bit in the gun on a long run.
3) How much clearance does the pan head on these screws take up?
The pan head sits 0.087 to 0.097 in. above the surface and is 0.256 to 0.270 in. across. A pan head is not countersunk, so if you need the fastener flush with the panel face, use a flat head instead. The bearing surface on this head width is what gives it holding power on sheet metal and plate washers.
4) Are these screws suitable for outdoor or damp locations?
The JTEK12PV is steel with a zinc finish, silver in appearance. Zinc plating is a mild corrosion coating meant for dry interior work, panel boards, raceway, and interior stud framing. For exterior, wet locations, or coastal exposure, specify a stainless self-drilling screw instead.
5) Do these Metallics screws meet Buy American requirements for a government or institutional job?
The JTEK12PV is flagged as both ARRA compliant and Buy American compliant. Country of origin is listed as multiple, so if your specification requires a single documented origin, request the certification for the specific lot you receive.
6) What standards do these self-drilling tapping screws conform to?
Head and recess dimensions follow ASME B18.6.3-2010, and the thread and drill point follow SAE J78 - 2013. Core hardness is Rockwell C32-40, which is what lets the point cut steel without the threads deforming. Note that SAE J78 does not cover #7 diameter drill screws, so a submittal calling out a #7 cannot be matched to that standard.
7) How are these Metallics self-drilling screws packaged and what is the minimum order?
They come in a jar, with an order minimum of 500 count. Jar weight is 1.95 lbs and the container measures 3 x 3.6 x 3 in. per the published product dimensions. Convenient for a van or a gang box rather than a loose bulk carton.
