Metallics JTEK34P 6 x 3/8 in. ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.14
$0.14

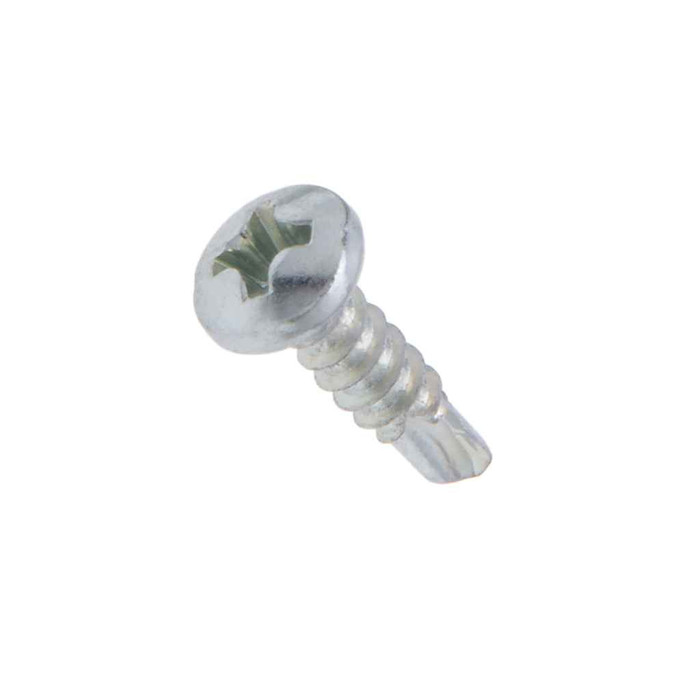

Metallics JTEK34P 6 x 3/8 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - Steel Zinc - 100qty

Metallics JTEK34P 6 x 3/8 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEK34P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.14
$0.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 3/8 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - Steel Zinc - 100qty

  • Features

    • #2 Drill Point
    • Pan Head with Phillips Drive
    • 6 Diameter, 3/8" Length
    • Steel Zinc Material

  • Additional Notes

    • Other sizes and quantities available by request | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Color:
Silver
Fastener Head Height:
0.087 - 0.097 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.256 - 0.27 in.
Fastener Length:
8-Mar
Hardness:
Rockwell C32-40
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Hd_Phil_Self-Drill_TS_Steel_and_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.035 - 0.090 IN
Phillips Recess Diameter:
0.159
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.22 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.055 - 0.080
Screw Point Type:
Drill Point
Sub Division:
Electrical-E H2
Thread Per Inch:
20
Thread Standard:
SAE J78 - 2013
Thread Type:
UNC
Torsional Strength:
24 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEK
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEK34P – Frequently Asked Questions

1) Do I need to pre-drill a pilot hole for the Metallics JTEK34P screws?
No pilot hole needed. It is a Type BSD self-drilling and tapping screw, so the drill point cuts its own hole and the threads tap it in one pass within the 0.035 to 0.090 in. panel range it is rated for.
2) Is this screw Buy American and ARRA compliant for a federal or public works job?
Metallics lists the JTEK34P as both Buy American compliant and ARRA compliant, which is what an institutional or government procurement file usually needs on a fastener line item.
3) What driver bit do I need for these Phillips pan head self-drilling screws?
A #2 Phillips bit. The recess is a Phillips drive with a 0.159 in. recess diameter and a gaging depth of 0.055 to 0.080 in., so a #2 tip seats fully. Using a #1 will cam out and strip the recess.
4) How many screws come in a jar, and can I buy fewer than 100?
These ship in a jar with an order minimum of 100 count. Metallics notes other sizes and quantities are available by request, but 100 is the smallest increment on this item.
5) Will a #6 x 3/8 in. zinc self-drilling screw hold up outdoors or in a damp location?
The JTEK34P is carbon steel with a zinc finish, which is a dry-interior corrosion coating. For wet, exterior, or washdown locations, specify a stainless self-drilling screw instead. Note the country of origin is listed as multiple.
6) What standards do these Metallics self-drilling screws meet?
Dimensions are to ASME B18.6.3-2010 and the thread is to SAE J78-2013, UNC at 20 threads per inch. Hardness is Rockwell C32-40 with a minimum torsional strength of 24 lb-in. Metallics notes SAE J78 does not cover #7 diameter drill screws.
7) Will the pan head sit flush enough to mount a device or bracket flat against sheet metal?
A pan head does not sit flush, it sits on top of the surface. Head height runs 0.087 to 0.097 in. and head width 0.256 to 0.270 in., so plan on about a tenth of an inch of stand-off and a quarter-inch bearing footprint. If you need the head buried, use a flush or wafer head screw instead.
8) Is 3/8 in. long enough for screwing into a metal stud or a panel flange?
At 3/8 in. of overall length, the JTEK34P is a short screw built for sheet-to-sheet work where the drill point only needs to clear 0.035 to 0.090 in. of material. It is not meant to pass through a thick spacer or layered assembly, since the point and threads consume most of that 3/8 in. For stacked material, order a longer length in the same series.
