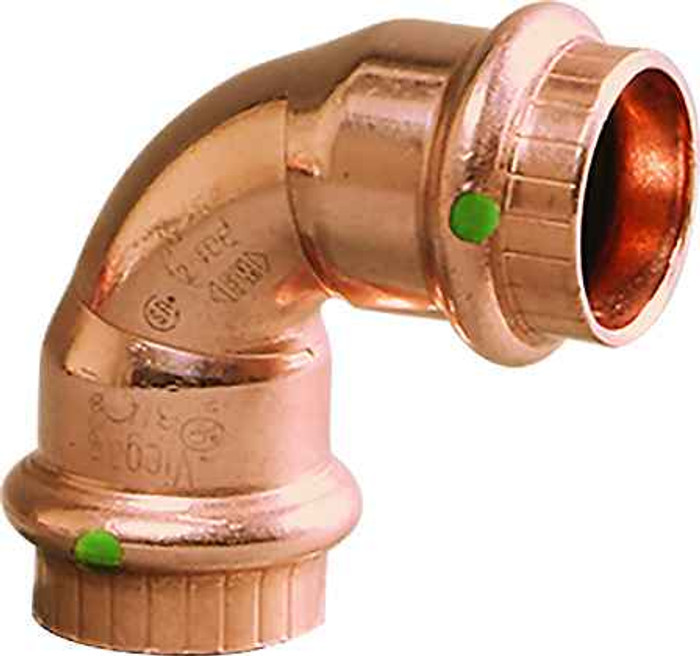

77027 Viega ProPress 90° elbow Smart Connect technology Copper, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- Made In Germany
- Material Type:
- Copper
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 1.5"
- Product Height:
- 2.937"
- Product Weight:
- 0.278 lbs
- Product Width:
- 2.937"
Viega 77027 – Frequently Asked Questions
1) Does the Viega 77027 ProPress elbow take 1 inch copper tube on both ends?
Yes. The 77027 is a 90 degree elbow sized 1 inch by 1 inch, with a press connection on each end (P1 x P2). Both ends slip over nominal 1 inch copper tube and are crimped with a press tool, so there is no soldering on either side of the turn.
2) What does Smart Connect do on a Viega ProPress fitting, and do I still have to press it?
Smart Connect is the feature that lets an unpressed connection be identified during a pressure test, so a fitting that got missed on a large run shows itself instead of hiding behind the insulation. It is not a substitute for pressing. Every 77027 elbow still has to be crimped on both ends with a press tool before the system goes into service.
3) Can I mix the Viega 77027 elbow into an existing soldered copper system?
Yes, as long as the tube you are pressing onto is clean, round, undamaged 1 inch copper. The 77027 has press ends on both sides, so it joins tube to tube. To tie into an existing sweat fitting or a threaded valve you will need a transition fitting, since this elbow offers no solder cup and no threads.
4) Do I order the 77027 elbow by copper tube size or by outside diameter?
Order it by nominal copper tube size. The 1 inch x 1 inch designation on the 77027 refers to 1 inch nominal copper tube, which is the same way type L and type M hard copper is called out on the drawing, not the actual OD.
5) What is the Viega part number and weight for the 1 inch ProPress copper 90 elbow?
Manufacturer part number 77027, made in Germany, and it weighs 0.278 lbs each. That per-piece weight is the number to use when you are building out a carton count for a multi-floor riser package.
