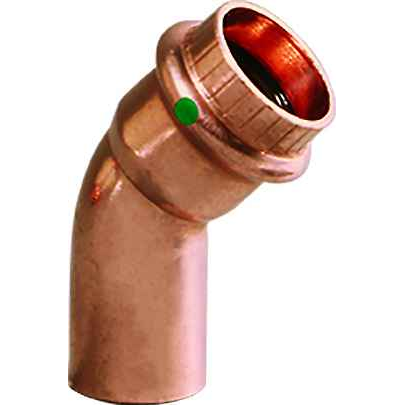

77063 Viega ProPress 45° street elbow Smart Connect technology Copper, 1-1/4'' x 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Material Type:
- Copper
- Product Dimension:
- 1-1/4'' x 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Street Elbows
- Product Type:
- Elbow
- Product Length:
- 1.76"
- Product Height:
- 2.535"
- Product Weight:
- 0.274 lbs
- Product Width:
- 3.276"
- Product Material:
- Copper
Viega 77063 – Frequently Asked Questions
1) What does P x FTG mean on the Viega 77063 ProPress 45 degree elbow?
P x FTG is the reason this one is called a street elbow. One end is a press socket (P) that receives 1-1/4 inch copper tube, and the other end is a fitting-end (FTG) sized like tube itself, so it slips straight into the socket of another 1-1/4 inch press or sweat fitting. That saves you a short cut piece of tube between two fittings when you need to change direction right at a coupling or valve.
2) Will the Viega 77063 45 degree elbow press onto 1-1/4 inch type L copper?
Yes. The 77063 is a copper press fitting sized 1-1/4 inch by 1-1/4 inch, and press copper fittings go on rigid copper tube in that nominal size. Only the socket end gets pressed; the FTG end is the one that goes into another fitting and gets pressed by that fitting's socket.
3) How much space does the Viega 1-1/4 inch 45 degree street elbow take up in a tight chase?
Published dimensions are 3.276 inches wide, 2.535 inches high and 1.76 inches long, and it weighs 0.274 lbs. Worth checking against your chase or joist bay, because a press fitting also needs clearance for the jaw to come around the socket, not just for the fitting body.
4) What is Smart Connect on this Viega ProPress elbow and why does it matter on an inspection?
Smart Connect is the feature built into the ProPress sealing element that lets an unpressed connection leak a small amount during pressure testing, so you find the joint you missed before the walls close up. On a 45 degree street elbow it is the same deal as any other ProPress fitting: press both ends, then test, and anything you skipped shows itself.
