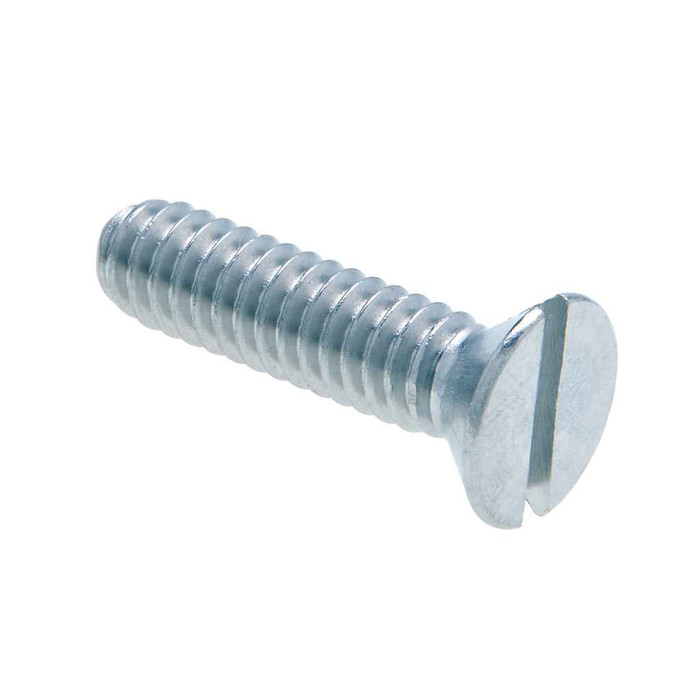

Metallics JFM84 8-32 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM84 8-32 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM84
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.10
$0.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Steel Zinc Material
    • Zinc yellow screws are popular in electronics applications.
    • Flat head with slotted Drive
    • 8-32 Diameter, 1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.084 - 0.1 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.285 - 0.312 in.
Fastener Length:
2-Jan
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.33 lbs
Product Width:
3 in
Slot Depth:
0.029 - 0.045
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Tensile Strength:
850 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM84 – Frequently Asked Questions

1) Does the flat head on this 8-32 screw sit flush, and what countersink does it need?
The JFM84 has a flat head, which seats flush in a countersunk or chamfered hole rather than sitting on the surface. Head width runs 0.285 to 0.312 in. and head height 0.084 to 0.1 in., built to ASME B18.6.3-1998, so it drops into any standard 82-degree countersink sized for a #8 flat head. If your hole is not countersunk, use a round or pan head instead so the head bears on the surface.
2) Will these Metallics screws meet a Buy American requirement on a government or federal job?
No. The JFM84 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic sourcing clause, you need a US-made fastener instead.
3) Can I drive these 8-32 screws with a power driver, or do I need a hand screwdriver?
The JFM84 is slotted drive, not Phillips or combo, with a slot 0.045 to 0.054 in. wide and 0.029 to 0.045 in. deep. A slot cams out easily under a power driver, so hand driving with a properly sized flat-blade is the safer bet. If you want to run them with a drill, pick a Phillips or combination-head #8-32 instead.
4) Are these zinc machine screws strong enough for mounting a heavier device or bracket?
Each screw carries an 850 lb minimum tensile strength with hardness at Rockwell B70-B100, made from AISI 1006-1022 low carbon steel. That is ample for device, plate, and light bracket mounting. For structural or high-load connections, move up to a graded bolt rather than a low carbon machine screw.
5) Is a zinc plated steel machine screw okay for outdoor or damp locations?
The JFM84 is zinc plated steel, which is a dry-location and indoor-protected finish. Zinc gives mild corrosion resistance but will eventually rust in wet, exterior, or washdown service. For damp, corrosive, or coastal work, specify a stainless 8-32 flat head slotted screw instead.
6) What trades use the Metallics FM series 8-32 flat head machine screws?
The FM and FMP series is stocked for electrical, plumbing, and heating and air conditioning work, so it is a general MRO fastener for panel, device, duct accessory, and equipment mounting where an 8-32 thread is called for.
