Metallics JFWPB19 8 x 1 in. Fl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

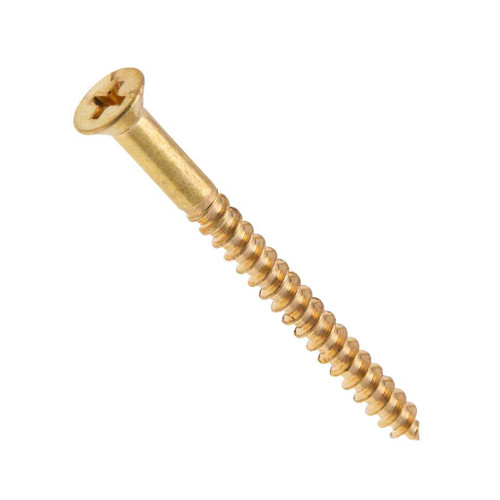

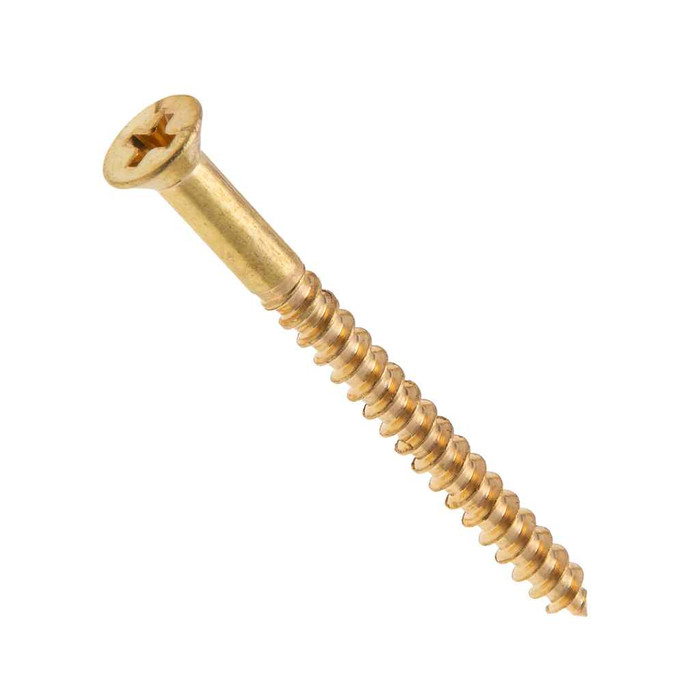

Metallics JFWPB19 8 x 1 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB19 8 x 1 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB19
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 1 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

    • 8 Diameter, 1" Length
    • Brass Material
    • Flat Head with Phillips Drive

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.100 - 0.100 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.292 - 0.332 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Brass.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.113 - 0.136
Phillips Recess Diameter:
0.191 - 0.204
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.48 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Finish:
Zinc
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB19 – Frequently Asked Questions

1) How many Metallics JFWPB19 wood screws come in a package, and can I buy fewer?
The JFWPB19 brass wood screws ship in a jar of 100, and 100 is the order minimum. If you need a different size or a different count, Metallics makes other configurations in the JFWPB series on request.
2) Will a flat head screw sit flush in a countersunk hole on a device plate or box?
Yes, if the hole is countersunk. The JFWPB19 has a flat head measuring 0.292 to 0.332 in. across with a head height of 0.100 in., so it seats flush in a matching 82-degree countersink. In a straight drilled hole without a countersink the head will stand proud by about 0.100 in.
3) Are these brass screws solid brass or brass-plated steel?
Metallics lists the JFWPB19 material as brass. Brass is softer than hardened steel, so pre-drill hardwood and run them in with a driver set low, and treat them as a finish and non-ferrous fastener rather than a structural one.
4) Can I use these on a federally funded job with Buy American requirements?
No. The JFWPB19 brass wood screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. For a Buy American job you will need a domestically sourced fastener instead.
5) What size Phillips bit do I need for a #8 x 1 in. flat head wood screw?
A #2 Phillips driver. The recess on the JFWPB19 measures 0.191 to 0.204 in. diameter and 0.113 to 0.136 in. deep, which is standard #2 territory, so one bit will run the whole jar without cam-out if you keep it seated.
6) How much of the 1 inch length is threaded on these #8 brass wood screws?
Roughly two thirds of the 1 in. length carries thread, at 15 threads per inch, which leaves a short unthreaded shank under the head. That is what lets the screw pull two pieces of wood tight together instead of jacking them apart, so keep the shank in the top piece and the thread in the substrate.
7) Do Metallics JFWPB wood screws meet a dimensional standard I can put on a submittal?
They are built to ASME B18.6.1, with the thread called out to ASME B18.6.1-1997. That is the inch wood screw standard, so head, recess and thread dimensions are to spec rather than proprietary and a #2 Phillips and standard countersink will match.
8) Why would an electrician stock brass wood screws instead of plain steel ones?
Metallics puts the JFWPB series in front of the electrical, plumbing, heating and air conditioning trades. Brass is non-ferrous and non-sparking, which is why it gets specified for mounting plates, cover plates and fittings where a steel screw is not wanted. At #8 x 1 in. it is sized for wood backing and framing, not for masonry or steel studs.
9) What does a jar of 100 of these screws weigh for shipping or a stocking cart?
A full jar of the #8 x 1 in. brass screws is listed at 0.48 lbs. Light enough to carry a few jars in a van bin without thinking about it.
