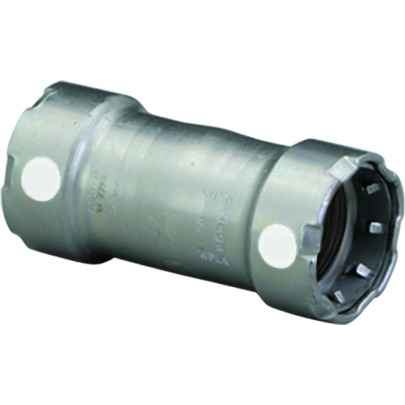

84150 Viega MegaPress coupling No stop Smart Connect technology Carbon steel, 1-1/2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Model Number:
- 5915.5
- Product Dimension:
- 1-1/2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.63"
- Product Height:
- 2.437"
- Product Weight:
- 1.155 lbs
- Product Width:
- 2.437"
- Product Material:
- Carbon steel
Viega V84150 – Frequently Asked Questions
1) What does "no stop" mean on the Viega 84150 coupling, and when do I need it?
A no-stop coupling has no internal pipe stop, so it can slide fully along the pipe. That is what you use for a repair in the middle of a fixed run: cut out the damaged section, slide the no-stop coupling over one end of the existing pipe, bring in the replacement piece, then slide it back to center and press both ends. A stop-type coupling cannot do that because the pipe bottoms out at the shoulder. With no stop, you have to mark your insertion depth on both sides yourself before pressing.
2) Is the Viega 84150 a tee or a coupling?
It is a straight coupling, joining two 1-1/2 inch pipes in line. There is no branch outlet. If you need a branch takeoff on 1-1/2 inch carbon steel, you need a MegaPress tee, not this part.
3) Does the Viega 84150 MegaPress tell you if a joint was not pressed?
It uses Viega's Smart Connect feature, which is built to leak visibly at an unpressed connection during pressure testing so the installer can find and press it before the system goes into service. On a large commercial run with dozens of joints, that is how the crew catches a miss without tearing the ceiling apart later.
4) Can I use a carbon steel MegaPress coupling on copper or PEX?
No. The 84150 is a carbon steel press fitting sized and sealed for carbon steel pipe. Copper tube takes a copper press fitting (ProPress type) and PEX takes a PEX press fitting; the pipe outside diameters and the sealing elements are different. Keep carbon steel fittings on carbon steel pipe.
5) Do I need anything else besides the coupling to make up a 1-1/2 inch MegaPress joint?
The 84150 ships as the fitting only. To make the joint you need a press tool with the correct 1-1/2 inch MegaPress jaw or ring, plus a pipe cutter and a deburring tool, because the pipe end has to be cut square and cleaned before insertion. Since this is a no-stop coupling, you also need to mark insertion depth on both pipe ends yourself.
6) What part number do I order for the Viega 1-1/2 inch MegaPress no-stop coupling?
Order Viega 84150. Viega also catalogs it as model 5915.5, and the UPC is 691514841502. It is made in Germany.
