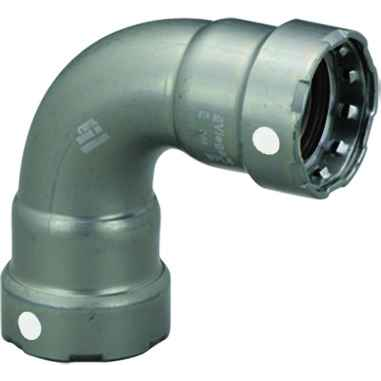

84305 Viega MegaPress 90° elbow Smart Connect technology Carbon steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- United States
- Material Type:
- Carbon Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 2.878"
- Product Height:
- 1.264"
- Product Weight:
- 0.381 lbs
- Product Width:
- 2.878"
- Product Material:
- Carbon steel
Viega 84305 – Frequently Asked Questions
1) Does this Viega elbow have Smart Connect, and what does that actually do for me on an inspection?
Yes, the 84305 includes Viega's Smart Connect feature. Its purpose is leak identification: an unpressed connection will weep during pressure testing instead of holding, so a joint you missed shows itself before the system is closed up. It does not replace pressing the joint, it just makes a skipped press obvious.
2) How much space do I need to fit a 1/2 inch MegaPress 90 in a tight chase?
The fitting itself is compact: 2.878 inches in length and width, 1.264 inches in height, weighing 0.381 lbs. The real constraint in a chase is not the fitting but the press tool jaw, which needs clearance around the full circumference of each end to close. Plan your layout around jaw access, not the elbow body.
3) Is the Viega 84305 made in the USA? I have a domestic-content requirement on the job.
Yes, the 84305 MegaPress elbow is made in the USA. If your spec requires documented domestic content, order by manufacturer part number 84305 so the submittal matches what arrives.
4) Do I need to thread the pipe before using this elbow?
No threading required. Both ends of the 84305 are press ends, so the pipe is cut, deburred, marked for insertion depth, and pressed with the correct jaw. That is the main reason crews move to MegaPress on steel: no cutting oil, no threader, no hot work in an occupied building.
5) What exactly comes when I order Viega 84305?
One carbon steel 90 degree elbow, 1/2 inch x 1/2 inch, with both press ends and their sealing elements factory installed. No press tool or jaws are included, and no pipe. The press tool and the 1/2 inch MegaPress jaw are separate items you need on site.
6) Is 84305 the same size on both ends, or is it a reducing elbow?
It is a straight 1/2 inch x 1/2 inch elbow, same size both ends, not a reducer. If you need to step down from a larger main, you want a reducing elbow or a separate reducing coupling ahead of this fitting.
