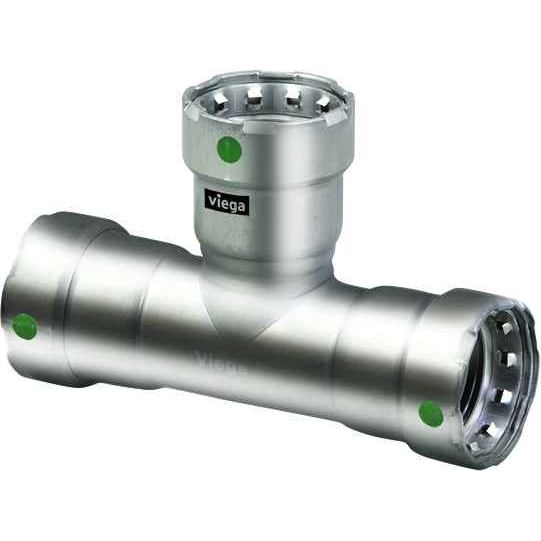

90110 Viega MegaPress tee Smart Connect technology 316 stainless steel, 3/4'' x 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3/4'' x 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.575"
- Product Height:
- 1.496"
- Product Weight:
- 0.569 lbs
- Product Width:
- 2.992"
- Product Material:
- 316 stainless steel
Viega 90110 – Frequently Asked Questions
1) Is the Viega 90110 MegaPress tee a 3/4 inch on all three ports?
Yes, the 90110 is an equal tee: 3/4 inch by 3/4 inch by 3/4 inch, with press connections on all three ports. No reducer bushing needed if your run and branch are all 3/4 inch.
2) What material is the Viega 90110 MegaPress tee, and where can I use it?
It is 316 stainless steel, the more corrosion-resistant of the common stainless grades, which is why it gets specified where a carbon steel or zinc-coated fitting would be attacked. Body is made in Germany.
3) What is Smart Connect on the Viega 90110 MegaPress tee?
Smart Connect is the feature that makes an unpressed connection leak visibly during pressure testing, so an inspector or the installer can find a joint that was missed before the walls close up. It is built into the 90110 tee, not a separate part to order.
4) How much room do I need to fit the Viega 90110 MegaPress tee between other fittings?
The tee measures 4.575 inches long, 2.992 inches wide and 1.496 inches high, and it weighs 0.569 lbs. Plan the run length off the 4.575 inch figure and leave clearance beyond that for the press jaw to close around each port, which needs more space than the fitting body alone.
5) Can I mix the stainless Viega 90110 tee with carbon steel MegaPress fittings on the same run?
Stick with one metal where you can. The 90110 is 316 stainless; joining it directly to black or carbon steel puts two dissimilar metals in contact, which is a galvanic corrosion risk. If a system is running stainless pipe, use stainless fittings throughout.
6) What is the Viega part number for the 3/4 inch stainless MegaPress tee?
Order by Viega 90110. That number covers the 316 stainless MegaPress tee in 3/4 x 3/4 x 3/4 with press ends on all three openings.
