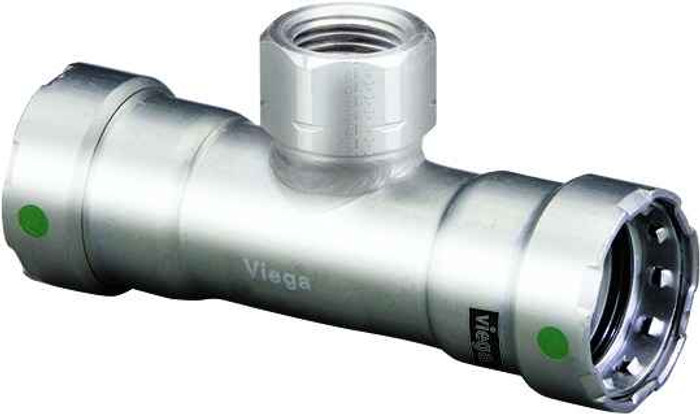

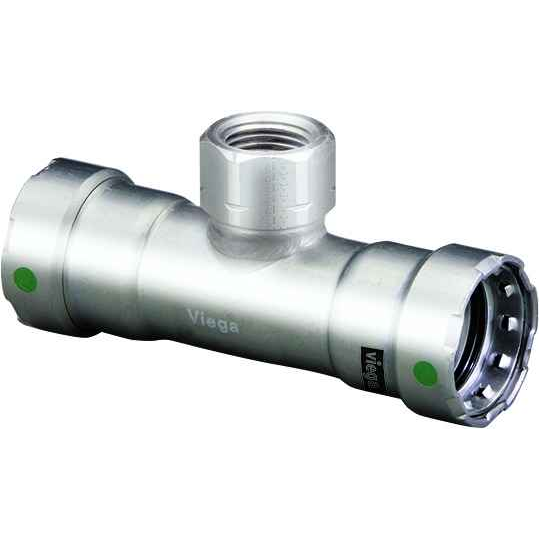

90185 Viega MegaPress tee Smart Connect technology 316 stainless steel, 3/4'' x 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3/4'' x 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.575"
- Product Height:
- 1.496"
- Product Weight:
- 0.551 lbs
- Product Width:
- 2.327"
- Product Material:
- 316 stainless steel
Viega 90185 – Frequently Asked Questions
1) Does the Viega 90185 MegaPress tee have a threaded branch or three press ends?
Two press ends and one threaded branch. The connection type on the 90185 is P1 x P2 x FPT, so the run is pressed on both ends and the branch takes female pipe thread. If you need a tee that presses on all three outlets, the 90185 is not it, but it's the fitting to use where you have to transition to a threaded nipple, gauge, valve or drain at the branch.
2) What pipe size does the Viega 90185 MegaPress tee take?
All three outlets are 3/4 inch: 3/4 x 3/4 x 3/4. The two press ends go on 3/4 inch pipe and the branch is 3/4 inch FPT. Overall the fitting runs 4.575 inches long, 2.327 inches wide and 1.496 inches high, which matters when you are fitting it into a tight joist bay or between existing hangers.
3) Is the Viega 90185 tee stainless or carbon steel, and where can I use it?
It's 316 stainless steel, the more corrosion-resistant of the two MegaPress families. That makes it the right choice on stainless pipe systems and in wet, washdown or chemically aggressive environments where a carbon steel press fitting would rust. Don't substitute a carbon steel MegaPress tee into a 316 stainless line.
4) What does Smart Connect technology do on a Viega MegaPress fitting?
Smart Connect is Viega's unpressed-connection feature: an unpressed joint will leak visibly during pressure testing so the installer can find it and press it. On a job with dozens of joints it's how you catch the one you missed before the wall closes up. The 90185 tee includes it.
5) Where is the Viega 90185 MegaPress tee manufactured?
Germany. For spec-driven and institutional jobs that require country of origin documentation on stainless piping components, the 90185 is listed as made in Germany.
