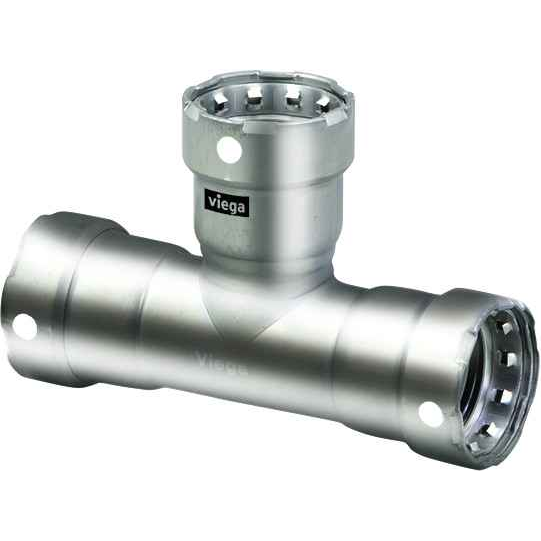

91605 Viega MegaPress tee Smart Connect technology 316 stainless steel, 3/4'' x 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3/4'' x 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.575"
- Product Height:
- 1.496"
- Product Weight:
- 0.58 lbs
- Product Width:
- 2.992"
- Product Material:
- 316 stainless steel
Viega 91605 – Frequently Asked Questions
1) Is the Viega 91605 tee stainless or carbon steel?
It is 316 stainless steel, not carbon. That matters on the job because a 316 fitting is what you use on stainless pipe runs and in corrosive or washdown environments, while the carbon steel MegaPress fittings are matched to black iron pipe.
2) What is Smart Connect on the Viega 91605 and why would an inspector care?
Smart Connect is Viega's feature that makes an unpressed connection leak visibly during pressure testing, so an missed joint shows itself on test instead of after the walls close. On a large press job that is the practical safeguard against one forgotten crimp.
3) How much clearance do I need to install the 3/4 inch MegaPress tee in a tight chase?
The fitting itself measures 4.575 inches long, 2.992 inches wide, and 1.496 inches high, and weighs 0.58 lbs. Plan clearance beyond that for the press jaw to wrap the end you are crimping, which is usually the limiting factor in a stud bay or ceiling space rather than the fitting body.
4) Which Viega part number do I order for a 3/4 inch stainless MegaPress tee?
Order Viega part number 91605. That is the 3/4 inch x 3/4 inch x 3/4 inch MegaPress tee in 316 stainless steel - one part number, no handing or finish options to specify.
5) Is the Viega 91605 MegaPress tee made in the USA?
It is made in Germany. If you are filling a government or institutional order with a domestic sourcing requirement, that country of origin is the detail that will get flagged, so check the spec language before you commit the submittal.
