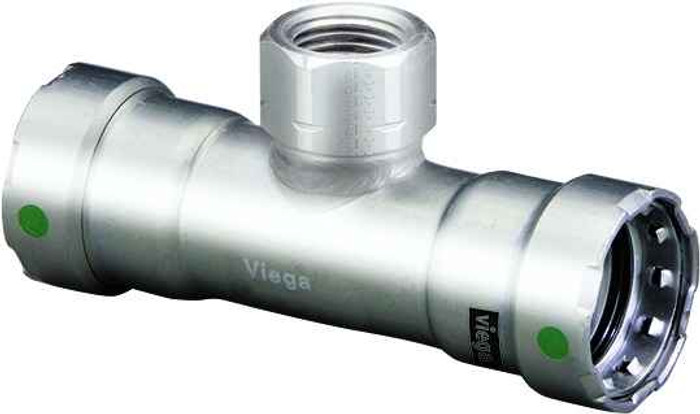

90210 Viega MegaPress tee Smart Connect technology 316 stainless steel, 1-1/2'' x 1-1/2'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/2'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.953"
- Product Height:
- 2.437"
- Product Weight:
- 1.719 lbs
- Product Width:
- 3.433"
- Product Material:
- 316 stainless steel
Viega 90210 – Frequently Asked Questions
1) What are the three outlets on the Viega MegaPress 90210 tee, and which one is threaded?
The 90210 is a reducing tee with two press ends and one female threaded branch: 1-1/2 inch press x 1-1/2 inch press x 1 inch FPT. So the run stays press-connected at 1-1/2 inch and the 1 inch branch takes male pipe thread, which is where you'd land a gauge, drain, sensor well or a threaded valve without cutting a press joint.
2) Is the Viega 90210 MegaPress tee carbon steel or stainless?
It is 316 stainless steel, not carbon steel. That matters when you're choosing between MegaPress lines: the stainless body is the one to use where the carbon steel version would be attacked, such as corrosive or wet service and stainless piping systems. Don't mix it into a run expecting a carbon steel fitting's appearance or price point.
3) Can I thread a 1 inch male nipple straight into the branch of the Viega 90210?
Yes. The branch is a 1 inch FPT female thread, so a 1 inch MPT nipple, valve or adapter threads directly in with the appropriate thread sealant. The two run ends are press only at 1-1/2 inch, so they need a press tool and the matching jaw rather than a threaded connection.
4) Does the Viega 90210 tee use Smart Connect, and what does that actually do on an install?
Yes, the 90210 MegaPress tee is a Smart Connect fitting. The feature exists so an unpressed connection leaks visibly during pressure testing, which lets you find a joint you skipped before the system is buried or insulated. It does not change the press procedure, and every joint still has to be pressed with the correct jaw.
5) How much room do I need to fit the 1-1/2 inch MegaPress stainless tee between hangers?
The fitting measures 6.953 inches long, 3.433 inches wide and 2.437 inches high, and weighs 1.719 lbs. Use the 6.953 inch length as your minimum clear run when you lay out cuts, and leave extra beyond that for the press tool jaw to close squarely around each end.
6) Is the Viega 90210 a full-size tee or does it reduce?
It reduces on the branch only. Both run connections are 1-1/2 inch and the branch drops to 1 inch, so you don't need a separate bushing or reducer at the takeoff. If you need a full 1-1/2 inch branch, this is the wrong fitting.
