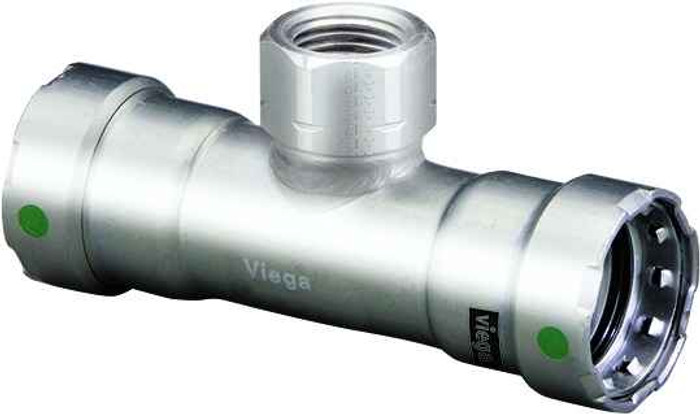

90225 Viega MegaPress tee Smart Connect technology 316 stainless steel, 2'' x 2'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.677"
- Product Height:
- 2.913"
- Product Weight:
- 2.222 lbs
- Product Width:
- 4.016"
- Product Material:
- 316 stainless steel
Viega 90225 – Frequently Asked Questions
1) What are the three outlet sizes and connection types on the Viega MegaPress 90225 tee?
The 90225 is a 2 inch x 2 inch x 1 inch reducing tee. The run ends are both press connections (P1 x P2) and the 1 inch branch is female pipe thread (FPT), so you press the two 2 inch run ends onto pipe and thread the branch takeoff in.
2) Can I use a MegaPress 316 stainless tee on carbon steel pipe runs, or is it only for stainless?
The 90225 tee is made from 316 stainless steel throughout. Stainless press fittings are specified for stainless and corrosion-sensitive service; matching fitting material to pipe material is what keeps a joint from galvanic trouble. If your run is black iron or galvanized carbon steel, specify the carbon steel MegaPress body instead of this 316 version.
3) Does the Viega 90225 tee have the Smart Connect feature, and what does it actually do on the job?
Yes. The 90225 MegaPress tee is built with Smart Connect technology, which lets an unpressed connection show itself during pressure testing so the installer can find and press it before the system is put into service. It is a leak-path indicator on an unpressed joint, not a sealing feature.
4) Should I use a press tee or a threaded tee for a 1 inch branch off a 2 inch stainless line?
The 90225 gives you both in one fitting. The 2 inch run is pressed, which is faster than threading or welding on a large line and takes no flame, while the 1 inch branch stays FPT so you can thread in a gauge, drop, valve or sensor without a press tool on the small takeoff. If you want the branch pressed as well, you need a full press x press x press tee, not this one.
5) What part number do I order for the Viega 2 x 2 x 1 stainless MegaPress tee with a threaded branch?
Order Viega part 90225. It is a single configuration, 316 stainless, 2 inch press x 2 inch press x 1 inch FPT, so there is no finish or size option to specify alongside it.
6) Is the Viega 90225 tee made in the USA?
No, the 90225 MegaPress stainless tee is made in Germany.
