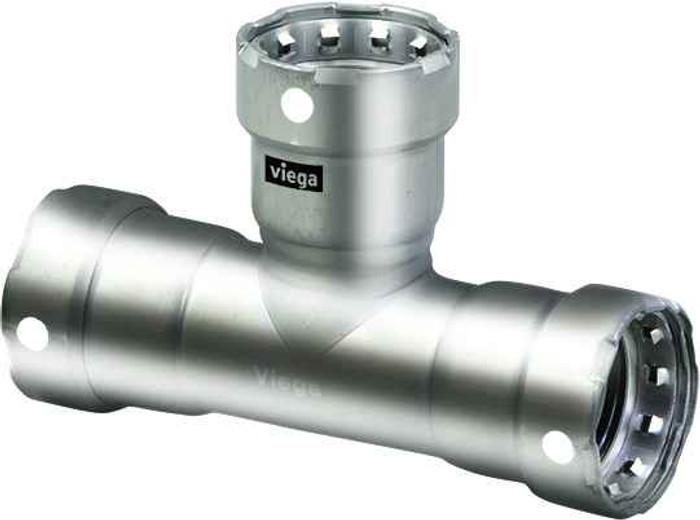

91620 Viega MegaPress tee Smart Connect technology 316 stainless steel, 2'' x 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.646"
- Product Height:
- 2.437"
- Product Weight:
- 2.526 lbs
- Product Width:
- 4.65"
- Product Material:
- 316 stainless steel
Viega 91620 – Frequently Asked Questions
1) What pipe size does the Viega 91620 MegaPress tee fit?
The Viega 91620 MegaPress tee is a 2 inch equal tee, 2" x 2" x 2" on all three outlets. Every connection is a press end (P1 x P2 x P3), so all three branches land on 2 inch pipe with no reducing option built in.
2) Is the Viega 91620 tee threaded or does it need a press tool?
All three ends are press connections, not threads. You press each joint with a press tool and the matching 2 inch MegaPress jaw or ring, so budget for the tool and jaws if you don't already run them. Nothing about this fitting is made up on site with pipe dope or a cut thread.
3) Will a 316 stainless MegaPress tee hold up in a corrosive or wash-down environment?
316 stainless steel is the body material here, which is the grade specifiers reach for where chlorides, humidity, or wash-down chemicals would pit a carbon steel or 304 fitting. For food plants, coastal mechanical rooms, and chemical-handling lines that's the reason to pay for the 316 version over the standard carbon steel MegaPress tee.
4) How much room do I need to fit the Viega 2 inch MegaPress tee into an existing run?
The fitting measures 7.646 inches long, 4.65 inches wide, and 2.437 inches high. Allow for that envelope plus tool clearance around each press end, since the jaw has to close fully square on the collar. In tight ceiling space the jaw swing, not the fitting, is usually what decides whether the joint can be made.
5) What does Smart Connect technology on the Viega MegaPress tee actually do for me?
Smart Connect is Viega's unpressed-joint feature: an unpressed connection leaks deliberately during pressure testing so you find the missed joint on the test instead of after the ceiling closes. On a three-outlet 2 inch tee that's three joints to catch, which is the main reason crews running large-diameter press want it.
6) Can I use the 2 inch MegaPress 316 tee on black iron pipe already in the building?
MegaPress is the Viega system built for IPS steel pipe, and this 91620 tee presses onto 2 inch pipe at all three outlets. Match the pipe's nominal size and wall to what the MegaPress 316 system is rated for on your job before committing, and use the stainless version where the pipe or the environment calls for a corrosion-resistant fitting.
7) Where is the Viega 91620 MegaPress tee manufactured?
Made in Germany. That's the detail procurement teams on government and institutional jobs usually need for country-of-origin documentation, so it's worth noting on the submittal.
