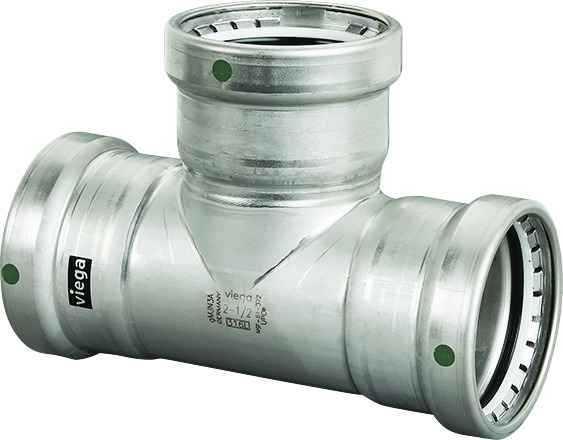

90610 Viega MegaPress tee Smart Connect technology 316 stainless steel, 4'' x 4'' x 2-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 4'' x 4'' x 2-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 11.102"
- Product Height:
- 5.193"
- Product Weight:
- 6.387 lbs
- Product Width:
- 7.476"
- Product Material:
- 316 stainless steel
Viega 90610 – Frequently Asked Questions
1) Can I use the Viega 90610 stainless MegaPress tee on carbon steel pipe?
No. The 90610 is a 316 stainless steel fitting, part of the MegaPress stainless line, and it is matched to stainless pipe. For black or carbon steel pipe you need the carbon steel MegaPress fittings instead, since mixing a stainless press fitting onto carbon steel pipe sets up galvanic corrosion at the joint.
2) Are all three ends of the Viega 90610 press connections, or is one threaded?
All three ends are press. The connection type is P1 x P2 x P3, meaning every outlet is a MegaPress press socket, so the tee is installed with a press tool and jaws rather than threading or welding.
3) Is the Viega MegaPress 90610 tee suitable for corrosive or wash-down service?
It's built from 316 stainless steel, the grade specified where chloride exposure and corrosion resistance matter, such as coastal mechanical rooms, food and beverage wash-down areas, and chemical or process piping.
4) What does Smart Connect technology do on the Viega 90610 tee?
Smart Connect is Viega's unpressed-connection feature. The sealing element is shaped so an unpressed joint leaks intentionally during pressure testing, which is how an installer or inspector finds a missed press on a run before the ceiling closes up. The 90610 carries it on all three press ends.
5) Do I need anything besides the tee itself to make up the joints?
The 90610 ships as the fitting with its press sockets. To make the connections you supply the press tool with the correct jaws or press rings for 4 inch and 2-1/2 inch stainless, since all three ends are press type (P1 x P2 x P3). Pipe ends need to be cut square, deburred, and marked to insertion depth before pressing.
