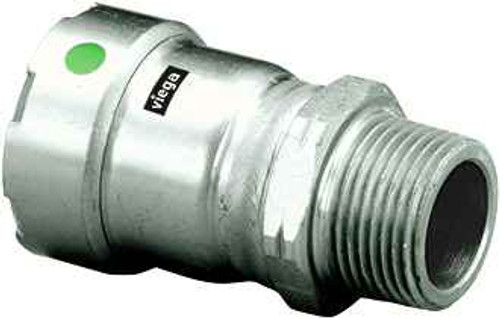

91260 Viega MegaPress adapter Smart Connect technology 316 stainless steel, 1-1/2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Adapter
- Product Length:
- 3.319"
- Product Height:
- 2.165"
- Product Weight:
- 0.89 lbs
- Product Width:
- 2.362"
- Product Material:
- 316 stainless steel
Viega 91260 – Frequently Asked Questions
1) What connections does the Viega MegaPress 91260 adapter have?
The Viega 91260 MegaPress adapter is a press by female pipe thread fitting (P x FPT) in 1-1/2 inch by 1-1/2 inch. One end presses onto 1-1/2 inch pipe with a MegaPress tool and jaw; the other accepts 1-1/2 inch male NPT thread, so it is the transition point where a pressed run picks up threaded equipment, valves, or unions.
2) Is the Viega 91260 MegaPress fitting stainless or carbon steel?
It is 316 stainless steel, body and all. That matters where a carbon steel MegaPress fitting would corrode, so it is the version specified for wet, washdown, coastal, or chemically aggressive service rather than dry black iron gas or standard heating lines.
3) How much room do I need to install a 1-1/2 inch MegaPress stainless adapter in a tight chase?
The 91260 adapter measures 3.319 inches long, 2.362 inches wide and 2.165 inches high, and weighs 0.89 lbs. Allow for that envelope plus clearance to swing the press jaw around the fitting, which needs more space than the fitting body itself.
4) What does Smart Connect mean on this Viega MegaPress adapter?
Smart Connect is Viega's unpressed-connection feature: a fitting that was left unpressed will leak visibly during pressure testing, so the installer finds the miss at test rather than after the walls close. It does not change how the 91260 is pressed, only how an error shows up.
5) Can I use the 91260 to thread a stainless press line into a threaded valve?
Yes, that is what it is for. The female NPT end takes the male thread of a 1-1/2 inch valve, nipple, gauge port, or piece of equipment, and the press end joins the 1-1/2 inch stainless run. Thread sealant or tape goes on the threaded joint as normal; the press joint takes none.
