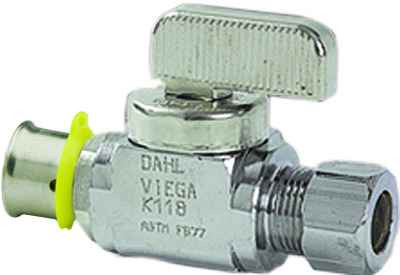

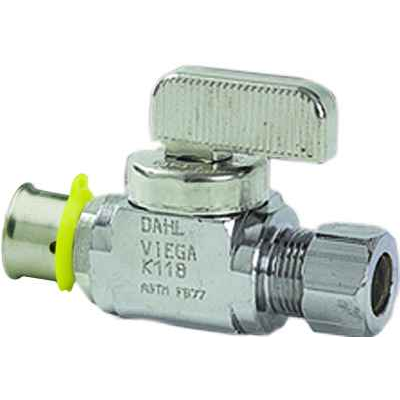

94031 Viega PureFlow Press stop valve Straight Zero Lead Chrome-plated brass, 1/2'' x 1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x CTS
- Material Type:
- Chrome-Plated Brass
- Product Dimension:
- 1/2'' x 1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Valves
- Product Type:
- Valve
- Product Length:
- 2.512"
- Product Height:
- 1.622"
- Product Weight:
- 0.274 lbs
- Product Width:
- 0.839"
- Product Material:
- Chrome-plated brass
Viega 94031 – Frequently Asked Questions
1) What connections does the Viega 94031 PureFlow stop valve have on each end?
The Viega 94031 is a P x CTS valve: the inlet is a PureFlow press end sized for 1/2 inch PEX tubing, and the outlet is a 1/4 inch CTS compression-style copper tube size stub for the fixture supply riser. So it goes straight onto 1/2 inch PEX with a press tool and feeds a standard 1/4 inch faucet or toilet supply line.
2) Can I use the Viega 94031 press stop valve on copper pipe instead of PEX?
No. The press inlet on the 94031 is a Viega PureFlow press end, which is for PEX tubing, not copper. If the stub-out in the wall is copper, you need a copper press or solder angle/straight stop instead. Check what is coming out of the wall before you order.
3) Is the Viega 94031 a straight stop or an angle stop?
Straight. The 94031 runs in line with the tubing, so it suits a stub-out coming horizontally out of the wall where the riser continues in the same direction, or a floor stub feeding straight up. If the supply comes out of the wall and the riser has to turn up to the fixture, you want an angle stop instead.
4) Do I need a special tool to install the Viega 94031, or can it be done with a wrench?
The inlet is a press connection, so it requires a press tool with the correct PureFlow jaw for 1/2 inch PEX. There is no crimp ring to tighten and no thread to wrench. The 1/4 inch CTS outlet is the only end you make up by hand with the supply riser nut.
5) Is the Viega 94031 stop valve lead free for potable water?
It is built as a Zero Lead chrome-plated brass valve, which is the alloy specification used for potable water supply stops. The chrome plating also means it can sit exposed under a lavatory without a trim escutcheon looking out of place.
6) How much clearance do I need behind a toilet or vanity for this Viega press stop?
The 94031 measures 2.512 inches long, 1.622 inches high and 0.839 inches wide, and it weighs 0.274 lbs. Tight bodies like that matter on a press valve, because you also need room to get the press jaw around the PureFlow fitting before the wall or cabinet is closed in.
7) For a multi-family rough-in, is a press stop valve worth it over a crimp fitting and a separate stop?
On repeat work it saves a joint. The 94031 presses directly onto the 1/2 inch PEX, so you get the shutoff and the tubing connection in one body instead of a crimped adapter plus a threaded stop, and there is nothing to re-torque later. The trade-off is the press tool and PureFlow jaws, which only pays back if your crews are already pressing Viega PEX.
