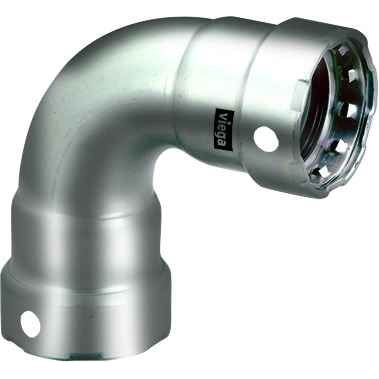

95015 Viega MegaPress 90° elbow Smart Connect technology 304 stainless steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.961"
- Product Height:
- 1.78"
- Product Weight:
- 0.789 lbs
- Product Width:
- 3.961"
- Product Material:
- 304 stainless steel
Viega 95015 – Frequently Asked Questions
1) Is the Viega 95015 elbow threaded or does it press?
Press on both ends. The connection is listed as P1 x P2, meaning two press sockets and no threads, so it goes on with a MegaPress jaw and press tool rather than a pipe threader. If you need to transition to a threaded nipple or valve, use a press by thread adapter, not this elbow.
2) What does Smart Connect do on this Viega elbow?
Smart Connect is Viega's unpressed-connection feature built into the 95015 elbow. During pressure testing an unpressed joint leaks in a controlled way so the installer finds it before the system is closed up, rather than discovering a missed press after the ceiling goes back. It is a commissioning safeguard, not a substitute for pressing every joint.
3) Is a 90 degree elbow the right choice, or should I use a 45?
Use the 95015 where the run has to make a hard square turn, such as coming off a riser into a branch or turning at a wall corner. Two 45 degree fittings give you a gentler sweep with less turbulence and pressure drop, which contractors often prefer on longer pumped runs. The 95015 is the 1 inch press-to-press 90, so it is the fitting for the square corner, not the sweeping one.
