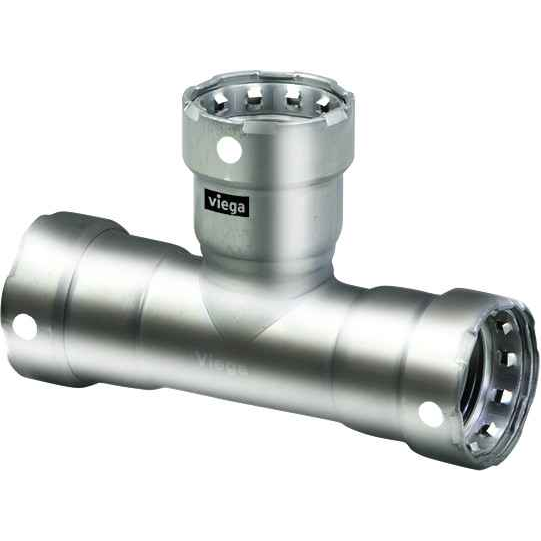

95145 Viega MegaPress tee Smart Connect technology 304 stainless steel, 1-1/2'' x 1-1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.953"
- Product Height:
- 2.437"
- Product Weight:
- 1.532 lbs
- Product Width:
- 3.752"
- Product Material:
- 304 stainless steel
Viega 95145 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPress 95145 tee connect?
The 95145 MegaPress tee is a reducing tee sized 1-1/2 inch x 1-1/2 inch x 1/2 inch, so the run stays at 1-1/2 inch and the branch drops to 1/2 inch. All three outlets are press ends (P1 x P2 x P3), so there is no threading or welding at any of the three connections.
2) Is the 95145 MegaPress tee carbon steel or stainless?
It is 304 stainless steel, not carbon steel. That matters if you are pressing into a stainless system or a job where the carbon steel MegaPress body would be the wrong material for the line. Match the fitting material to the pipe you are pressing onto.
3) How much clearance do I need to install a 1-1/2 inch MegaPress stainless tee in a tight ceiling or chase?
Plan around the fitting envelope: 6.953 inches long, 3.752 inches wide and 2.437 inches high for the 95145 tee. On top of that you need room to get the press jaw fully around each of the three press ends and rotate it, which is usually the limiting factor in a joist bay or wall cavity rather than the fitting itself.
4) What does Smart Connect do on a MegaPress fitting, and why does it matter on an unpressed joint?
Smart Connect is Viega's feature that leaves an unpressed connection deliberately leaky when the system is pressure tested, so a joint you missed shows itself during test rather than after the ceiling is closed. On a three-outlet fitting like the 95145 that is worth knowing, since it is easy to press two ends and walk away from the 1/2 inch branch.
5) Do I need a separate press tool jaw for the 1/2 inch branch on this tee?
Yes. Press jaws are size specific, so you need a 1-1/2 inch jaw or ring for the two run ends and a 1/2 inch jaw for the branch on the 95145. Crews pressing a reducing tee with only the large jaw on the truck end up leaving the branch unpressed.
