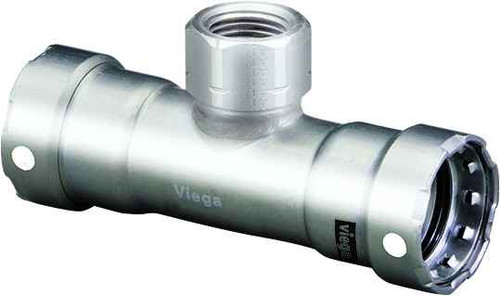

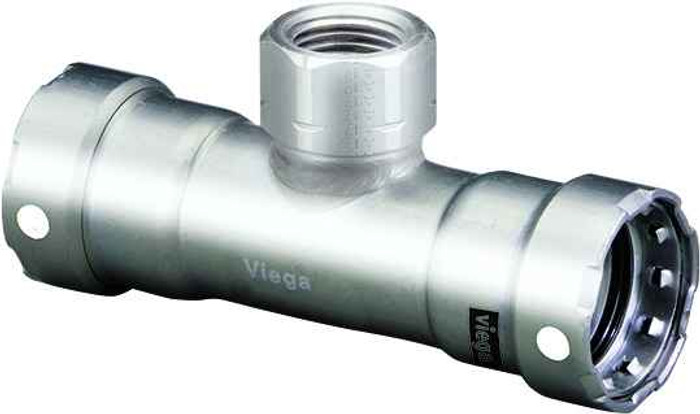

95210 Viega MegaPress tee Smart Connect technology 304 stainless steel, 1-1/2'' x 1-1/2'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/2'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.953"
- Product Height:
- 2.437"
- Product Weight:
- 1.675 lbs
- Product Width:
- 3.433"
- Product Material:
- 304 stainless steel
Viega 95210 – Frequently Asked Questions
1) What are the three connections on the Viega MegaPress 95210 tee?
The 95210 is a reducing tee with two press ends and one threaded outlet: 1-1/2 inch press run x 1-1/2 inch press run x 1 inch female pipe thread. Viega lists the connection pattern as P1 x P2 x FPT, so the two 1-1/2 inch ends press onto Schedule 10 through Schedule 40 black iron pipe and the 1 inch branch takes a male-threaded nipple, valve, or gauge adapter.
2) Is the 95210 MegaPress tee stainless or carbon steel, and what lines can I run it on?
It's 304 stainless steel, not the carbon steel body used on standard MegaPress. The stainless body is what you want where the media or the environment would attack carbon steel, and it keeps the joint from being the weak point on a line of threaded or grooved iron pipe. The fitting is made in Germany.
3) What does Smart Connect do on a MegaPress fitting, and does it mean I can skip pressing?
No, you still have to press every joint. Smart Connect is a deliberate feature in the sealing element that lets an unpressed connection weep under test pressure so you can find it before the system is charged. It is a verification aid, not a substitute for the press tool and the correct 1-1/2 inch and 1 inch jaws or rings.
4) Can I use a MegaPress fitting instead of welding or threading on an existing black iron line?
That is the point of the system. A press tee like the 95210 joins onto existing iron pipe cold, with no flame, no cutting oil, and no pipe threading on the 1-1/2 inch run, which is what gets it into occupied buildings where a hot work permit is a problem. The tradeoff is that you need the MegaPress tool and the matching jaws on site; if you only have a threader, a threaded tee is the simpler call for a one-off repair.
