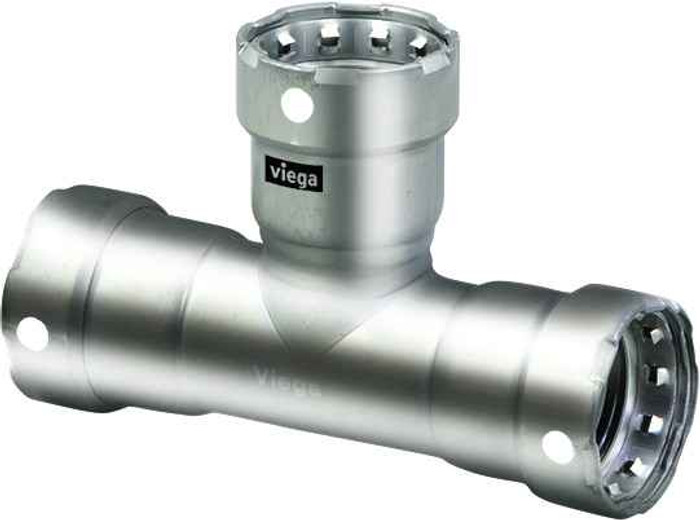

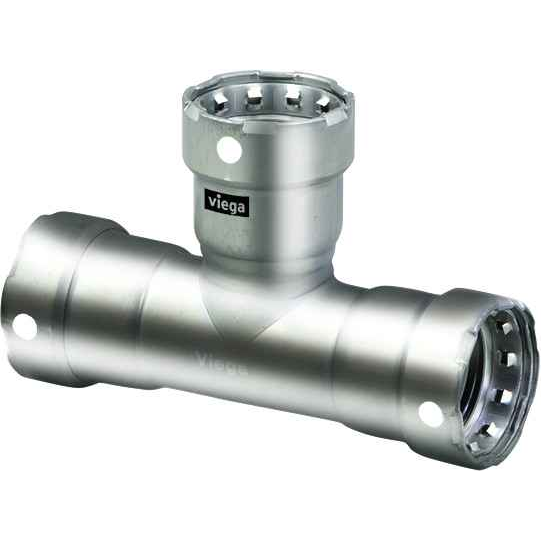

95165 Viega MegaPress tee Smart Connect technology 304 stainless steel, 2'' x 2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 2'' x 2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.646"
- Product Height:
- 2.894"
- Product Weight:
- 2.094 lbs
- Product Width:
- 4.382"
- Product Material:
- 304 stainless steel
Viega 95165 – Frequently Asked Questions
1) What pipe sizes does the Viega 95165 MegaPress tee connect?
The Viega MegaPress tee, model 95165, is a 2 inch x 2 inch x 3/4 inch reducing tee. The run is 2 inch on both ends with a 3/4 inch branch outlet, so it taps a 3/4 inch takeoff off a 2 inch main.
2) Are all three ends of the Viega 95165 tee press connections, or is one threaded?
All three ends are press. The connection type is listed as P1 x P2 x P3, meaning press on both 2 inch run ends and on the 3/4 inch branch. There is no thread or socket on this fitting, so you press it with a MegaPress tool and jaw set sized for each outlet.
3) Is this MegaPress tee stainless or carbon steel, and does that matter for my piping system?
It is 304 stainless steel. That matters: the stainless MegaPress line is the one used where carbon steel fittings would corrode or where the media calls for a stainless wetted path, while carbon steel MegaPress is the standard choice on black iron gas and hydronic runs. If your drawing calls out a carbon steel fitting, this 2 x 2 x 3/4 stainless tee is not the matching part.
4) Can I use this tee to add a 3/4 inch takeoff to existing 2 inch pipe without welding or threading?
That is exactly what it does. The 2 x 2 x 3/4 MegaPress tee joins to the cut ends of the 2 inch run and gives a 3/4 inch branch, all by cold press, so there is no hot work, no cutting oil, and no thread machine on site. Useful in occupied buildings where a hot work permit is the holdup.
5) What is Smart Connect on a Viega MegaPress fitting and why would an installer care?
Smart Connect is the feature Viega builds into the fitting so an unpressed connection leaks visibly during pressure test rather than staying tight and failing later. On a 2 x 2 x 3/4 branch tee with three separate presses to make, that is the practical value: if one of the three gets missed on a rack, it shows up at test instead of inside a finished ceiling.
6) How much room do I need to fit a 2 inch MegaPress tee in a tight ceiling or chase?
Plan around a fitting that measures 7.646 inches long, 4.382 inches wide and 2.894 inches high. The 2 inch press ends need jaw clearance beyond that envelope, so in a congested chase measure for the tool ring as well as the fitting body.
7) Do I need a different press jaw for the 3/4 inch branch on this 2 inch tee?
Yes. Each outlet is pressed at its own size, so the two 2 inch ends take 2 inch MegaPressG-style large-diameter tooling (press ring and actuator) while the 3/4 inch branch takes a 3/4 inch jaw. Crews pressing a 2 x 2 x 3/4 tee need both sizes on the lift.
8) Is the Viega 95165 a sealed assembly or do I order the seal separately?
It ships as a complete press tee with the sealing element already installed in each of the three press sockets. Nothing additional is ordered to make the joint; you cut, deburr, mark insertion depth, and press.
