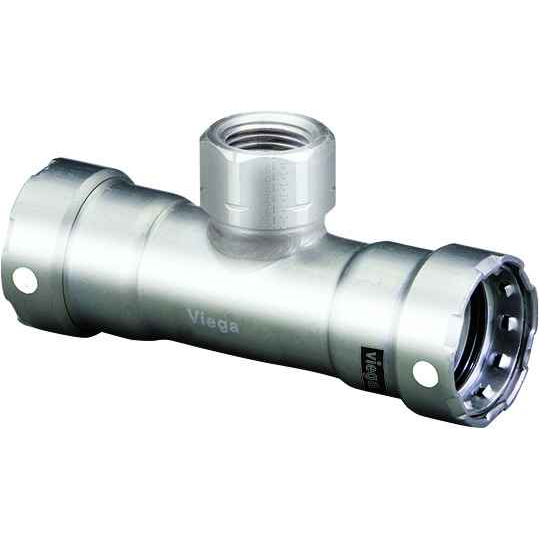

95220 Viega MegaPress tee Smart Connect technology 304 stainless steel, 2'' x 2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 2'' x 2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.677"
- Product Height:
- 2.913"
- Product Weight:
- 2.081 lbs
- Product Width:
- 3.74"
- Product Material:
- 304 stainless steel
Viega 95220 – Frequently Asked Questions
1) What are the connections on the Viega 95220 MegaPress tee?
The 95220 runs 2 inch press on both run ends and a 3/4 inch female threaded branch, listed as P1 x P2 x FPT. So the run gets pressed onto 2 inch pipe with a MegaPress jaw, and the branch takes a male threaded 3/4 inch nipple, valve, gauge or sensor fitting instead of a press connection.
2) Is the 95220 a reducing tee or a full 2 inch tee?
It is a reducing tee: 2 inch on the run, 2 inch on the other run end, and 3/4 inch on the branch. If you need a 2 inch branch off a 2 inch line, this is the wrong fitting, you want a full-size 2 x 2 x 2 MegaPress stainless tee.
3) Is the Viega 95220 tee stainless or carbon steel, and what pipe is it meant for?
It is 304 stainless steel. MegaPress stainless fittings are the ones used on stainless pipe systems rather than the carbon steel (black iron) MegaPress line, so match the fitting body to the pipe material you are joining to avoid a dissimilar metal joint.
4) What does Smart Connect mean on this Viega MegaPress tee?
Smart Connect is Viega's feature that lets a fitting weep at the seal if it has not been pressed, so during pressure test an unpressed joint shows itself instead of hiding until the system is in service. It is a leak-detection aid, not a substitute for pressing every connection with the correct 2 inch MegaPress jaw.
5) What is the Viega part number and weight for the 2 x 2 x 3/4 MegaPress stainless tee with threaded branch?
Order it as Viega model 95220. It weighs 2.081 lbs and is made in Germany, which matters if you are logging country of origin on a government or institutional submittal.
