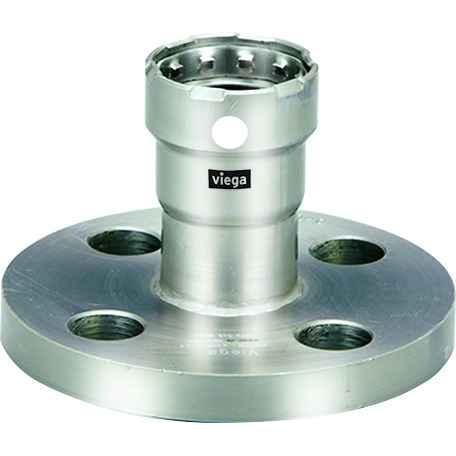

95455 Viega MegaPress flange Smart Connect technology 304 stainless steel, 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 5.787"
- Product Height:
- 3.445"
- Product Weight:
- 3.65 lbs
- Product Width:
- 5.787"
- Product Material:
- 304 stainless steel
Viega 95455 – Frequently Asked Questions
1) Can I use the Viega 95455 MegaPress flange to bolt stainless pipe to a pump or valve?
That's the point of it. The flange gives you a bolted, breakable joint at the end of a 1-1/2 inch MegaPress run, so pumps, valves, and equipment can be unbolted for service without cutting pipe. Gasket and bolts are not part of the fitting, so pick those to match the mating flange's drilling and pressure class.
2) Do I need a special tool to install the Viega 95455 MegaPress fitting?
Yes. MegaPress is a press-connect fitting, not threaded or welded, so it needs a press tool with the matching MegaPress jaw or ring for 1-1/2 inch. No tool or jaw is supplied with the fitting itself, so order that separately if you don't already run press on your crew.
3) Is the Viega 95455 MegaPress fitting stainless or carbon steel?
It's 304 stainless steel, body and all, and made in Germany. That matters if you're running a system where carbon steel press fittings would corrode or where the spec calls for stainless throughout.
4) What is Smart Connect technology on the Viega 95455 and why does it matter on a jobsite?
Smart Connect is Viega's feature that leaves an unpressed connection deliberately leaking during pressure testing, so an installer can spot a joint that was missed before the system is put into service. On a large run of MegaPress joints that is the difference between finding a miss at test and finding it in a finished ceiling.
5) How much clearance do I need around a 1-1/2 inch Viega MegaPress flange?
The fitting measures 5.787 inches in length and width with a height of 3.445 inches, and it weighs 3.65 lbs. Add the depth of the press jaw on top of that when you're figuring clearance to a wall, joist, or an adjacent pipe run, since the tool has to come in square on the fitting.
