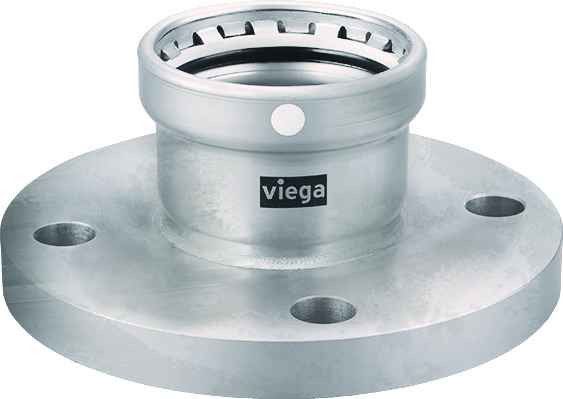

95720 Viega MegaPress flange Smart Connect technology 304 stainless steel, 2-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 2-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.126"
- Product Height:
- 3.366"
- Product Weight:
- 8.276 lbs
- Product Width:
- 7.126"
- Product Material:
- 304 stainless steel
Viega 95720 – Frequently Asked Questions
1) What size pipe does the Viega 95720 MegaPress flange connect to?
The Viega 95720 MegaPress flange is a 2-1/2 inch fitting, so it presses onto 2-1/2 inch pipe. There is one size on this model number, 95720, so there is nothing to select when ordering.
2) Can I bolt a MegaPress flange straight to a pump or butterfly valve?
That is what the flange end is for. One side presses onto 2-1/2 inch pipe, the other is a flanged face you bolt to mating flanged equipment. Confirm the mating flange drilling and class on the equipment side, and order gasket and bolt set separately, since they are not part of the fitting.
3) Is the Viega 95720 MegaPress flange stainless steel or carbon steel?
It is 304 stainless steel, body and all. That matters if you are running a system where carbon steel press fittings would be the wrong call on corrosion grounds. The fitting is made in Germany.
4) What does Smart Connect technology on a MegaPress fitting actually do for me on the job?
Smart Connect is Viega's unpressed-connection feature: an unpressed joint will leak visibly during pressure testing so you can find it and press it, instead of discovering a missed connection after the walls close up. On a 2-1/2 inch stainless flange like the 95720, that is the difference between a test-day fix and a callback.
5) When should I press a flange adapter instead of threading or welding the transition to equipment?
A pressed flange like the 95720 makes sense when you want no hot work and no thread cutting on 2-1/2 inch stainless, and you still need a bolted, breakable connection at a pump, valve, or strainer. Threading large stainless is slow and welding needs a hot work permit and a qualified welder; pressing is a cold, repeatable joint. If the connection never has to come apart, a welded transition is still the lower-cost route on material.
How fast can I get the Viega 95720 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Viega 95720 come with a warranty?
Absolutely. The Viega 95720 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Viega 95720?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
